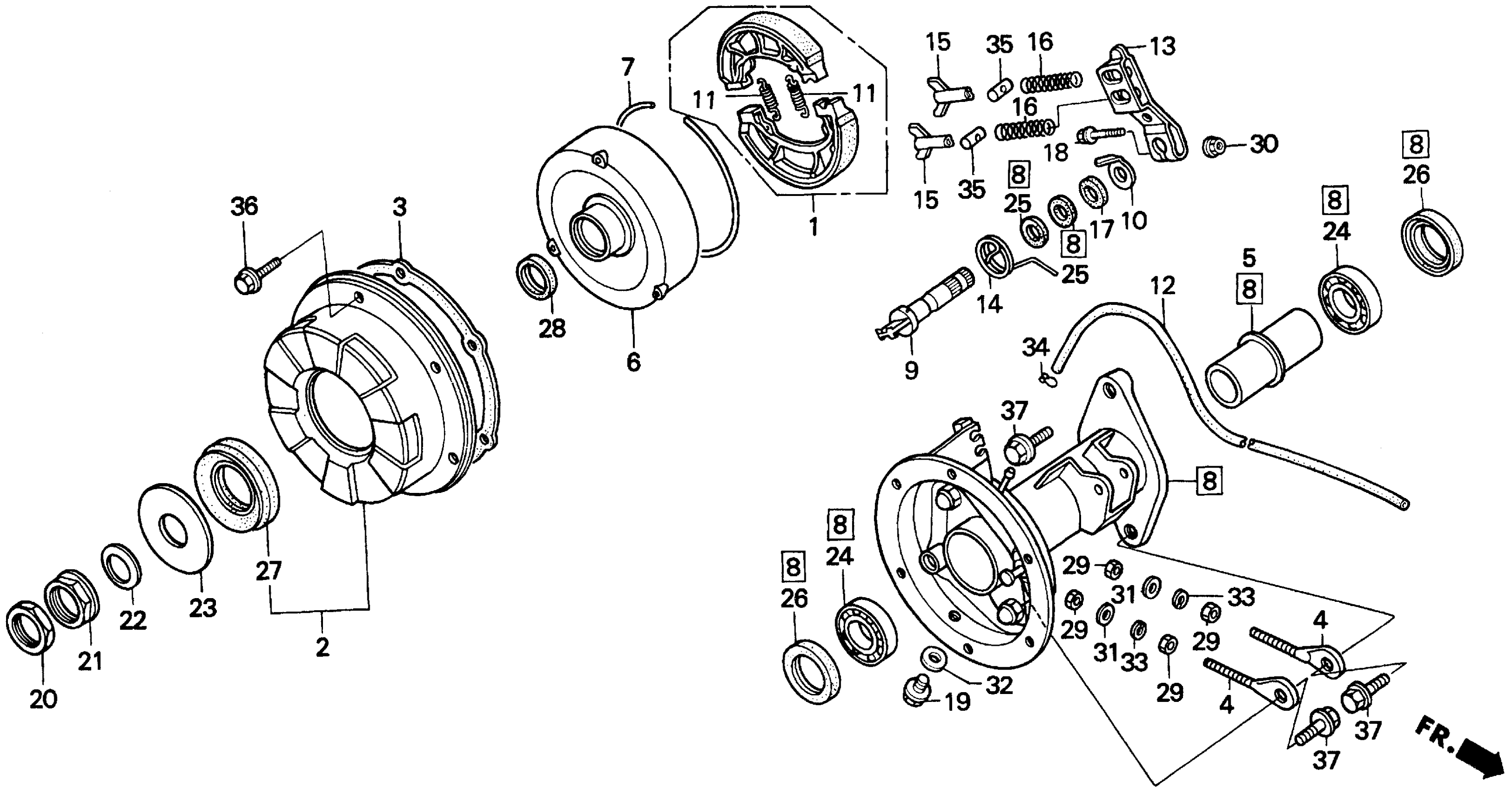

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 REAR BRAKE DRUM Diagram

#

Description
Price

1

SHOE SET, BRAKE This part replaces 06430-HF1-911.

06430-HF7-A30

$32.48

1

SHOE SET, BRAKE (JB)

06430-HF7-A30

$32.48

1

SHOE SET, BRAKE This part replaces 06430-HF7-J20.

06430-HF7-A30

$32.48

1

SHOE SET, BRAKE This part replaces 06430-HF7-000.

06430-HF7-A30

$32.48

2

COVER ASSY., DRUM

40520-HF1-670

$87.00

3

GASKET, BRAKE COVER (NOT AVAILABLE)

40539-968-000

Unavailable

4

ADJUSTER, CHAIN

40543-HB3-000

$10.56

5

COLLAR, RR. AXLE CENTER (NOT AVAILABLE)

42621-HF1-670

Unavailable

6

DRUM, RR. BRAKE (NOT AVAILABLE)

42622-HF1-670

Unavailable

7

RING, DAMPER

42624-HB3-000

$18.51

8

PANEL SUB-ASSY., RR. BRAKE

43010-HF1-630

Unavailable

9

CAM, RR. BRAKE (NOT AVAILABLE)

43141-HF1-670

Unavailable

10

INDICATOR, RR. BRAKE

43145-HB3-000

$5.31

11

SPRING, BRAKE SHOE

43151-329-000

$2.75

12

TUBE, BRAKE BREATHER

43155-HF1-670

Unavailable

13

ARM, RR. BRAKE

43410-HF1-670

$27.50

14

SPRING, RR. BRAKE ARM RETURN

43413-HF1-670

$6.28

15

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

15

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$9.78

16

SPRING, RR. BRAKE ROD (NA USE ALT:95014-73100)

43467-HA0-000

Unavailable

17

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

18

BOLT, FLANGE (6X30)

90112-KV8-920

$6.25

19

BOLT, DRAIN PLUG (12MM)

90131-HF1-670

$4.64

20

NUT, RR. AXLE This part replaces 90307-HC4-000.

90307-HM5-930

$3.40

20

NUT, RR. AXLE

90307-HM5-930

$3.40

21

NUT A, RR. AXLE This part replaces 90308-HC4-000.

90308-HM5-930

$3.83

21

NUT A, RR. AXLE

90308-HM5-930

$3.83

22

WASHER, TAPER

90481-HC4-000

$7.70

23

WASHER (32X86X1.5)

90501-HB3-000

$26.23

24

BEARING, RADIAL BALL (6007)

91054-HC4-003

$52.60

25

DUST SEAL (14X20X4) (NOK)

91208-HF7-005

$5.80

26

DUST SEAL (44X62X9) This part replaces 91252-HB3-003.

91252-HM5-630

$16.69

26

DUST SEAL B (44X62X9)

91252-HM5-630

$16.69

27

DUST SEAL (45X76X19)

91253-HC4-003

$15.86

28

RING, SEAL

91351-HB3-004

$3.78

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

29

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

29

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

29

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

30

NUT, FLANGE (6MM)

94050-06000

$1.49

31

WASHER, PLAIN (8MM)

94101-08800

$1.93

32

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

33

WASHER, SPRING (8MM)

94111-08800

$1.49

34

CLIP, TUBE (B6.5)

95002-02650

$1.49

35

JOINT B, BRAKE ARM

95015-32001

$1.49

36

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

37

BOLT, FLANGE (12X25)

95701-12025-08

$3.01
