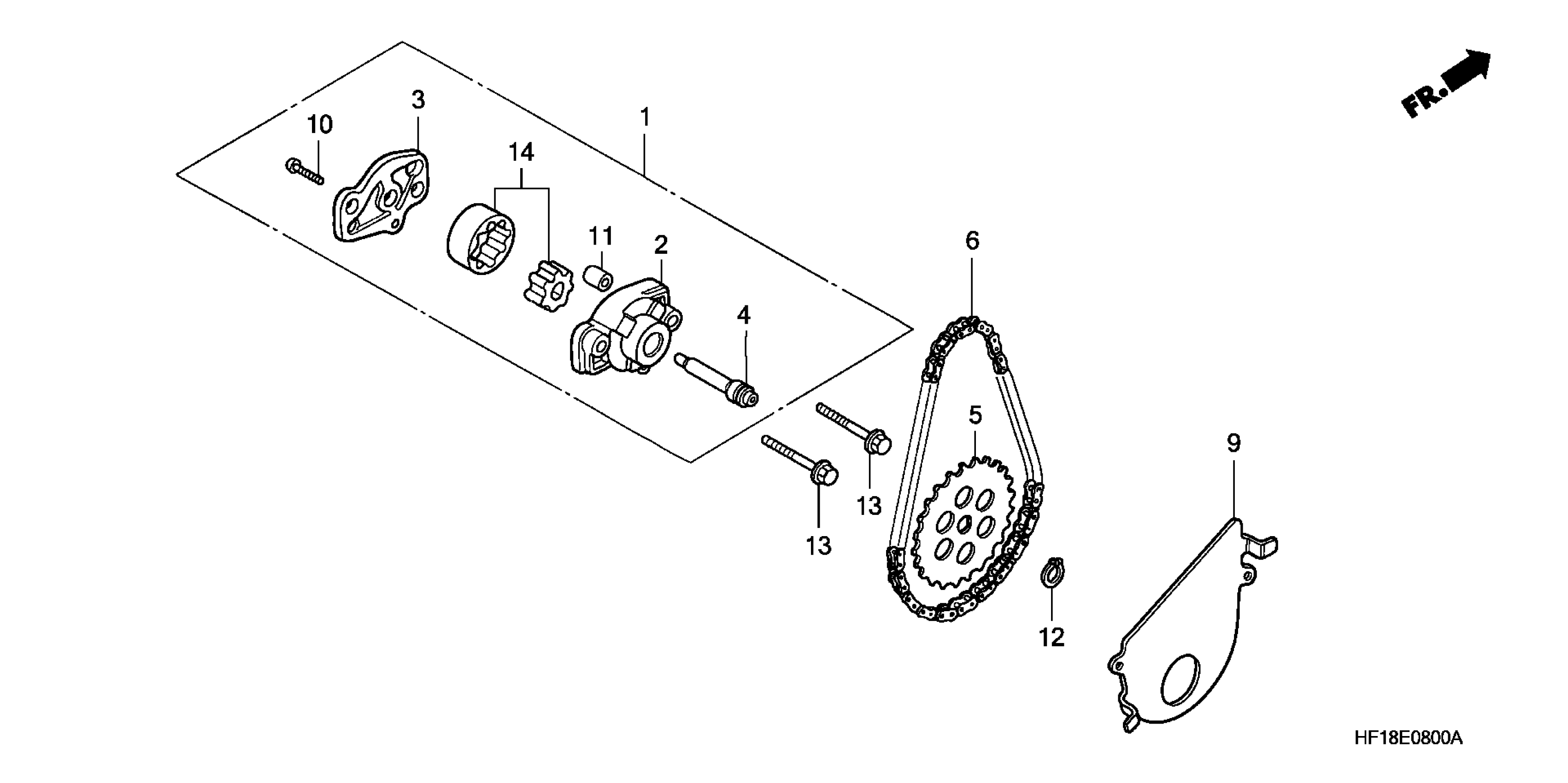

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 OIL PUMP Diagram

PUMP ASSY., OIL (NOT AVAILABLE)

15100-HB3-840

Unavailable

BODY, OIL PUMP

15102-HB3-840

Unavailable

PLATE, OIL PUMP

15116-HB5-000

Unavailable

SHAFT, OIL PUMP

15132-HB3-000

Unavailable

SPROCKET, OIL PUMP DRIVEN (28T) (NOT AVAILABLE)

15133-KT2-000

Unavailable

CHAIN, OIL PUMP

15141-HB3-000

Unavailable

ROTOR SET, OIL PUMP This part replaces 15331-958-000.

15021-958-000

$35.25

ROTOR SET, OIL PUMP This part replaces 15332-958-000.

15021-958-000

$35.25

SEPARATOR, OIL (NOT AVAILABLE)

15711-HB3-000

Unavailable

SCREW, PAN (3X12)

93500-03012-0A

$1.49

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

ROTOR SET, OIL PUMP

15021-958-000

$35.25
