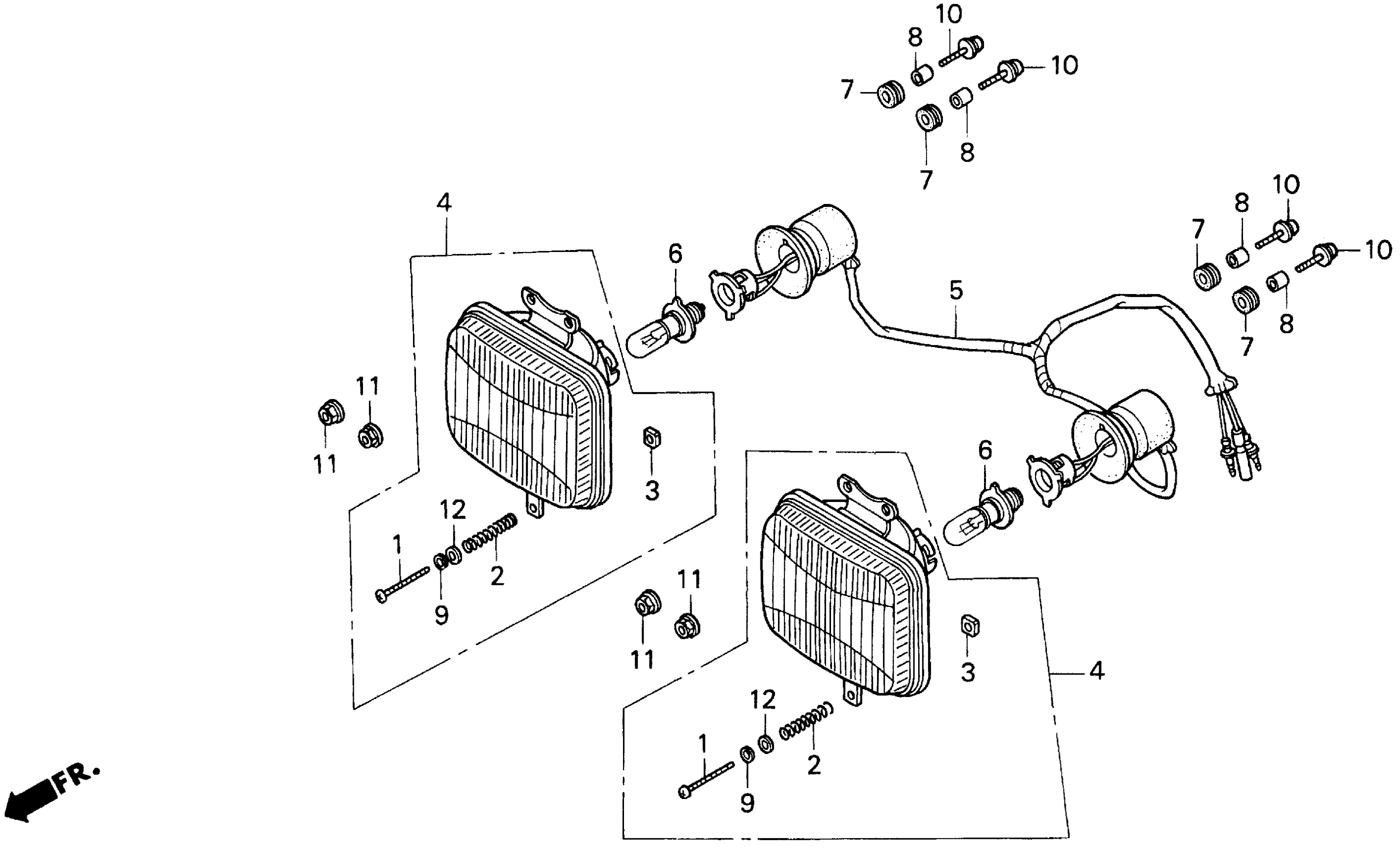

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 HEADLIGHT Diagram

#

Description

Price

1

SCREW, BEAM ADJUSTING

33103-KF0-670

$4.24

2

SPRING, HEADLIGHT BEAM ADJUSTING

33107-246-003

$2.23

3

NUT, BEAM ADJUSTING (STANLEY)

33117-KA2-003

$1.94

4

HEADLIGHT UNIT

33120-HF1-670

$72.80

5

SOCKET, HEADLIGHT (NOT AVAILABLE) This part replaces 33130-HF1-770.

33130-HF1-880

Unavailable

6

BULB (12V25/25W) (STANLEY) This part replaces 34901-066-003.

34901-706-000

$5.08

6

BULB (12V25/25W) (STANLEY)

34901-706-000

$5.08

7

GROMMET, SIDE COVER

50142-HM5-670

$12.26

8

COLLAR, HEADLIGHT MOUNTING

61105-HM5-730

$1.93

9

WASHER, BEAM ADJUSTING

90286-147-670

$2.39

10

SCREW-WASHER (4X18)

93894-04018-08

$1.49

11

NUT, FLANGE (4MM)

94050-04080

$1.49

12

WASHER, PLAIN (3MM)

94103-03800

$1.49
