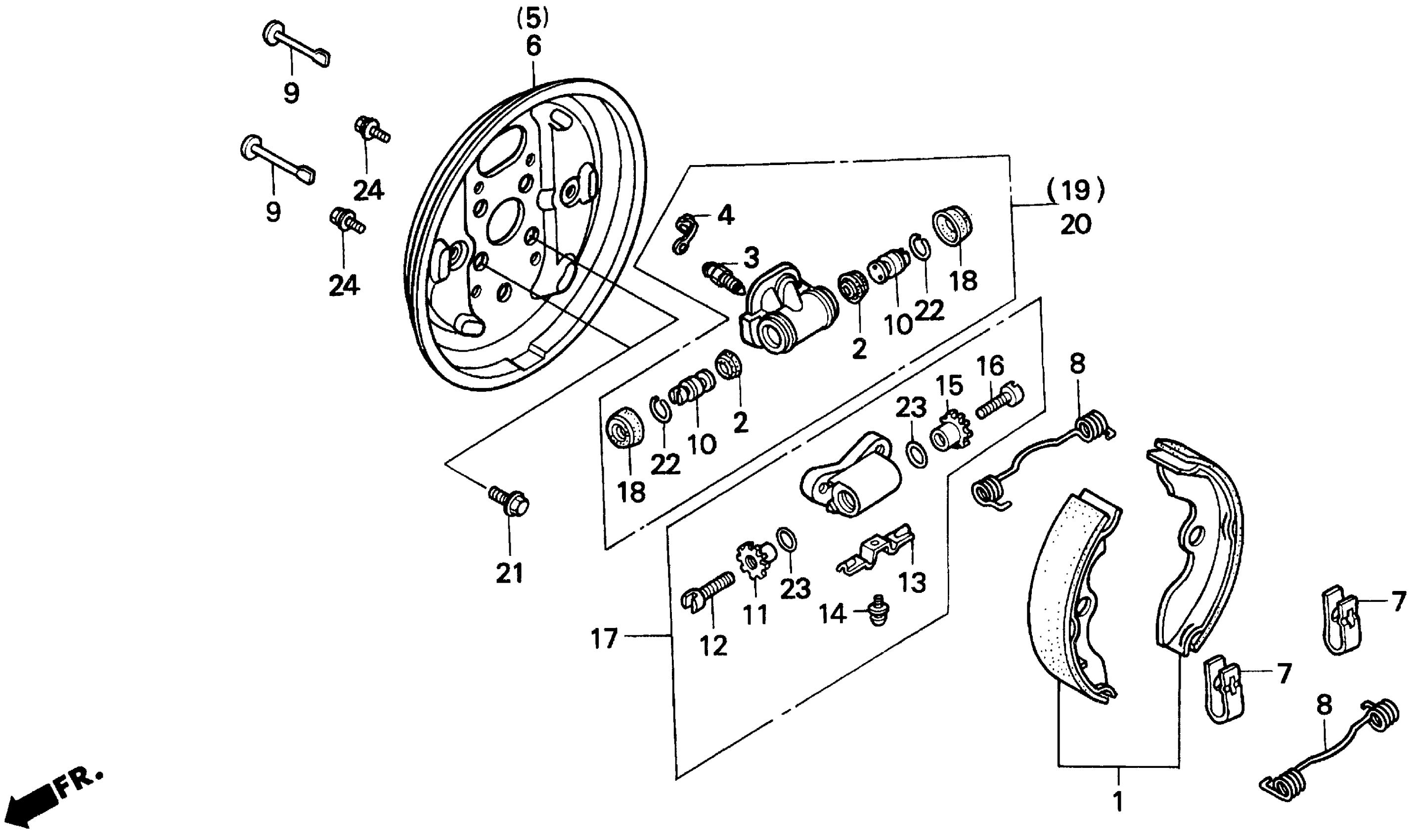

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE (INCLUDES 4 SHOES)

06450-HC4-900

$42.66

CUP, PISTON

43325-567-003

$7.16

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

PLATE, R. BACK

45110-HB3-003

Unavailable

PLATE, L. BACK

45120-HB3-003

Unavailable

SPRING, SHOE HOLDER (NISSIN)

45172-HB3-003

$6.34

SPRING, BRAKE

45173-HC4-006

$4.53

PIN, TENSION

45175-VM0-003

$3.77

PISTON, WHEEL CYLINDER (NISSIN)

45314-HC4-006

$22.08

NUT, R. ADJUSTER

45316-VM0-003

$9.18

SCREW, R. ADJUSTING

45317-634-013

$5.78

SPRING, LOCK

45318-HB3-003

$6.28

SCREW-WASHER (4X6)

45319-634-003

$2.48

NUT, L. ADJUSTER

45336-VM0-003

$9.74

SCREW, L. ADJUSTING

45337-634-013

$5.78

ADJUSTER ASSY. (NISSIN)

45340-HB3-003

$53.16

BOOT, WHEEL CYLINDER

45342-HB3-003

$6.16

CYLINDER ASSY., R. FR. WHEEL (NOT AVAILABLE)

45350-HF1-961

Unavailable

CYLINDER ASSY,FR This part replaces 45370-HF1-961.

45370-HF1-505

Unavailable

BOLT, FLANGE (8X12)

90115-HM4-930

$4.11

CLIP, PISTON (NISSIN)

90661-HC4-006

$3.89

O-RING (14X1.5)

91351-VM0-003

$2.61

BOLT-WASHER (6X12)

93402-06012-07

$1.70
