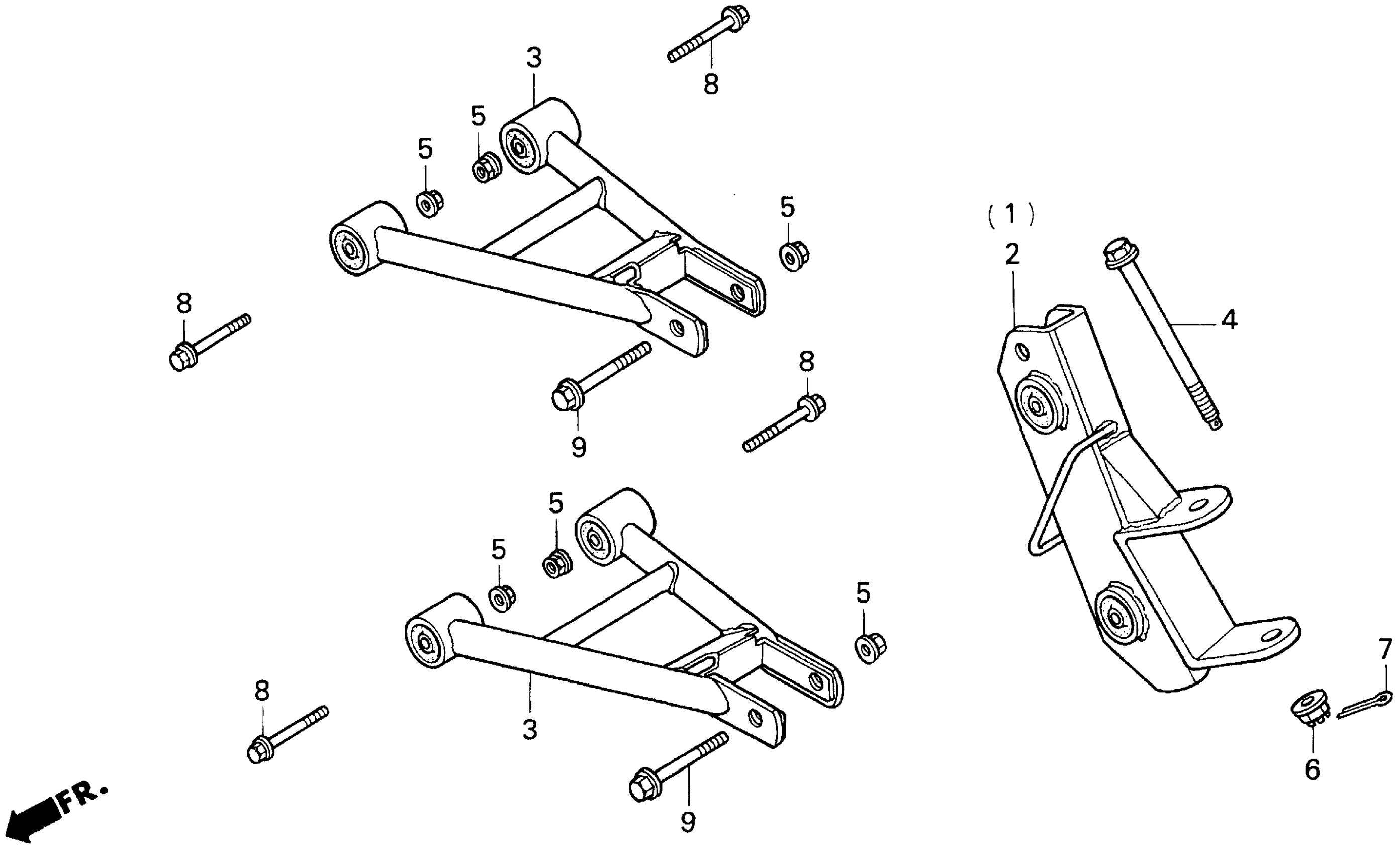

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 FRONT ARM Diagram

#

Description
Price

1

HOLDER ASSY., R. KNUCKLE

51330-HF1-670

Unavailable

2

HOLDER ASSY., L. KNUCKLE (NOT AVAILABLE)

51340-HF1-670

Unavailable

3

ARM ASSY., FR. (NOT AVAILABLE)

51350-HF1-670

Unavailable

4

BOLT, KINGPIN (12X115) (NOT AVAILABLE)

90198-HB3-000

Unavailable

5

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

6

NUT, CASTLE (12MM)

94011-12280-0S

Unavailable

7

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

7

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

7

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

7

PIN, SPLIT (3.0X45)

94201-30450

$1.49

8

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

8

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99

9

BOLT, FLANGE (10X80)

96400-10080-00

Unavailable
