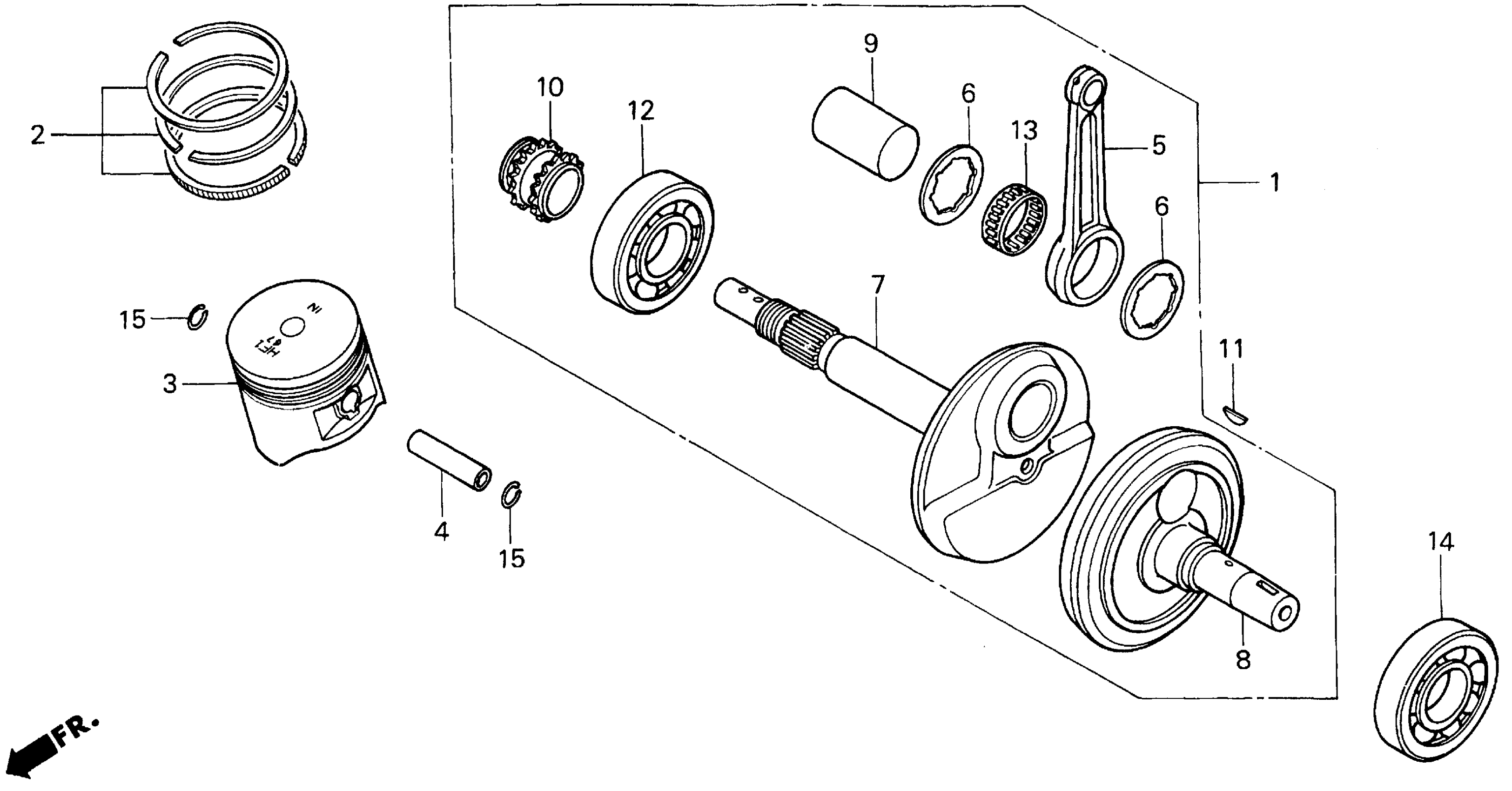

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-HF1-670

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE)

13011-HF1-670

Unavailable

2

RING SET, PISTON (0.25) (NOT AVAILABLE) | (Optional).

13021-HF1-670

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13031-HF1-670

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13041-HF1-670

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional).

13051-HF1-670

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-HF1-670

Unavailable

3

PISTON (OVER SIZE) (0.25) | (Optional).

13102-HF1-670

Unavailable

3

PISTON (OVER SIZE) (0.50) | (Optional).

13103-HF1-670

Unavailable

3

PISTON (OVER SIZE) (0.75) | (Optional).

13104-HF1-670

Unavailable

3

PISTON (1.00) | (Optional).

13105-HF1-670

Unavailable

4

PIN, PISTON This part replaces 13111-422-000.

13111-425-000

$21.65

4

PIN, PISTON

13111-425-000

$21.65

5

ROD, CONNECTING (NOT AVAILABLE)

13201-HB3-300

Unavailable

6

PLATE, CONNECTING ROD SIDE

13202-958-300

$12.02

7

CRANKSHAFT, R.

13311-HF1-670

Unavailable

8

CRANKSHAFT, L.

13321-HB3-300

Unavailable

9

PIN, CRANK

13381-HF1-670

Unavailable

10

SPROCKET, TIMING

14312-HB3-300

Unavailable

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

12

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

12

BEARING, RADIAL BALL (63/28) This part replaces 91001-440-003.

91009-HC0-003

$31.43

12

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

13

BEARING A, CONNECTING ROD (RED) (TOYO)

91002-440-003

Unavailable

13

BEARING B, CONNECTING ROD (BLUE) (TOYO)

91003-440-003

Unavailable

13

BEARING C, CONNECTING ROD (WHITE) (TOYO)

91004-440-003

Unavailable

14

BEARING, RADIAL BALL This part replaces 91003-HB3-771.

91008-KAE-731

$48.16

14

BEARING, RADIAL BALL This part replaces 91008-KAE-000.

91008-KAE-731

$48.16

14

BEARING, RADIAL BALL

91008-KAE-731

$48.16

15

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
