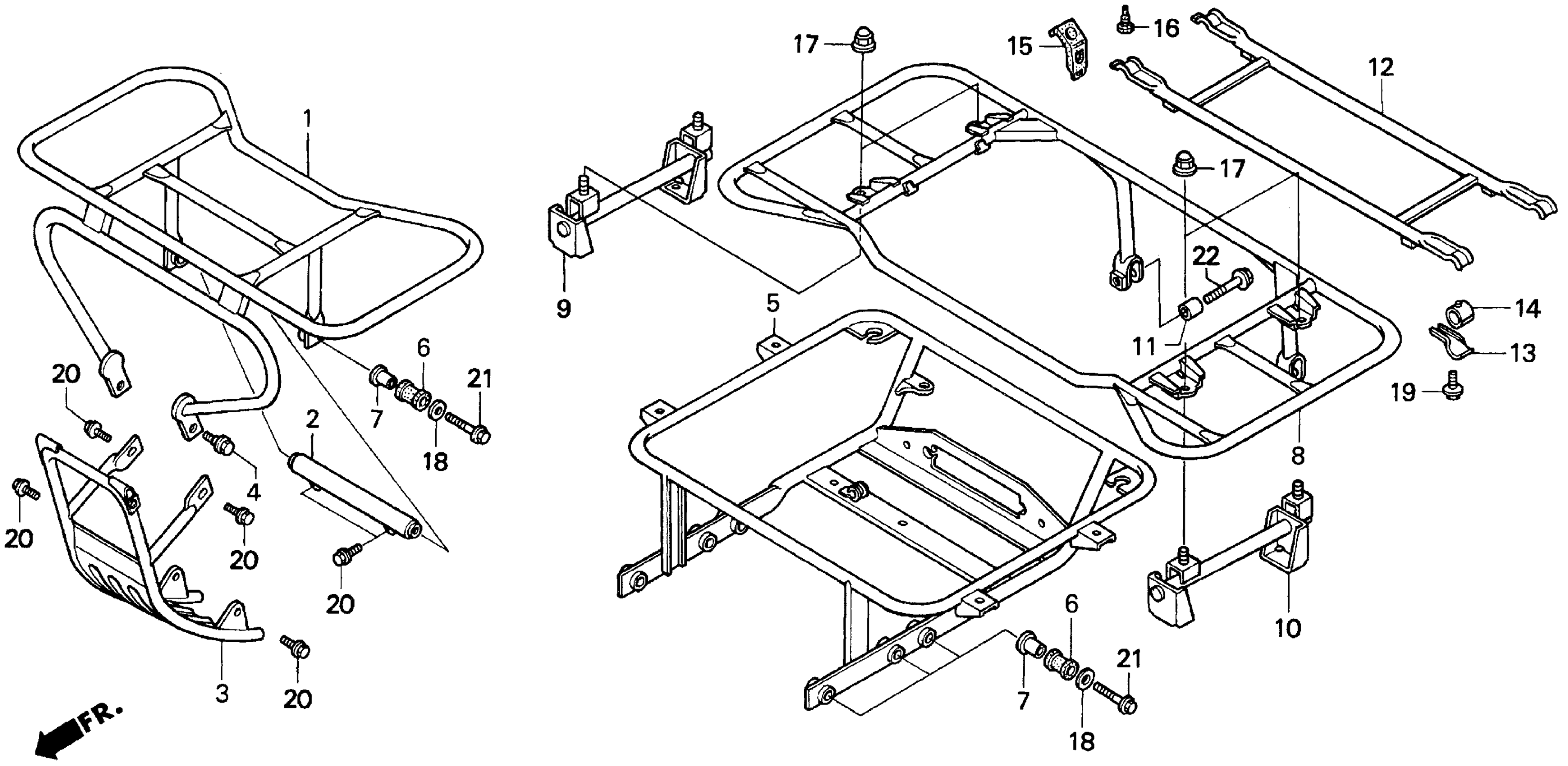

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 CARRIER Diagram

#

Description
Price

1

CARRIER, FR. LUGGAGE

81100-HF1-910

Unavailable

2

STAY, FR. CARRIER

81110-HF1-910

Unavailable

3

PIPE, FR. CARRY

81150-HF1-910

Unavailable

4

BOLT, FR. CARRIER (NOT AVAILABLE)

81165-HF1-880

Unavailable

5

PIPE, CARRIER

81200-HF1-910

$158.28

6

RUBBER, CARRIER PIPE MOUNTING (NOT AVAILABLE)

81201-HB3-000

Unavailable

7

COLLAR, CARRIER PIPE MOUNTING

81202-HB3-000

Unavailable

8

CARRIER, RR. LUGGAGE

81300-HF1-910

Unavailable

9

STAY, R. RR. CARRIER

81301-HF1-701

Unavailable

10

STAY, L. RR. CARRIER

81302-HF1-701

Unavailable

11

COLLAR, RR. CARRIER (NOT AVAILABLE)

81303-HF1-880

Unavailable

12

CARRIER, LUGGAGE SUB

81306-HF1-910

Unavailable

13

BRACKET, SUB-CARRIER This part replaces 81307-HM5-850.

81307-958-680

$7.67

13

BRACKET, SUB-CARRIER

81307-958-680

$7.67

14

SPACER, SUB-CARRIER

81308-958-680

$8.76

15

BAND, SUB-CARRIER

81309-HF1-750

$13.86

16

RUBBER, SUB-CARRIER

81310-HA0-680

$3.52

17

NUT, CAP (8MM) This part replaces 90301-SA0-000.

90443-KF9-900

$3.98

17

NUT, CAP (8MM)

90443-KF9-900

$3.98

18

WASHER, PLAIN (8MM)

94103-08700

$0.86

19

BOLT, FLANGE (6X14)

95701-06014-07

$1.32

20

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

21

BOLT, FLANGE (8X35)

95701-08035-07

$1.28

22

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.20
