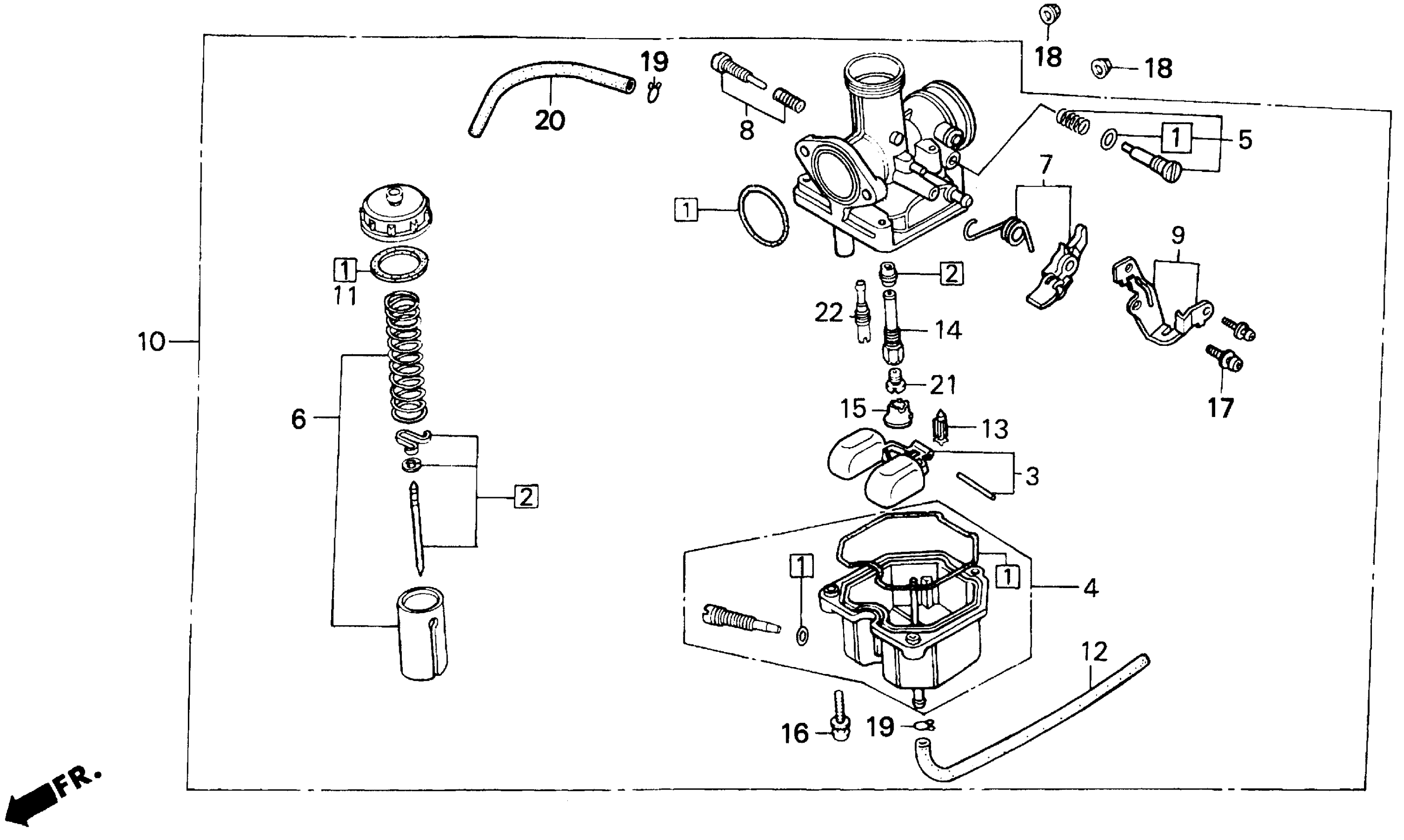

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 CARBURETOR Diagram

GASKET SET (NOT AVAILABLE)

16010-HF1-670

Unavailable

NEEDLE SET, JET (NOT AVAILABLE)

16012-HF1-750

Unavailable

FLOAT SET

16013-439-921

$76.36

CHAMBER SET, FLOAT This part replaces 16015-HB3-004.

16015-KFC-910

Unavailable

CHAMBER SET, FLOAT

16015-KFC-910

Unavailable

SCREW SET A

16016-HF1-750

Unavailable

VALVE SET, THROTTLE

16022-HF1-750

Unavailable

LEVER SET, CHOKE This part replaces 16025-HF1-910.

16025-KB1-D11

Unavailable

LEVER SET, CHOKE

16025-KB1-D11

Unavailable

LEVER SET, CHOKE This part replaces 16025-324-861.

16025-KB1-D11

Unavailable

SCREW SET B

16028-HF1-750

Unavailable

PLATE SET, STAY This part replaces 16035-HF1-960.

16035-HM8-000

$39.02

PLATE SET, STAY

16035-HM8-000

$39.02

CARBURETOR ASSY. (PD63E A) (NOT AVAILABLE)

16100-HF1-750

Unavailable

GASKET, TOP

16110-KN4-651

$7.69

TUBE, FUEL This part replaces 16143-KG4-003.

16199-KG4-405

$9.49

PIPE, OVERFLOW

16199-KG4-405

$9.49

VALVE, FLOAT

16155-397-971

$41.45

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-HF1-910

Unavailable

HOLDER, JET

16168-382-014

$9.81

SCREW-WASHER (4X16)

93892-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

SCREW-WASHER (5X12)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B6.5)

95002-02659

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X540)

95005-35001-50M

$13.72

JET, MAIN (#90) | (Optional).

99101-GHB-0900

$9.10

JET, MAIN (#95)

99101-GHB-0950

$8.77

JET, MAIN (#90) | (Optional). This part replaces 99101-393-0900.

99101-GHB-0900

$9.10

JET, MAIN (#95) This part replaces 99101-393-0950.

99101-GHB-0950

$8.77

JET, SLOW (#40)

99103-MZ8-0400

Unavailable

JET, SLOW (#40) This part replaces 99103-427-0400.

99103-MZ8-0400

Unavailable
