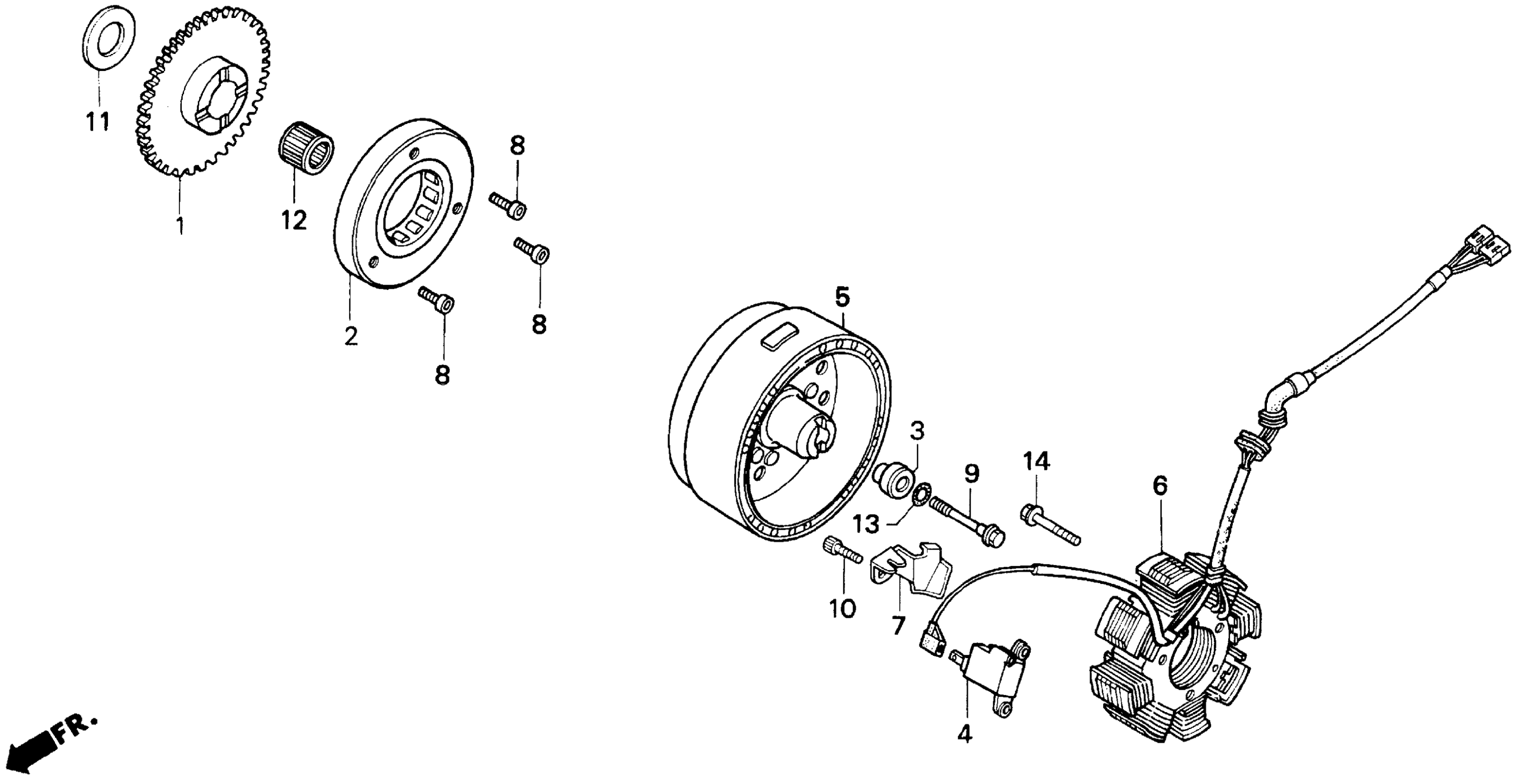

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 ALTERNATOR Diagram

GEAR, STARTING DRIVEN (48T) (NOT AVAILABLE)

28110-HB3-000

Unavailable

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-HB3-010

Unavailable

BOSS, ALTERNATOR

28432-HF1-670

Unavailable

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$36.58

FLYWHEEL

31110-HB3-004

Unavailable

STATOR (DENSO)

31120-HF1-004

Unavailable

CLAMP, PULSER WIRE

32111-HB3-000

Unavailable

BOLT, SOCKET (8X18)

90010-HF1-670

$3.64

BOLT, SPECIAL (8MM)

90081-HB3-000

Unavailable

BOLT, SOCKET (5X14)

90089-HB3-000

$3.01

WASHER, THRUST (26MM)

90407-415-000

$5.13

BEARING, NEEDLE (22X27X20)

91007-HB3-013

$21.93

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.80

BOLT, SOCKET (6X28)

96700-06028-00

$3.77
