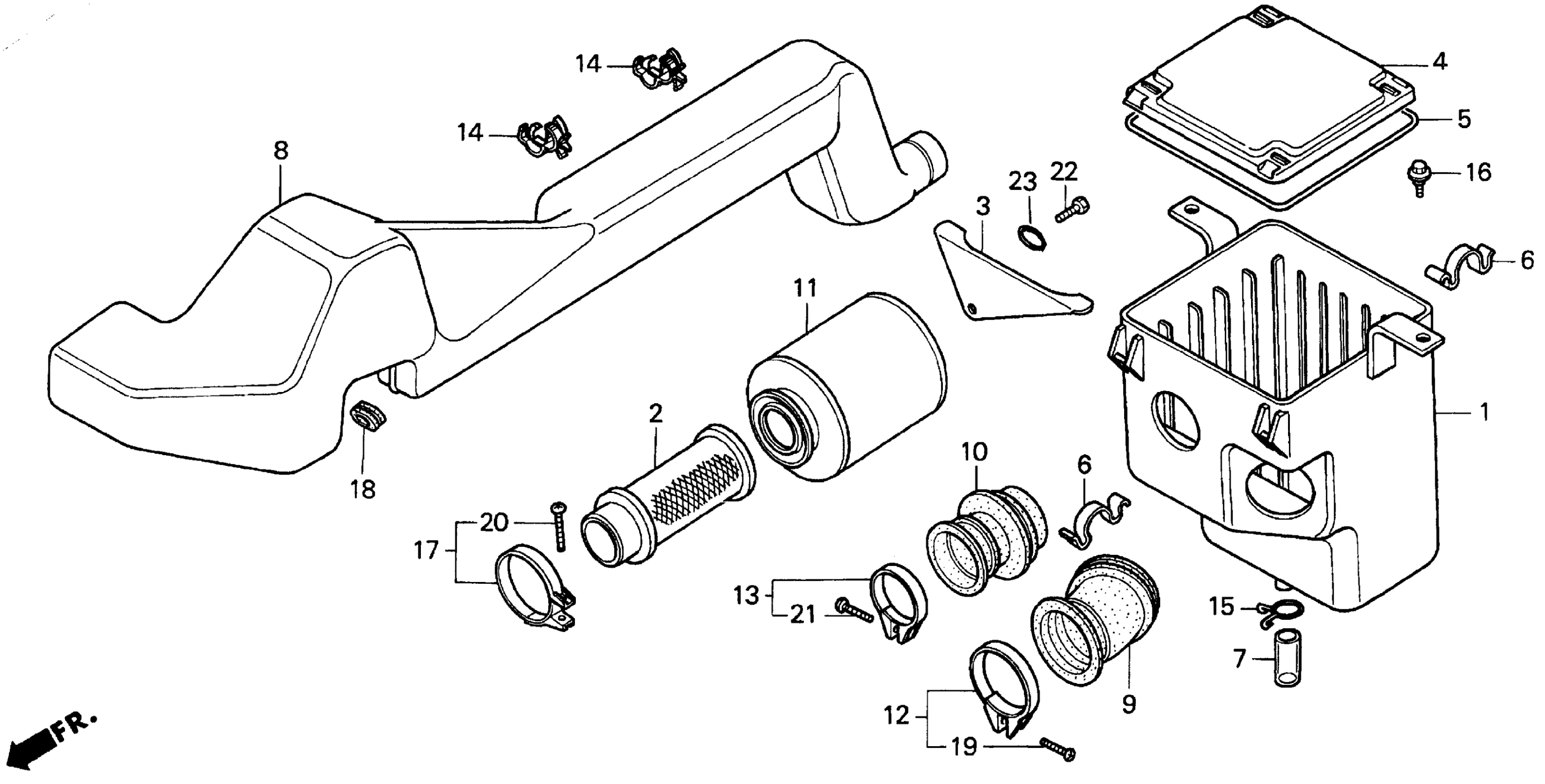

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17210-HF1-670

Unavailable

2

BODY, AIR CLEANER (NOT AVAILABLE)

17211-HF1-670

Unavailable

3

PLATE, RR.

17212-HF1-671

Unavailable

4

LID, AIR CLEANER HOUSING

17217-HF1-670

Unavailable

5

SEAL, AIR CLEANER LID

17219-HF1-670

Unavailable

6

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.88

7

TUBE, AIR CLEANER DRAIN This part replaces 17224-HB3-000.

17224-HM5-930

$10.85

8

PIPE, SNORKEL

17225-HF1-880

Unavailable

9

SEAL, AIR CLEANER DUCT

17252-HF1-670

$9.43

10

TUBE, AIR CLEANER CONNECTING

17253-HF1-670

Unavailable

11

ELEMENT, AIR CLEANER

17254-HF1-910

$18.27

12

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17255-GF5-770.

95018-52250

$5.14

12

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17256-MM8-000.

95018-52250

$5.14

12

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$5.14

13

BAND A, AIR CLEANER

17255-HB3-010

Unavailable

14

CLIP, CABLE (18)

17724-HF1-670

Unavailable

15

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

16

BOLT, FLANGE (6X14)

90111-HC4-000

$2.99

17

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 90652-GHB-730.

95018-60250

$6.25

17

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$6.25

18

GROMMET, WIRE HARNESS

91601-ZG3-801

Unavailable

19

SCREW, PAN (4X20)

93500-04020-0G

$1.49

20

SCREW, PAN (4X25)

93500-04025-0G

$1.49

21

SCREW, PAN (5X25)

93500-05025-0G

$1.49

22

SCREW, PAN (6X25)

93500-06025-0H

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49
