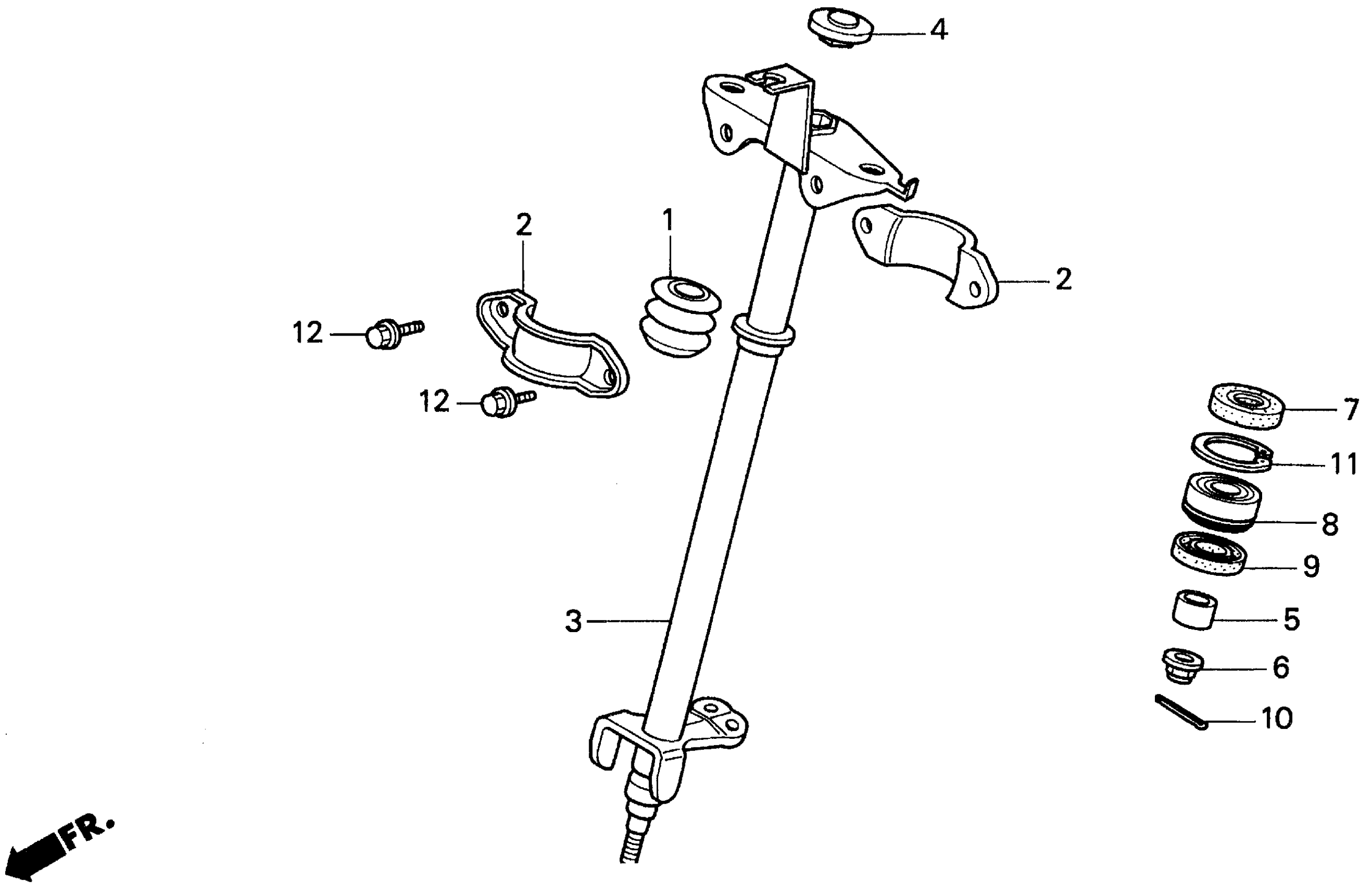

Honda TRX200DA (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-TA600001 STEERING SHAFT Diagram

BUSH, STEERING

53221-HC4-004

$28.25

HOLDER, STEERING SHAFT

53223-HC4-000

$16.63

SHAFT, STEERING

53310-HF1-670

Unavailable

CAP, STEERING SHAFT (NOT AVAILABLE)

53314-HC4-000

Unavailable

COLLAR, STEERING SHAFT

53317-HC4-000

Unavailable

NUT, U (14MM)

90305-GE8-003

$3.59

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-681.

90753-GK4-003

$7.77

OIL SEAL (27X40X6) (ARAI)

90753-GK4-003

$7.77

BEARING, RADIAL BALL (6203)

91053-HB3-771

Unavailable

DUST SEAL (23X35X7)

91205-VM6-003

$8.61

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94

CIRCLIP (INNER) (40MM)

94520-40000

$2.09

BOLT, FLANGE (8X16)

95701-08016-07

$1.59
