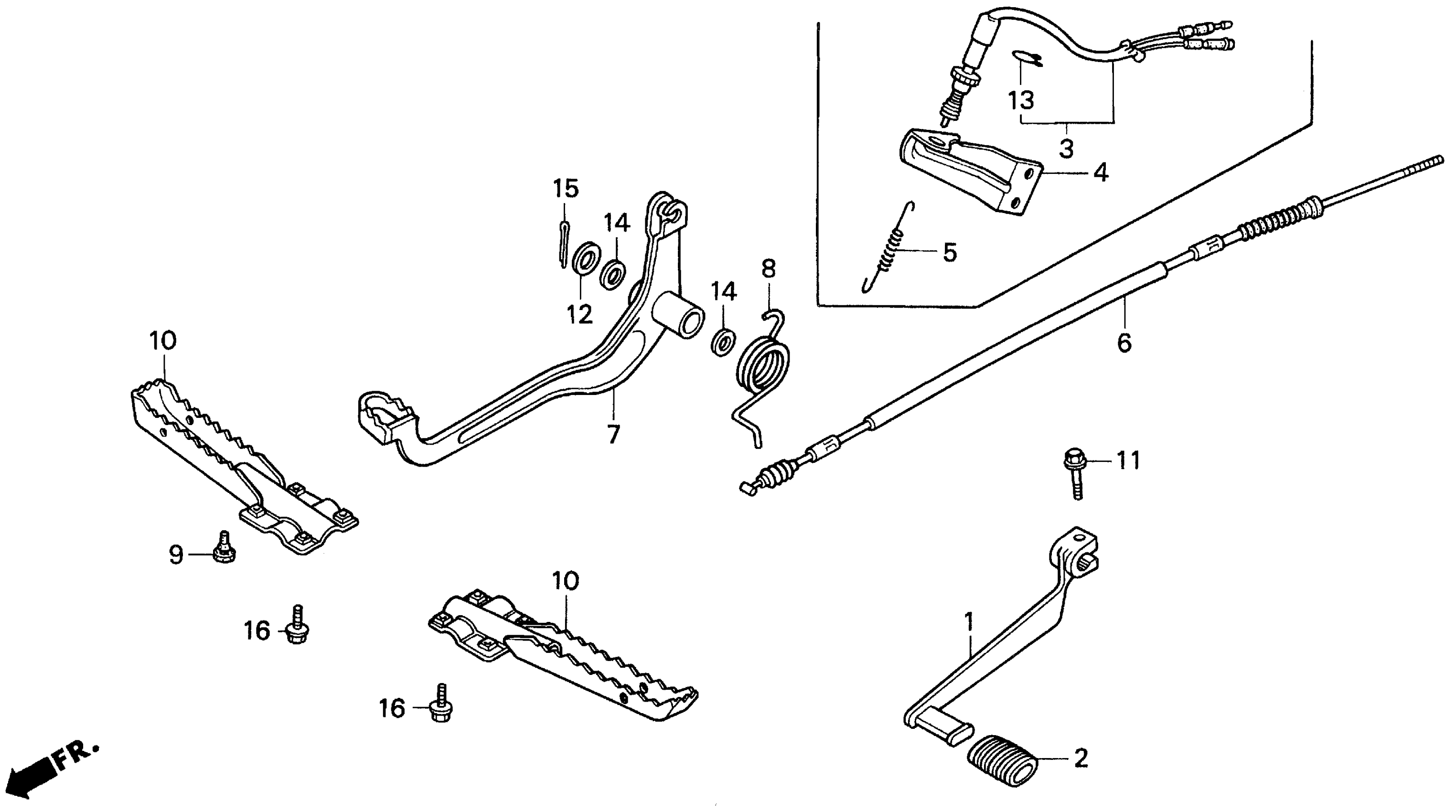

Honda TRX200DA (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-TA600001 PEDAL Diagram

#

Description

Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-HF1-670

Unavailable

2

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

6

CABLE, FOOT BRAKE (NOT AVAILABLE)

43470-HF1-670

Unavailable

7

PEDAL, BRAKE

46500-HF1-670

Unavailable

8

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-HF1-670

Unavailable

9

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

10

BAR, STEP

50610-HF1-670

Unavailable

11

BOLT, FLANGE (6X20)

90118-968-000

$4.24

12

WASHER (17.5MM)

90512-303-000

$1.77

14

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

15

PIN, SPLIT (3.0X45)

94201-30450

$1.49

16

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
