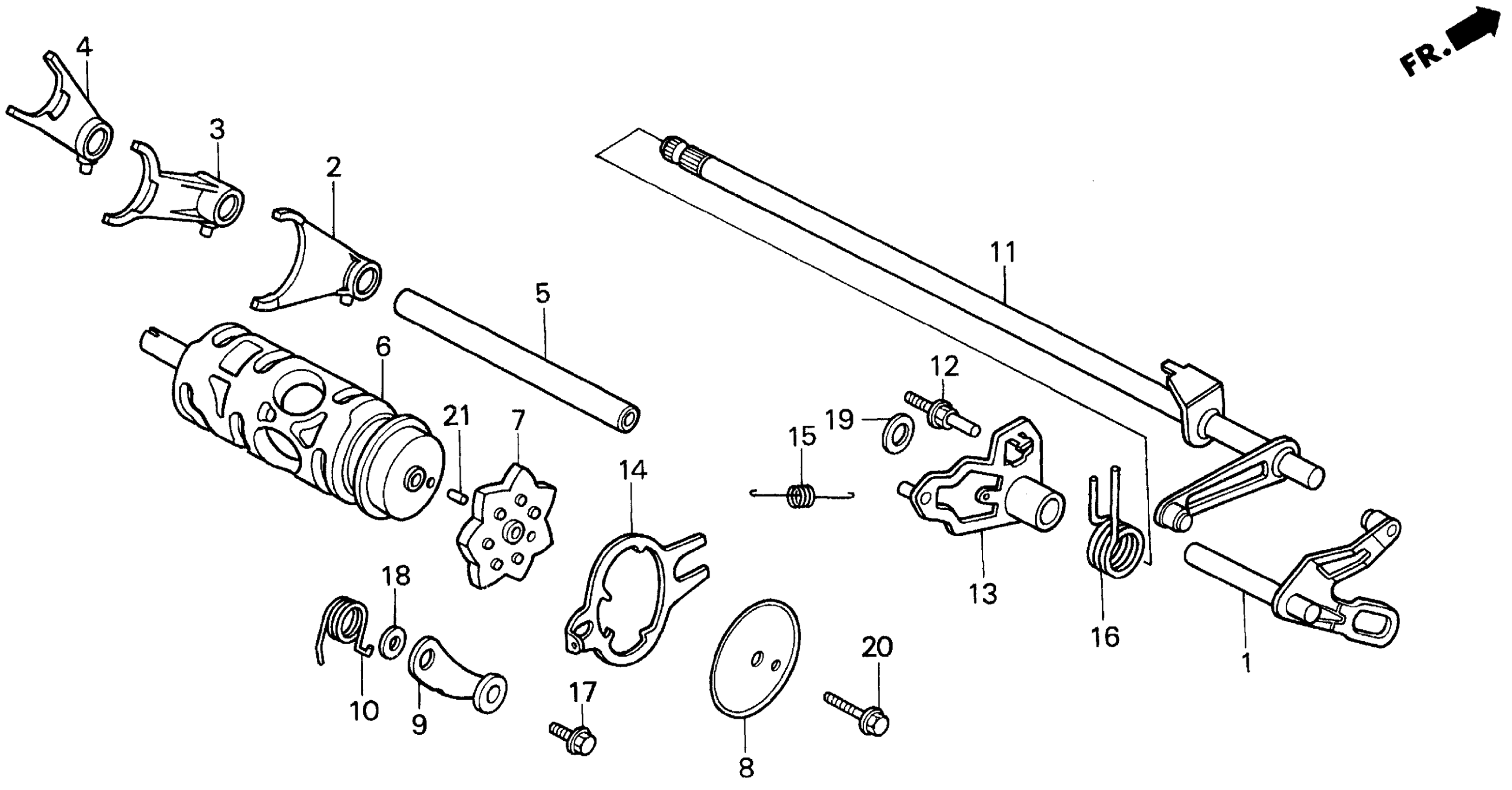

Honda TRX200DA (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-TA600001 GEARSHIFT DRUM Diagram

#

Description
Price

1

SUB-LEVER, CLUTCH LIFTER

22840-HF1-670

Unavailable

2

FORK, R. GEARSHIFT

24211-HB3-000

Unavailable

3

FORK, CENTER GEARSHIFT

24212-HB3-000

Unavailable

4

FORK, L. GEARSHIFT

24213-HB3-000

Unavailable

5

SHAFT, GEARSHIFT FORK GUIDE

24241-HF1-670

$20.13

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-HF1-910

Unavailable

7

SHIFTER, DRUM This part replaces 24321-HB3-010.

24321-HB3-030

Unavailable

7

SHIFTER, DRUM This part replaces 24321-HB3-020.

24321-HB3-030

Unavailable

7

SHIFTER, DRUM

24321-HB3-030

Unavailable

8

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

9

STOPPER, GEARSHIFT DRUM

24430-HB3-000

$14.26

10

SPRING, SHIFT DRUM STOPPER

24435-HB3-770

$4.51

11

SPINDLE, GEARSHIFT

24610-HF1-670

Unavailable

12

PIN, RETURN SPRING

24652-KY4-900

$7.99

13

ARM, GEARSHIFT MASTER

24620-HF1-670

$44.72

14

PLATE, GEARSHIFT This part replaces 24631-HB6-000.

24631-HM8-A40

$14.20

14

PLATE, GEARSHIFT

24631-HM8-A40

$14.20

15

SPRING, SHIFT ARM

24641-HB3-004

$2.90

16

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-HF1-670

Unavailable

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

18

WASHER, DRUM STOPPER

90417-360-000

$1.74

19

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

20

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

21

ROLLER (4X13.8)

96220-40138

$1.49
