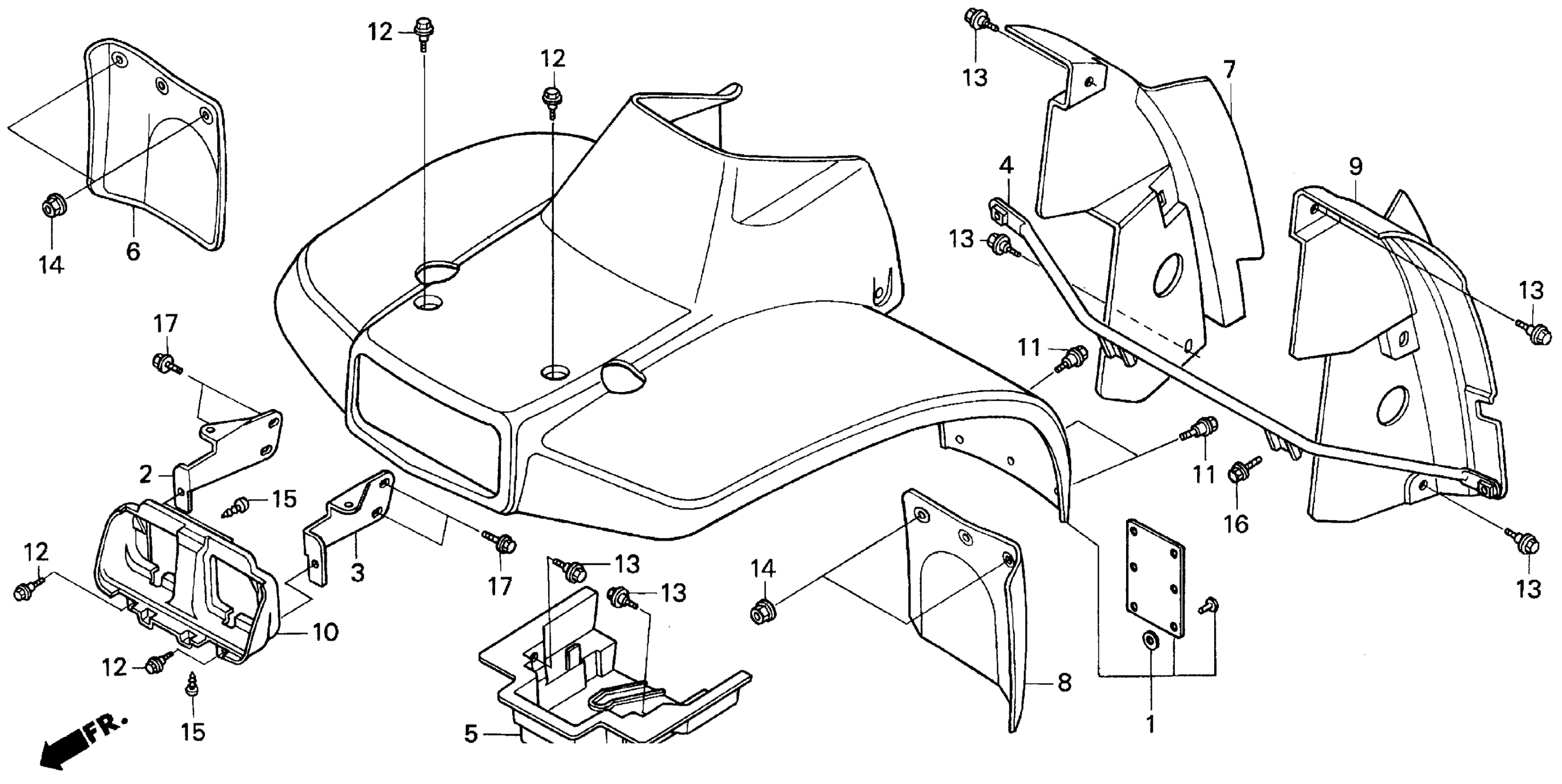

Honda TRX200DA (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-TA600001 FRONT FENDER Diagram

FENDER, FR. *R109* (WOL) (PASSION RED)

61100-HF1-910ZA

Unavailable

FENDER, FR. *G152* (WOL) (ADVENTURE GREEN)

61100-HF1-910ZB

Unavailable

STAY, R. FR. FENDER

61101-HF1-910

Unavailable

STAY, L. FR. FENDER

61102-HF1-910

Unavailable

STAY, FR. FENDER SUPPORT

61103-HF1-910

Unavailable

PLATE, SNORKEL (LOWER)

61720-HF1-770

$21.54

SPLASH GUARD, R. FR. *NH1* (BLACK)

61861-HF1-670ZA

Unavailable

FENDER, R. (INNER)

61862-HF1-670

$35.55

SPLASH GUARD, L. FR. *NH1* (BLACK)

61866-HF1-670ZA

Unavailable

FENDER, L. (INNER)

61867-HF1-670

$40.56

GRILLE, FR. *NH1* (BLACK)

66300-HF1-670ZA

Unavailable

SCREW, SPECIAL (6MM)

90103-HF1-670

$6.08

BOLT, FLANGE (6MM)

90111-GE2-760

$5.44

BOLT, FLANGE (6X14)

90111-HC4-000

$2.99

NUT, FLANGE (6MM)

90301-634-670

$9.23

SCREW, TAPPING (5X12)

93903-25220

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X16)

95701-06016-07

$1.55
