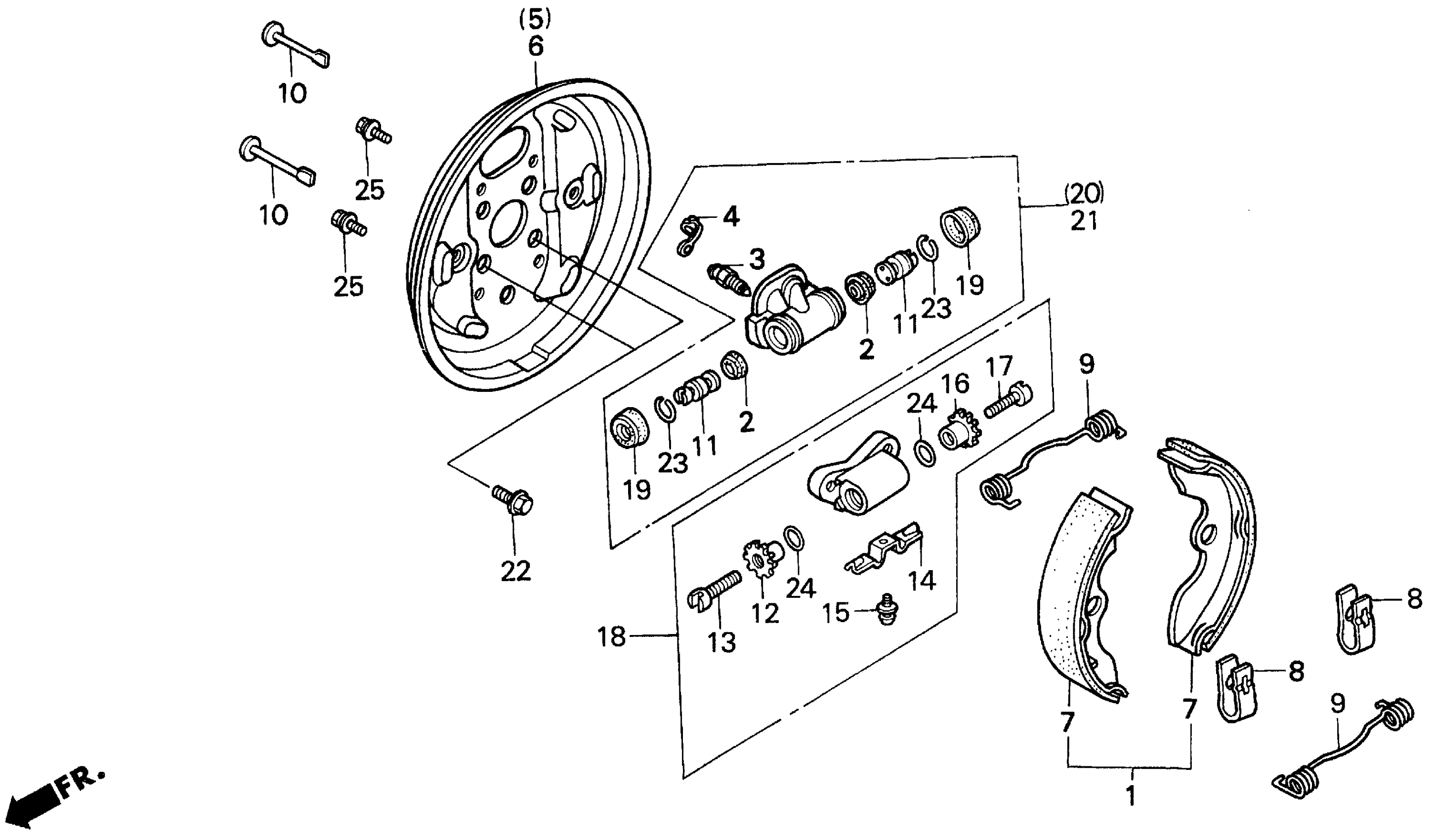

Honda TRX200DA (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-TA600001 FRONT BRAKE PANEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (INCLUDES 4 SHOES)

06450-HC4-900

$42.66

2

CUP, PISTON

43325-567-003

$7.16

3

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

4

CAP, BLEEDER

43353-461-771

$5.05

5

PLATE, R. BACK

45110-HB3-003

Unavailable

6

PLATE, L. BACK

45120-HB3-003

Unavailable

8

SPRING, SHOE HOLDER (NISSIN)

45172-HB3-003

$6.34

9

SPRING, BRAKE

45173-HC4-006

$4.53

10

PIN, TENSION

45175-VM0-003

$3.77

11

PISTON, WHEEL CYLINDER (NISSIN)

45314-HC4-006

$22.08

12

NUT, R. ADJUSTER

45316-VM0-003

$9.18

13

SCREW, R. ADJUSTING

45317-634-013

$5.78

14

SPRING, LOCK

45318-HB3-003

$6.28

15

SCREW-WASHER (4X6)

45319-634-003

$2.48

16

NUT, L. ADJUSTER

45336-VM0-003

$9.74

17

SCREW, L. ADJUSTING

45337-634-013

$5.78

18

ADJUSTER ASSY. (NISSIN)

45340-HB3-003

$53.16

19

BOOT, WHEEL CYLINDER

45342-HB3-003

$6.16

20

CYLINDER ASSY., R. FR. WHEEL (NOT AVAILABLE)

45350-HF1-961

Unavailable

21

CYLINDER ASSY,FR This part replaces 45370-HF1-961.

45370-HF1-505

Unavailable

22

BOLT, FLANGE (8X12) (NOT AVAILABLE)

90115-HC4-003

Unavailable

23

CLIP, PISTON (NISSIN)

90661-HC4-006

$3.89

24

O-RING (14X1.5)

91351-VM0-003

$2.61

25

BOLT-WASHER (6X12)

93402-06012-07

$1.70
