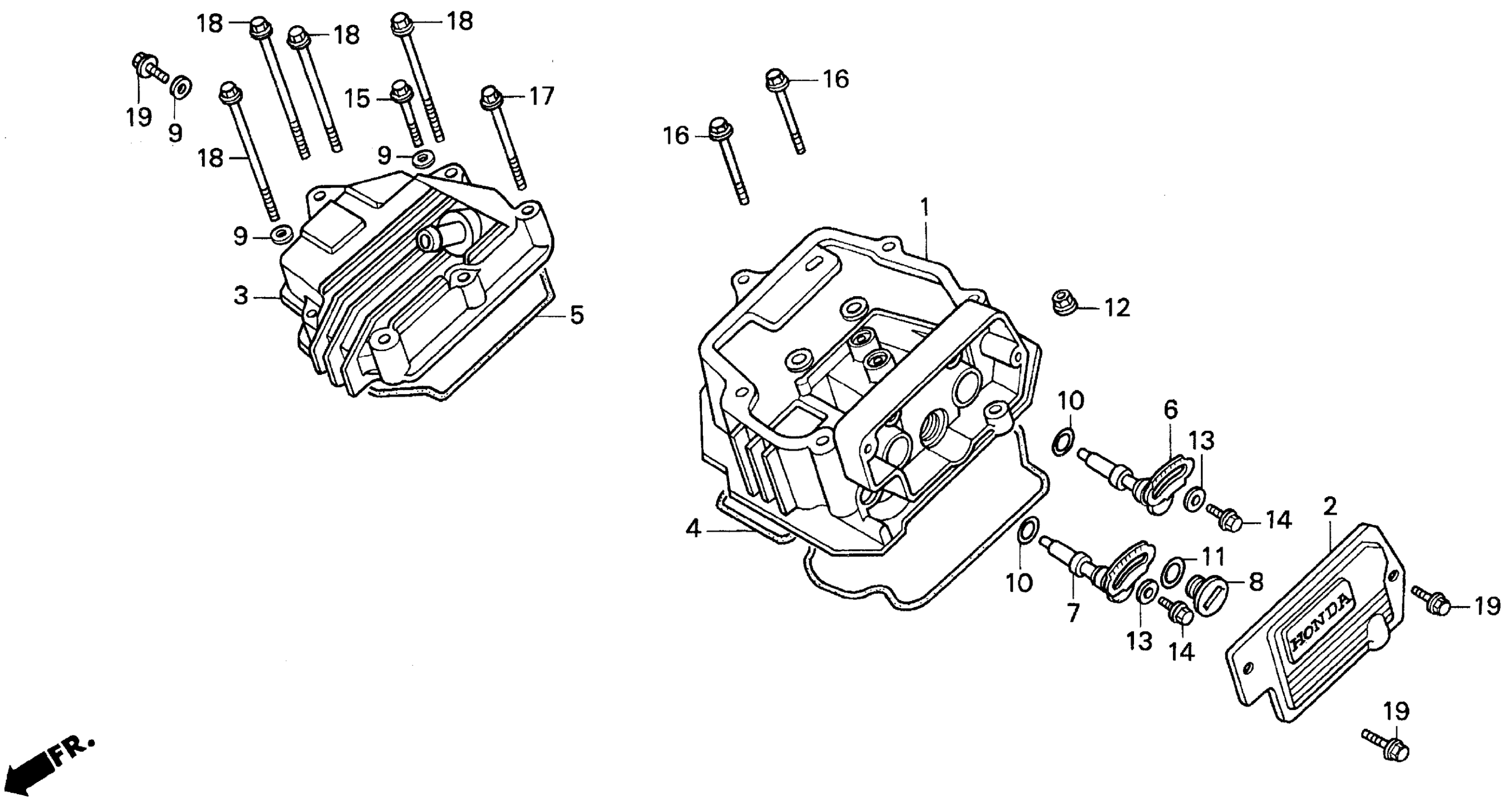

Honda TRX200DA (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-TA600001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12310-HB3-840

Unavailable

2

COVER, TAPPET ADJUSTING HOLE

12311-HB7-670

Unavailable

3

COVER, BREATHER

12315-HB7-670

Unavailable

4

GASKET, HEAD COVER (NOT AVAILABLE)

12391-HB3-004

Unavailable

4

GASKET, HEAD COVER (NOT AVAILABLE) This part replaces 12391-HB3-013.

12391-HB3-004

Unavailable

5

GASKET, BREATHER COVER (NOT AVAILABLE)

12396-HB3-003

$7.67

6

SHAFT, ROCKER ARM IN. (NOT AVAILABLE)

14450-HB3-010

Unavailable

7

SHAFT, ROCKER ARM EX. (NOT AVAILABLE)

14460-HB3-010

Unavailable

8

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

8

CAP, ALTERNATOR

90084-471-000

Unavailable

9

WASHER, SEALING (6MM)

90441-706-000

$1.06

10

O-RING (9.8X1.9) This part replaces 91301-812-000.

91305-PE2-003

$2.41

10

O-RING (9.8X1.9) This part replaces 91302-PJ4-000.

91305-PE2-003

$2.41

10

O-RING (9.8X1.9) This part replaces 91302-PJ4-004.

91305-PE2-003

$2.41

10

O-RING (9.8X1.9) This part replaces 91303-HB3-003.

91305-PE2-003

$2.41

10

O-RING (9.8X1.9) This part replaces 91303-729-720.

91305-PE2-003

$2.41

10

O-RING (9.8X1.9) This part replaces 91303-729-721.

91305-PE2-003

$2.41

10

O-RING (9.8X1.9)

91305-PE2-003

$2.41

11

O-RING (13.8X2.5)

91303-377-000

$3.18

12

NUT, FLANGE (6MM)

94050-06000

$0.59

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM)

94101-06800

Unavailable

14

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

15

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

16

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

16

BOLT, FLANGE (6X55) This part replaces 95701-06055-09.

95701-06055-00

$1.97

17

BOLT, FLANGE (6X70)

95701-06070-00

$2.09

18

BOLT, FLANGE (6X80)

95701-06080-00

$2.30

19

BOLT, FLANGE (6X14)

96001-06014-00

$1.64
