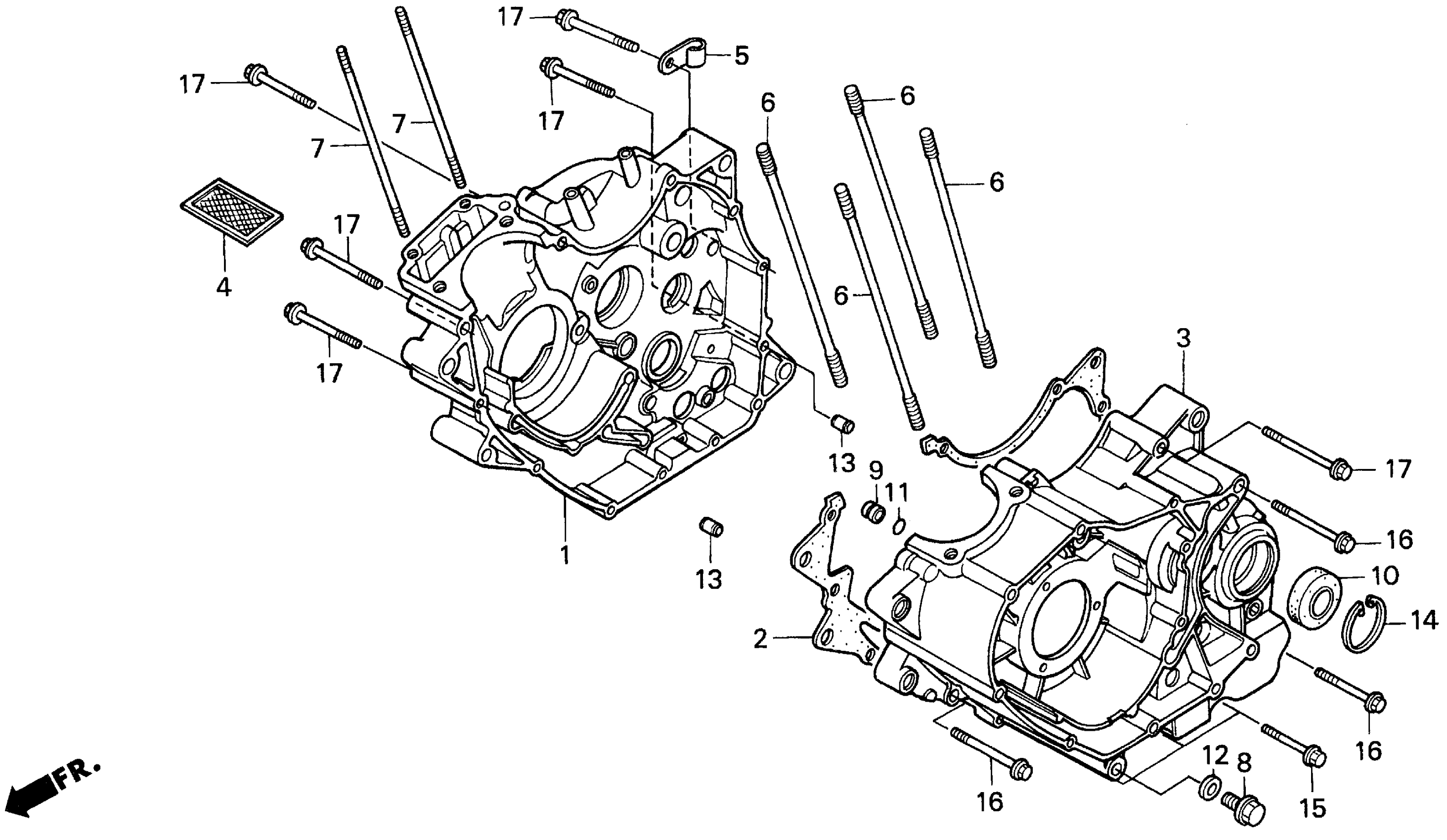

Honda TRX200DA (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-TA600001 CRANKCASE Diagram

CRANKCASE, R.

11100-HB3-840

Unavailable

GASKET, CRANKCASE (NOT AVAILABLE)

11191-HF1-910

Unavailable

CRANKCASE, L.

11200-HB3-840

Unavailable

SCREEN, OIL FILTER

15421-KK0-000

$7.70

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

BOLT A, CYLINDER STUD

90031-HB3-000

Unavailable

BOLT, STUD (6X105)

90034-HB3-000

Unavailable

BOLT, DRAIN PLUG (12MM)

90131-HF1-670

$4.64

ORIFICE (1.2MM)

90805-HB7-000

Unavailable

OIL SEAL (22X36X6)

91206-HB3-003

$8.98

O-RING (7.5X1.5)

91302-HB3-004

$2.18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (INNER) (36)

94520-36000

$1.49

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

BOLT, FLANGE (6X65)

95701-06065-00

$1.51
