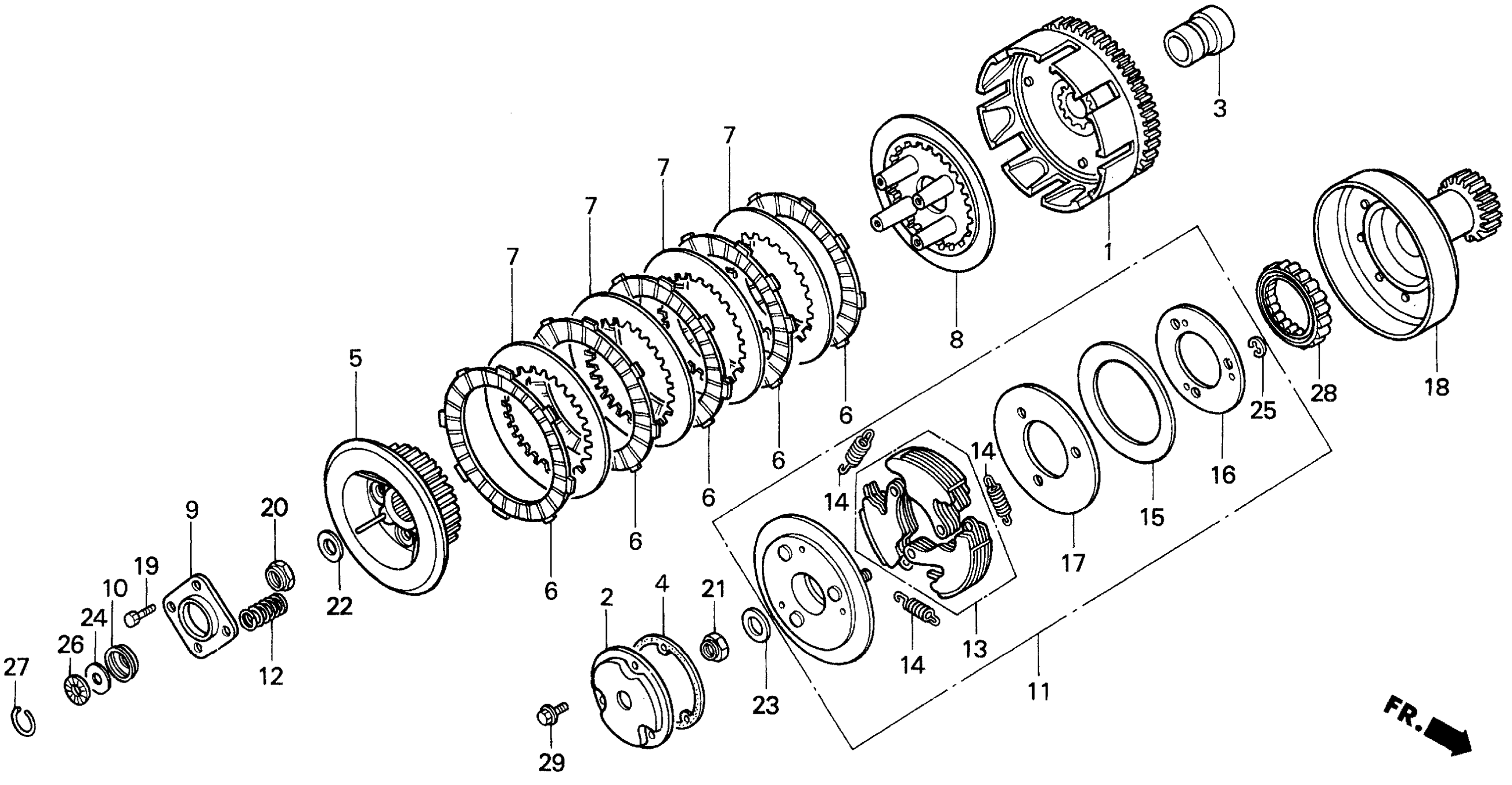

Honda TRX200DA (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-TA600001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER This part replaces 22100-HB3-000.

22100-HM8-A40

$206.56

1

CLUTCH OUTER

22100-HM8-A40

$206.56

2

COVER, OIL FILTER

22111-HB3-771

$22.37

3

GUIDE, CLUTCH (OUTER)

22116-HB3-000

$22.21

4

GASKET, OIL FILTER COVER

22119-HF1-910

Unavailable

5

CENTER, CLUTCH (NOT AVAILABLE)

22121-HF1-670

Unavailable

6

DISK, CLUTCH FRICTION

22201-166-000

$16.07

7

PLATE, CLUTCH

22321-KE8-000

$11.67

8

PLATE, CLUTCH PRESSURE

22350-HB3-000

$37.98

9

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-HB3-840

Unavailable

10

COLLAR, CLUTCH LIFTER

22362-KK0-000

Unavailable

11

PLATE ASSY., DRIVE This part replaces 22400-HF1-910.

22400-HM8-000

Unavailable

11

PLATE ASSY., DRIVE

22400-HM8-000

Unavailable

12

SPRING, CLUTCH This part replaces 22401-HB3-010.

22401-KE7-000

$3.87

12

SPRING, CLUTCH

22401-KE7-000

$3.87

13

WEIGHT SET, CLUTCH This part replaces 22460-HF1-305.

22535-HM8-306

$75.68

13

WEIGHT SET, CLUTCH This part replaces 22535-HM8-305.

22535-HM8-306

$75.68

13

WEIGHT SET, CLUTCH

22535-HM8-306

$75.68

14

SPRING, CLUTCH

22463-HB3-770

$3.65

15

SPRING, CONE DISK

22470-HB3-770

$12.87

16

WASHER (48X92X1.6) (NOT AVAILABLE) This part replaces 22480-HB3-770.

22480-HM8-000

Unavailable

17

WASHER (48X100X1.2) This part replaces 22481-HB3-770.

22481-HM8-A40

$9.04

17

WASHER (48X100X1.2)

22481-HM8-A40

$9.04

18

DRUM, CLUTCH (23T) This part replaces 22500-HF1-670.

22500-HS0-A00

$111.72

18

DRUM, CLUTCH (23T) This part replaces 22500-HM8-A40.

22500-HS0-A00

$111.72

19

BOLT, HEX. (6X28)

90001-HA5-000

$3.86

20

NUT, SPECIAL (16MM)

90201-HB3-000

$7.14

21

NUT, SPECIAL (18MM)

90235-HB3-000

$9.59

22

WASHER (16MM) This part replaces 90407-HB3-000.

90434-KR3-000

$2.85

22

WASHER (16MM)

90434-KR3-000

$2.85

23

WASHER (18MM)

90432-KE5-000

$4.65

24

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.46

24

WASHER, THRUST (12MM) (THOMPSON)

90452-147-006

$3.66

25

CIRCLIP (7MM)

90605-166-720

$1.66

26

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.56

27

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.83

28

CLUTCH, ONE-WAY

91101-958-003

$139.53

29

BOLT, FLANGE (6X8)

95701-06008-00

$3.10
