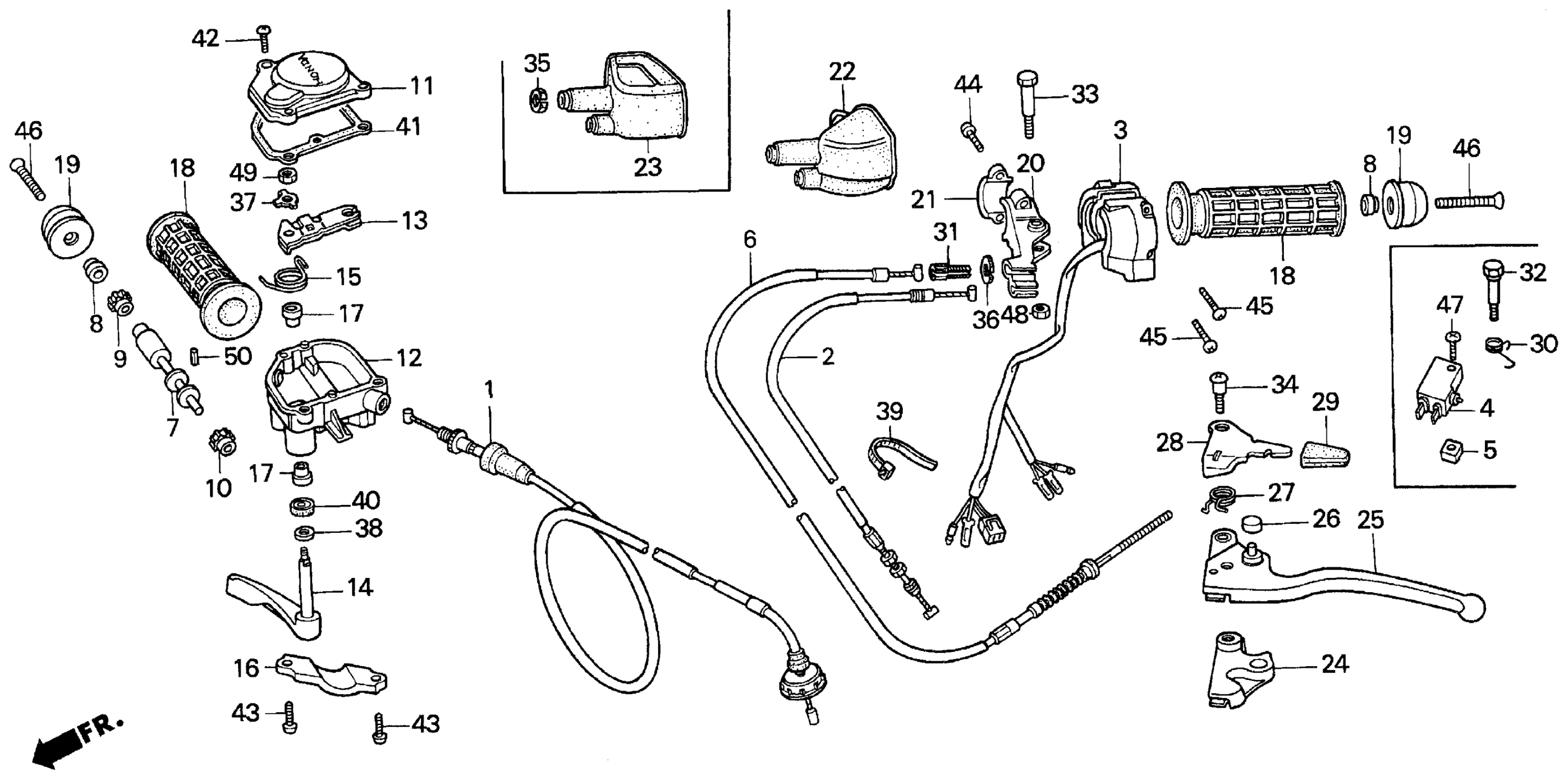

Honda TRX200DA (95) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-SA500001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HF1-305

Unavailable

2

CABLE, REVERSE ASSIST (NOT AVAILABLE)

22880-HF1-670

Unavailable

3

SWITCH ASSY., LIGHTING ENGINE STARTER (NOT AVAILABLE)

35200-HF1-670

Unavailable

6

CABLE, HAND BRAKE This part replaces 43460-HF1-671.

43460-HF1-672

Unavailable

6

CABLE, HAND BRAKE

43460-HF1-672

Unavailable

7

WEIGHT B, HANDLEBAR (NOT AVAILABLE)

53101-MC7-000

Unavailable

8

COLLAR, HANDLE WEIGHT (NOT AVAILABLE)

53102-HB3-000

Unavailable

9

RUBBER B, HANDLE WEIGHT

53107-KM9-000

$3.73

10

RUBBER, HANDLE WEIGHT

53107-121-730

Unavailable

11

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

12

CASE, THROTTLE LEVER

53142-HC0-770

$38.21

13

ARM, THROTTLE

53144-HA0-010

$7.36

14

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$21.43

14

LEVER, THROTTLE

53145-HA0-770

$21.43

15

SPRING, THROTTLE RETURN

53146-HA0-000

$4.31

16

HOLDER, THROTTLE CASE

53147-HC3-000

$8.50

17

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

18

GRIP, HANDLE

53165-958-010

$12.28

19

GUARD, HANDLE END

53167-HB3-000

Unavailable

20

BRACKET, BRAKE LEVER (NOT AVAILABLE)

53172-HA8-682

Unavailable

21

HOLDER, LEVER BRACKET

53173-376-000

$10.04

22

COVER, L. HANDLE LEVER

53177-HA0-680

$10.75

24

ARM, REVERSE ASSISTANT

53179-HA6-000

$13.93

25

LEVER, RR. BRAKE

53180-HA8-770

$26.97

26

CAP, REVERSE PIN

53187-VM6-000

$3.71

27

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

28

LEVER, PARKING BRAKE LOCK

53192-HA8-771

$10.56

29

CAP, PARKING LEVER

53193-HA0-770

$5.87

31

BOLT, WIRE ADJUSTING

53193-968-000

$12.55

33

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.37

33

BOLT, HANDLE LEVER PIVOT This part replaces 90114-VM6-000.

90114-HA0-770

$2.37

34

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.90

36

NUT, FIXING

90321-315-670

$6.97

36

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.97

37

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

38

WASHER (9X20)

90504-HA0-000

$2.10

39

BAND, WIRE (95MM)

90650-KV6-003

$2.97

40

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

40

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

41

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

42

SCREW, PAN (4X16)

93500-04016-0G

$0.76

43

SCREW, PAN (5X14)

93500-05014-0G

$3.40

44

SCREW, PAN (5X18)

93500-05018-0G

$0.43

45

SCREW, PAN (5X25)

93500-05025-0G

$0.69

46

SCREW, FLAT (6X40)

93600-06040-0G

$0.76

48

NUT, HEX. (6MM)

94001-06070-0S

$1.21

49

NUT, HEX. (6MM)

94002-06000-0S

$1.21

50

PIN, SPRING (4X22)

94305-40222

$1.72
