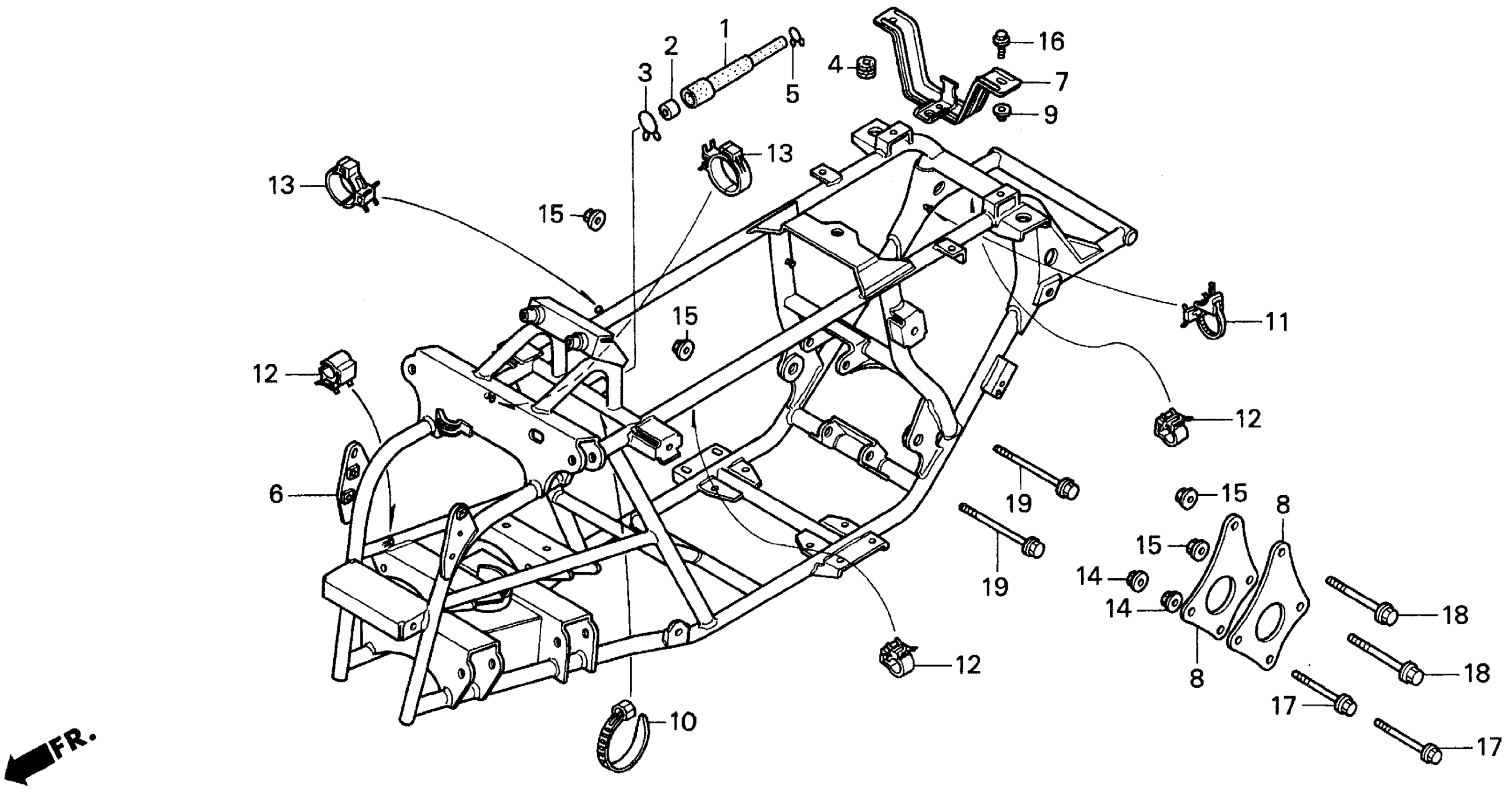

Honda TRX200DA (95) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE170-SA500001 FRAME Diagram

TUBE, BREATHER

15762-HF1-670

Unavailable

TUBE B, BREATHER

15763-HF1-670

Unavailable

CLIP, BYSTARTER CHAMBER

17211-GJ4-710

$3.36

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

CLIP, BREATHER TUBE

17316-611-000

$9.23

FRAME

50100-HF1-630

Unavailable

FRAME This part replaces 50100-HF1-910.

50100-HF1-630

Unavailable

STAY, BATTERY HOLDER

50311-HF1-630

Unavailable

STAY, BATTERY HOLDER This part replaces 50311-HF1-670.

50311-HF1-630

Unavailable

HANGER, FR. ENGINE

50351-HF1-910

$11.08

COLLAR, FR. FENDER SETTING

61107-KB5-000

$3.47

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (8X85)

95701-08085-00

$2.48

BOLT, FLANGE (10X85)

95701-10085-00

$2.67

BOLT, FLANGE (10X100)

95701-10100-00

$2.68
