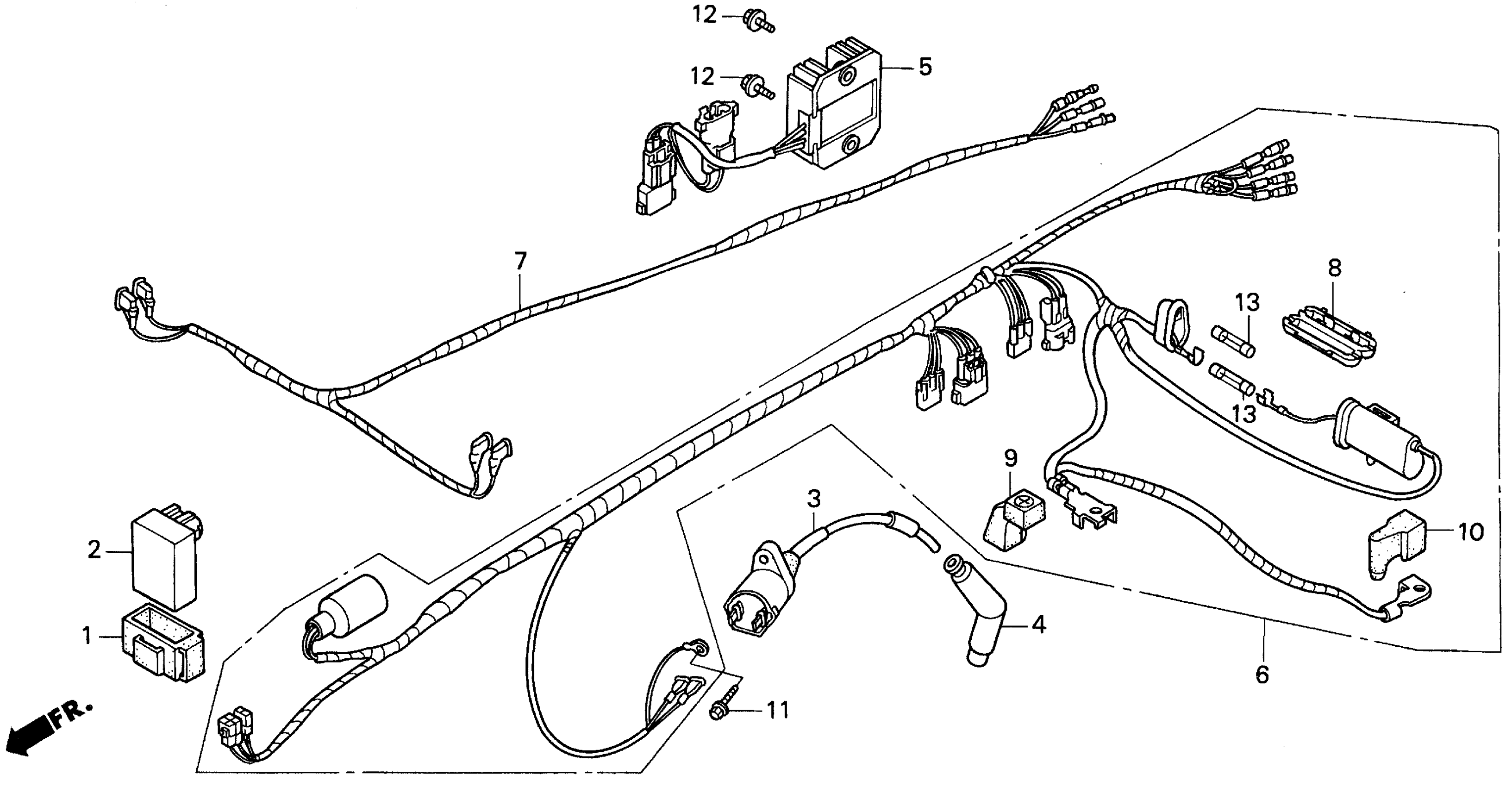

Honda TRX200A (90) FOURTRAX 200, USA, VIN# 478TE170-LA000001 TO 478TE170-LA000597 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HA0-000.

30401-KYY-900

$4.21

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-HF1-670

Unavailable

COIL, IGNITION

30510-GR2-405

$74.70

COIL, IGNITION This part replaces 30510-HF1-670.

30510-GR2-405

$74.70

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-HB3-003.

30700-HB3-013

$42.67

CAP ASSY., NOISE SUPPRESSOR

30700-HB3-013

$42.67

RECTIFIER, REGULATOR (NOT AVAILABLE)

31600-HF1-670

Unavailable

WIRE HARNESS This part replaces 32100-HF1-670.

32100-HF1-671

Unavailable

WIRE HARNESS

32100-HF1-671

Unavailable

CASE, FUSE (15A)

32120-465-770

Unavailable

COVER, BATTERY TERMINAL

32412-KJ9-000

Unavailable

COVER B, MAGNETIC SWITCH

32416-HB3-000

Unavailable

BOLT, FLANGE (5X22) This part replaces 90112-GK8-000.

90112-GK8-010

$2.84

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

FUSE B (15A)

98200-21500

$1.49
