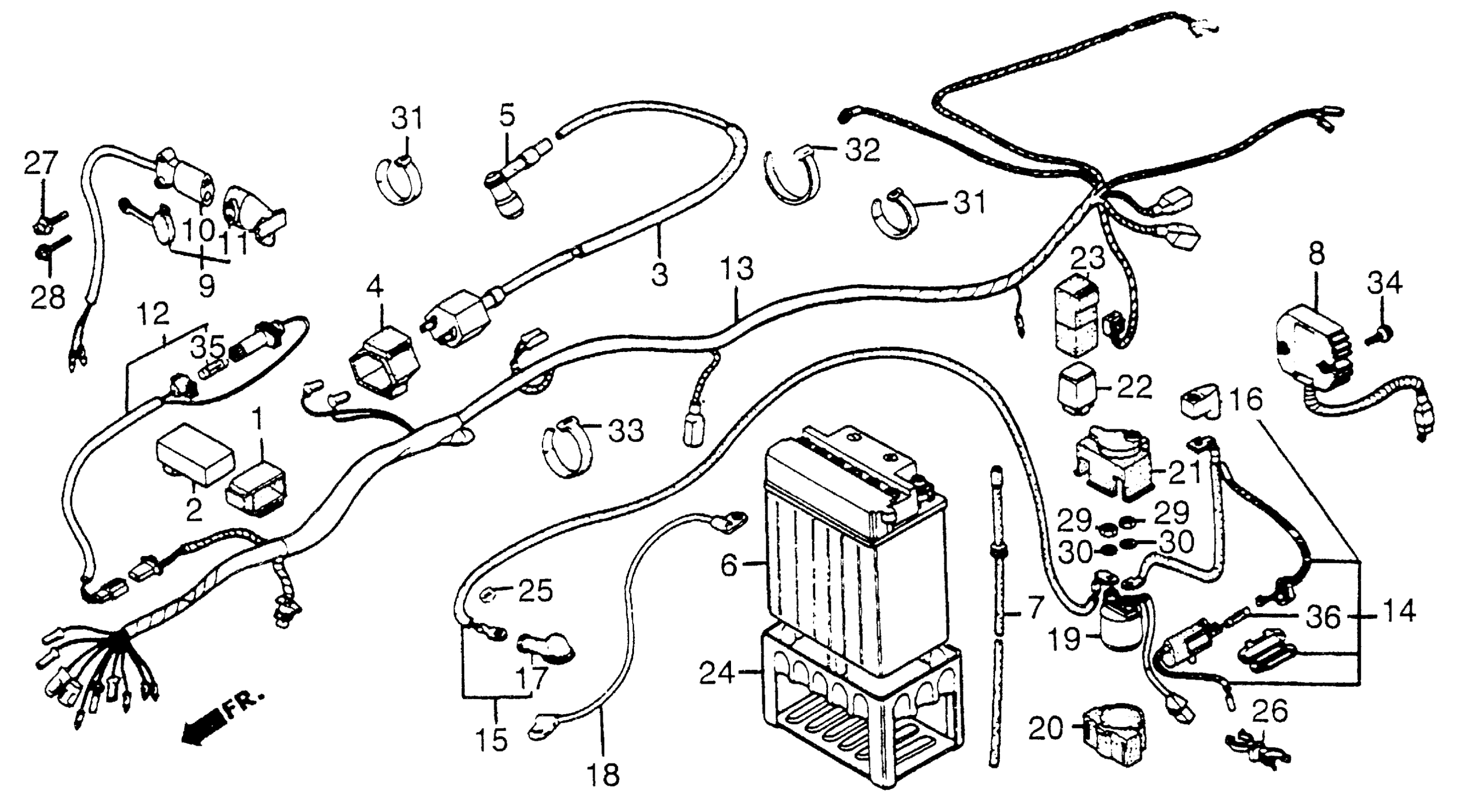

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

2

MODULE, IGNITION CONTROL (CDI)

30410-969-013

$220.53

3

COIL ASSY., IGNITION This part replaces 30500-VM5-000.

30500-VM5-405

Unavailable

3

COIL ASSY., IGNITION

30500-VM5-405

Unavailable

4

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

4

SUSPENSION, IGNITION COIL

30506-VM6-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

6

BATTERY ASSY. (YB14A-A2) (YUASA) This part replaces 31500-958-681.

31500-958-682AH

$90.74

6

BATTERY ASSY. (YB14A-A2) (YUASA) This part replaces 31500-958-682.

31500-958-682AH

$90.74

7

PIPE, BREATHER

31502-VM3-000

Unavailable

8

RECTIFIER ASSY., REGULATOR (NOT AVAILABLE)

31600-VM5-000

Unavailable

9

RECEPTACLE ASSY., D.C.

31650-VM5-003

$52.23

10

RECEPTACLE (N.H. COMPLIANCE)

31651-VM5-003

Unavailable

11

PLUG (N.H. COMPLIANCE)

31652-958-681

Unavailable

12

FUSE ASSY., RECEPTACLE (N.H. COMPLIANCE) (NOT AVAILABLE)

31655-VM5-000

Unavailable

13

WIRE HARNESS (NOT AVAILABLE)

32100-VM5-000

Unavailable

14

CABLE, RELAY BATTERY

32401-VM5-000

Unavailable

15

CABLE, STARTER MOTOR

32402-VM5-000

Unavailable

16

COVER, BATTERY TERMINAL

32411-MB2-000

Unavailable

17

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

17

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

18

CABLE, BATTERY GROUND (NOT AVAILABLE) This part replaces 32601-VM3-000.

32601-958-680

Unavailable

19

SWITCH ASSY., STARTER MAGNETIC

35850-HA8-771

Unavailable

19

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-VM3-010.

35850-HA8-771

Unavailable

19

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-VM3-020.

35850-HA8-771

Unavailable

20

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

21

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-969-000

Unavailable

22

RELAY, INHIBITER This part replaces 38321-969-003.

38500-969-405

Unavailable

22

RELAY, INHIBITER

38500-969-405

Unavailable

23

SUSPENSION, STARTER RELAY (NOT AVAILABLE)

38506-GJ8-004

Unavailable

24

RUBBER, BATTERY (NOT AVAILABLE)

50334-958-681

Unavailable

25

NUT-WASHER (6MM)

90071-MB0-000

$1.97

26

CLIP, WIRE

90655-969-003

Unavailable

27

SCREW-WASHER (5X20)

93891-05020-00

$1.49

28

SCREW-WASHER (5X22)

93894-05025-00

Unavailable

29

NUT, HEX. (6MM)

94002-06000-0S

$1.49

30

WASHER, SPRING (6MM)

94111-06000

$1.49

31

BAND B1, CABLE

32161-404-000

$2.23

31

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

32

BAND A2, CABLE

95014-61200

$2.33

33

BAND A3, CABLE

95014-61300

$1.97

34

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

34

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

35

FUSE A (10A)

98200-11000

$1.80

36

FUSE B (15A)

98200-21500

$1.49
