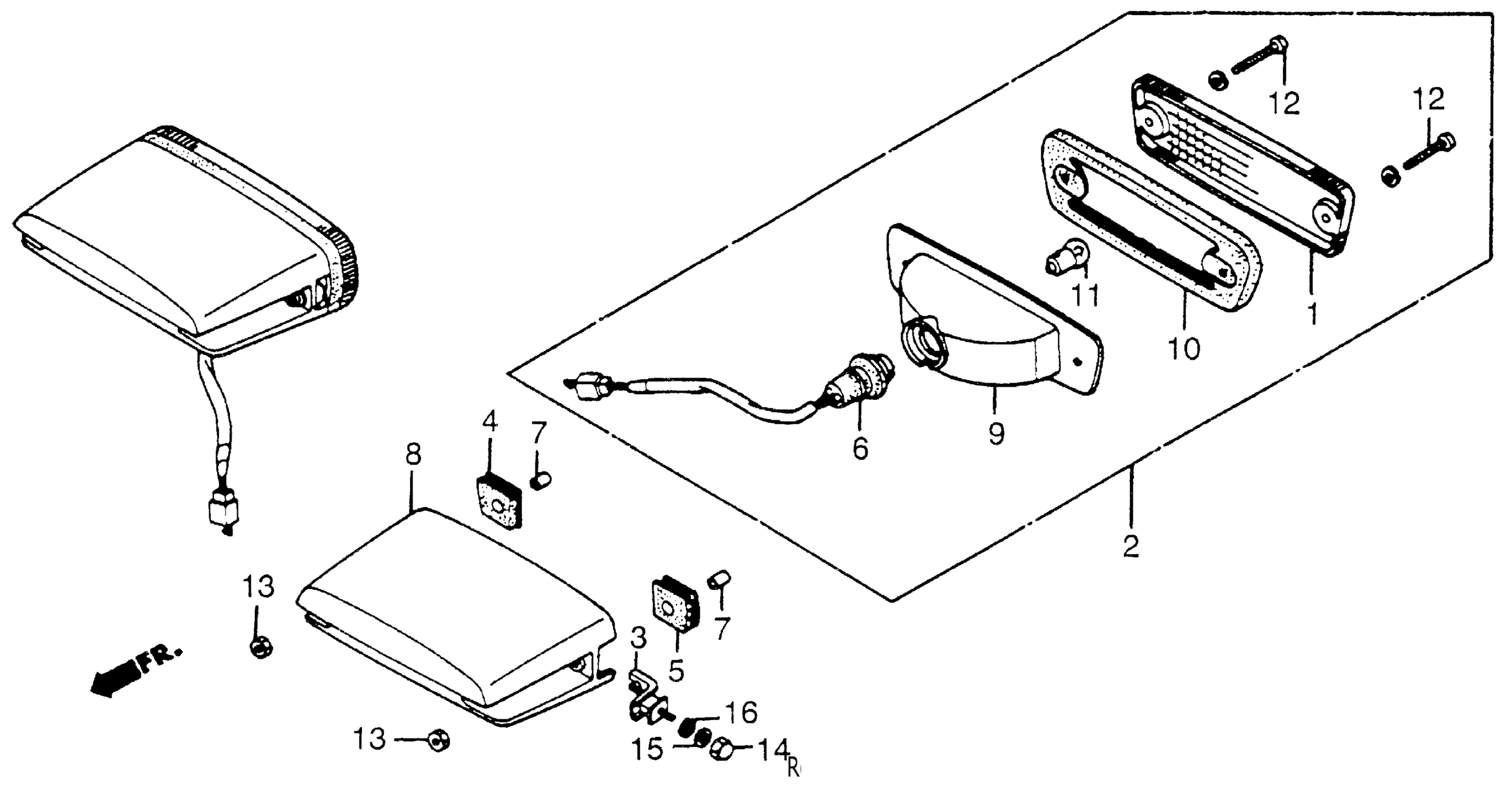

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 TAILLIGHT Diagram

#

Description
Price

1

LENS, TAILLIGHT

32152-942-000

Unavailable

2

TAILLIGHT ASSY. (12V 3.4W) (NOT AVAILABLE) This part replaces 33700-VM5-000.

33700-HA8-000

Unavailable

3

STAY, TAILLIGHT (NOT AVAILABLE) This part replaces 33701-VM5-000.

33701-VM5-010

Unavailable

3

STAY, TAILLIGHT (NOT AVAILABLE)

33701-VM5-010

Unavailable

4

RUBBER, R. TAILLIGHT SETTING

33707-VM5-000

Unavailable

5

RUBBER, L. TAILLIGHT MOUNTING (NOT AVAILABLE)

33708-VM5-000

Unavailable

6

SOCKET, TAILLIGHT (NOT AVAILABLE) This part replaces 33710-VM5-000.

33710-HA8-000

Unavailable

7

COLLAR, TAILLIGHT SETTING

33715-VM5-000

Unavailable

8

CASE, TAILLIGHT

33720-VM5-003

Unavailable

9

HOUSING, TAILLIGHT (NOT AVAILABLE)

34351-943-003

Unavailable

10

BASE, GASKET (NOT AVAILABLE)

34356-611-000

Unavailable

11

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

12

SCREW, PAN (3X30) This part replaces 90101-VM5-000.

93500-03030-0A

Unavailable

12

SCREW, PAN (3X30)

93500-03030-0A

Unavailable

13

NUT, HEX. (3MM)

94001-03000-0S

$1.49

14

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

14

NUT, CAP (6MM)

94021-06020

$1.73

14

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

14

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49
