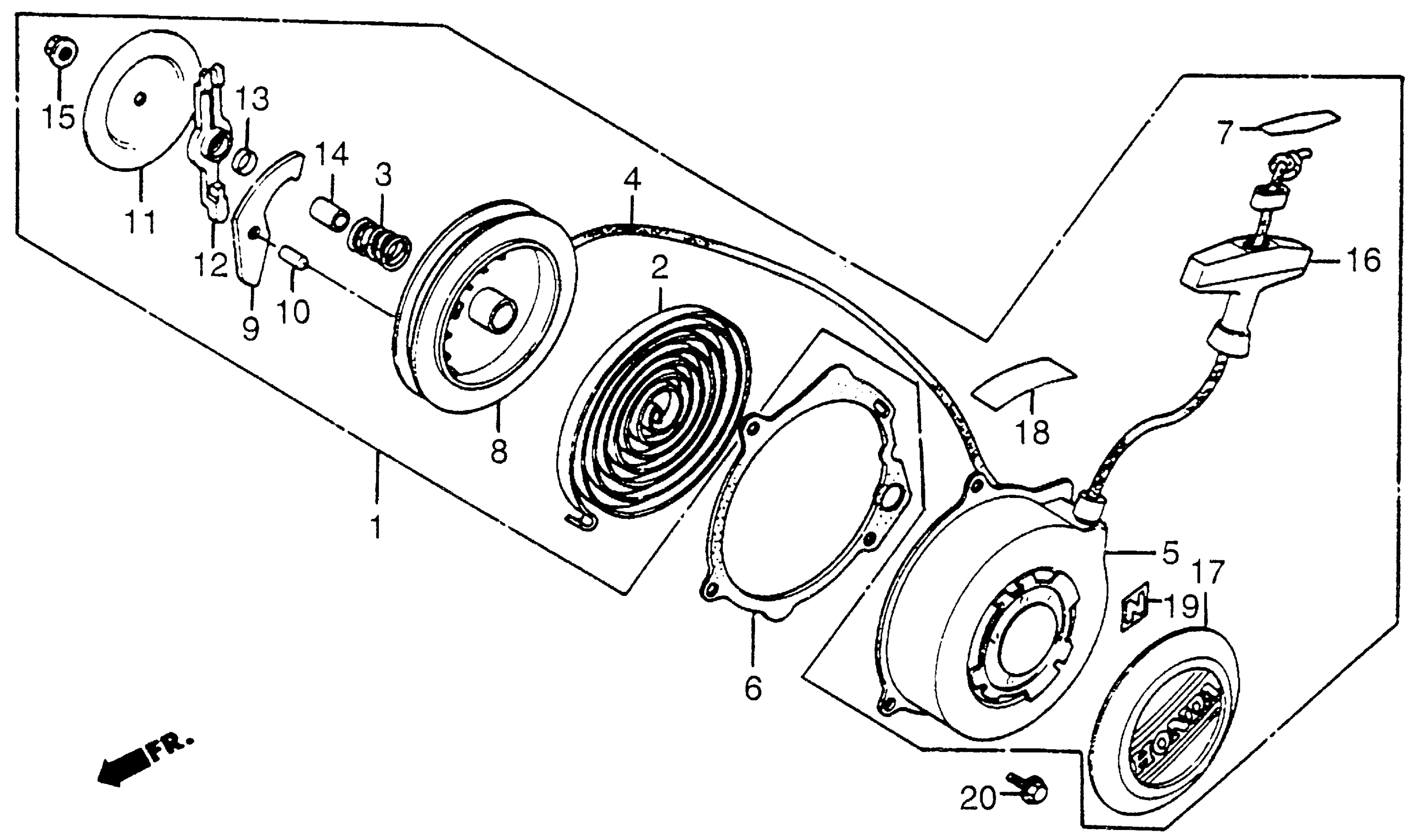

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 RECOIL STARTER Diagram

STARTER ASSY., RECOIL (NOT AVAILABLE)

28400-VM5-004

Unavailable

SPRING, RECOIL STARTER

28402-968-004

Unavailable

SPRING, FRICTION

28404-968-004

$3.38

ROPE, RECOIL STARTER

28407-958-004

Unavailable

CASE, RECOIL STARTER

28410-VM3-004

Unavailable

GASKET, RECOIL STARTER This part replaces 28411-VM3-000.

28411-VM3-306

Unavailable

GASKET, RECOIL STARTER

28411-VM3-306

Unavailable

CAP, KNOB

28414-958-004

Unavailable

REEL, STARTER

28420-968-004

Unavailable

RATCHET, STARTER

28422-ZE1-003

$4.80

PIN, STARTER RATCHET

28423-968-004

Unavailable

PLATE, FRICTION

28431-ZE1-003

$5.08

GUIDE, RATCHET

28433-968-004

Unavailable

COVER, SPRING

28446-968-004

$5.84

SHAFT, SUB

28447-968-004

Unavailable

NUT

28448-ZE1-003

Unavailable

KNOB, STARTER

28461-958-003

Unavailable

COVER, RECOIL STARTER

28470-968-004

Unavailable

MARK, NEUTRAL CAUTION (NOT AVAILABLE)

87103-VM5-000

Unavailable

LABEL, NEUTRAL (NOT AVAILABLE)

87105-958-680

Unavailable

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

BOLT, FLANGE (6X50)

95701-06050-00

$2.06
