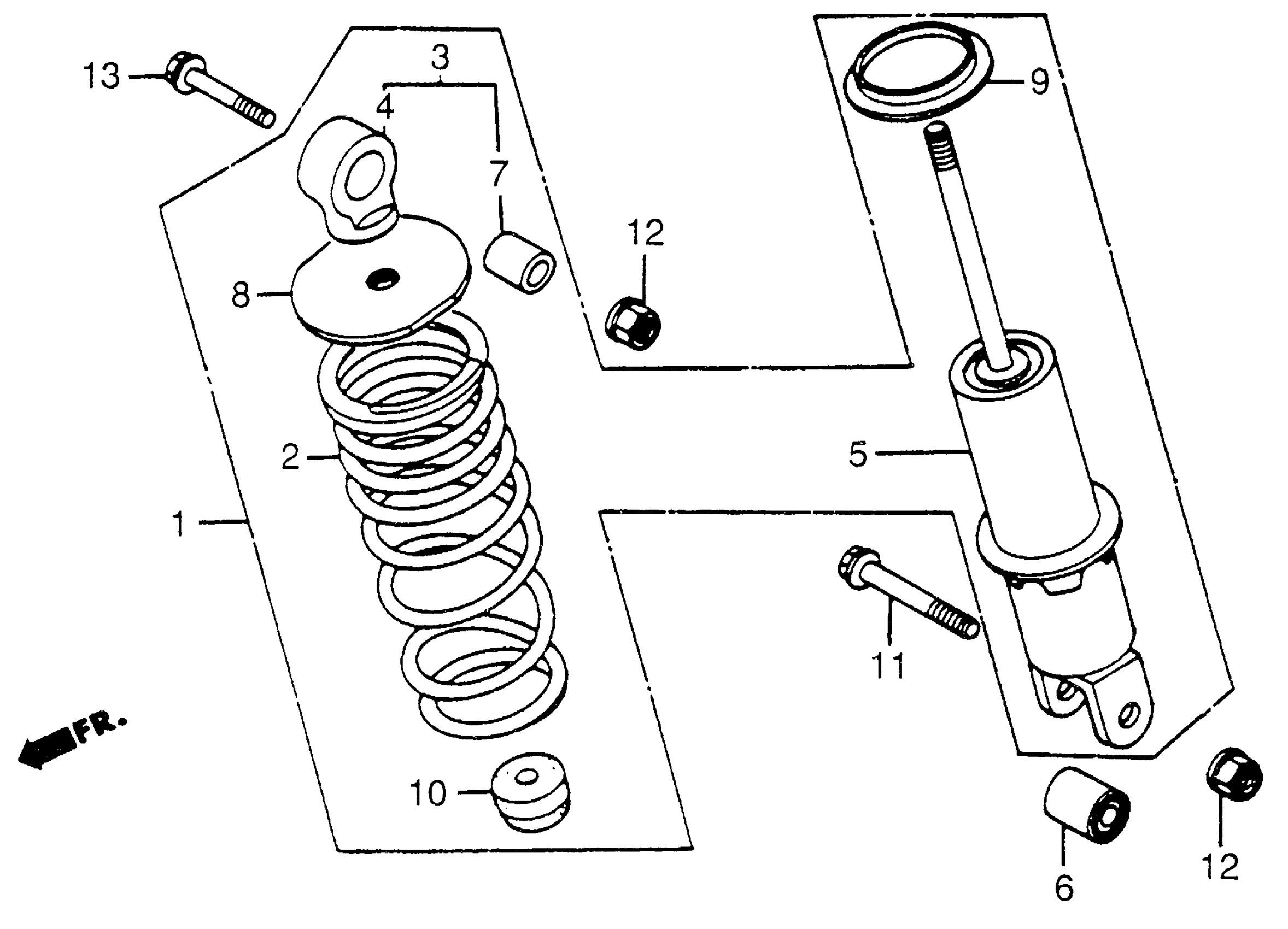

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-VM5-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER

52401-VM5-003

Unavailable

3

JOINT, METAL (NOT AVAILABLE)

52403-961-003

Unavailable

4

JOINT, METAL

52404-961-003

Unavailable

5

DAMPER, RR.

52410-VM5-003

Unavailable

6

BUSH, SHOCK ABSORBER

52451-VM5-000

Unavailable

7

BUSH, RR. SHOCK ABSORBER

52451-357-000

Unavailable

8

NUT, LOCK

52481-VM5-003

Unavailable

9

SEAT, SPRING (NOT AVAILABLE)

52515-VM5-003

Unavailable

10

RUBBER, STOPPER

52517-VM5-003

Unavailable

11

BOLT, FLANGE (10X60) This part replaces 90163-VM5-000.

95801-10060-08

$2.90

11

BOLT, FLANGE (10X60)

95801-10060-08

$2.90

12

NUT, U (10MM)

90304-GE8-003

$3.67

13

BOLT, FLANGE (10X45) This part replaces 95800-10045-00.

95801-10045-00

$2.16

13

BOLT, FLANGE (10X45)

95801-10045-00

$2.16
