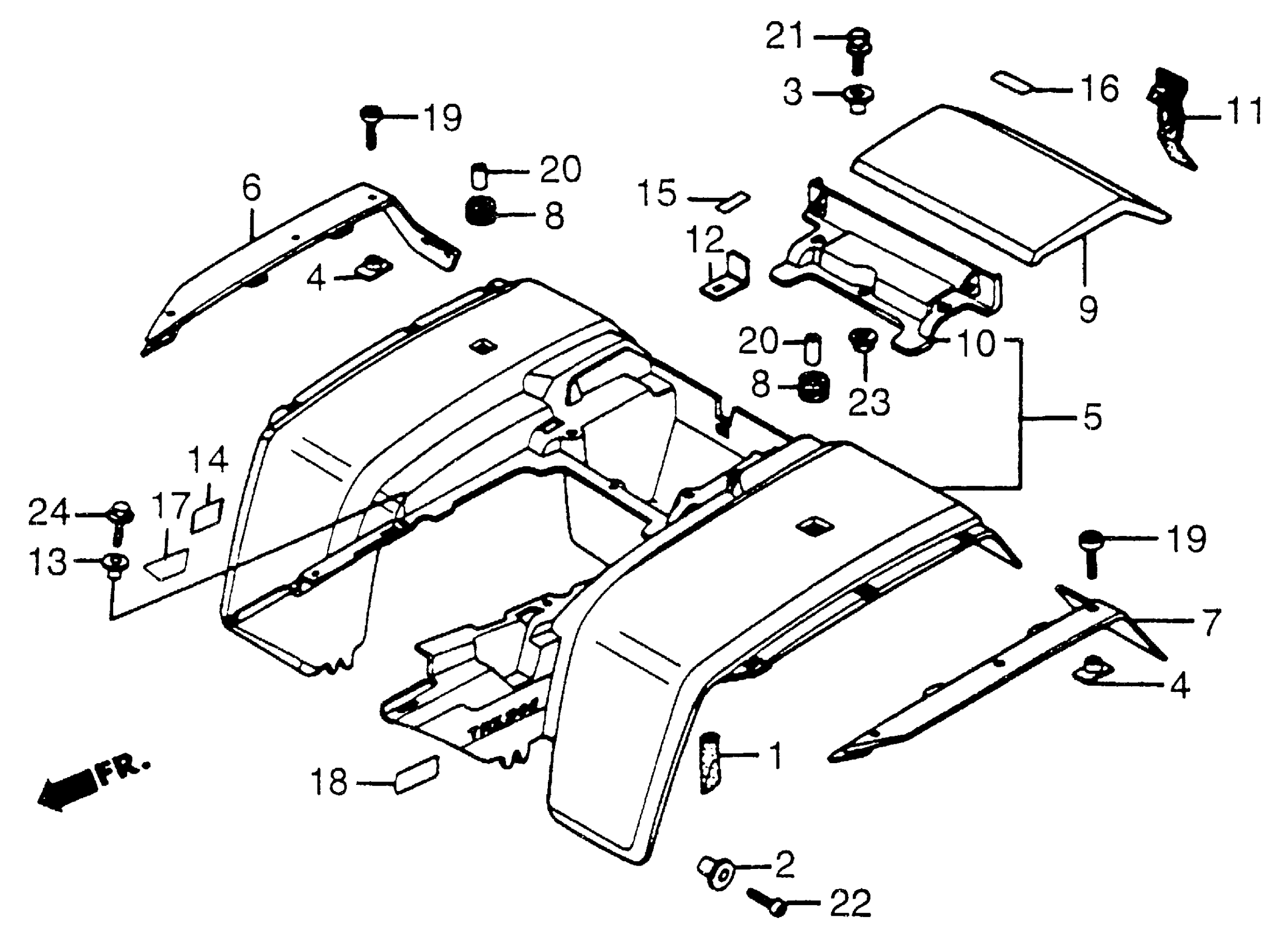

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 REAR FENDER Diagram

TUBE, DRAIN

17358-VM4-000

$10.24

COLLAR, FR. FENDER

61104-VM5-000

Unavailable

COLLAR, SIDE COVER

61104-435-000

$5.05

NUT, SPECIAL (6X7)

61304-958-003

$3.24

FENDER ASSY., RR. *R109* (PASSION RED) (NOT AVAILABLE)

80100-VM5-000ZA

Unavailable

SPLASH GUARD, R. RR. *NH105* (MAT BLACK) (NOT AVAILABLE)

80111-VM5-000ZA

Unavailable

SPLASH GUARD, L. RR. *NH105* (MAT BLACK) (NOT AVAILABLE)

80116-VM5-000ZA

Unavailable

RUBBER, RR. FENDER

80152-958-680

$5.14

LID, TOOL BOX *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 80211-HA8-000ZA.

80211-HA8-010ZA

Unavailable

LID, TOOL BOX *NH105* (MAT BLACK) (NOT AVAILABLE)

80211-HA8-010ZA

Unavailable

LID, TOOL BOX *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 80211-VM5-000ZA.

80211-HA8-010ZA

Unavailable

COVER, TOOL BOX *R109* (PASSION RED)

80212-VM5-000ZA

Unavailable

BAND, TOOL BOX

80214-943-000

Unavailable

STAY, TOOL BOX (NOT AVAILABLE)

81215-VM5-000

Unavailable

COLLAR

84706-415-000

$2.23

LABEL, DECOMPRESSION

87135-VM5-000

Unavailable

LABEL, CONDENSER FUSE

87137-VM5-000

Unavailable

LABEL, OPERATOR WARNING (NOT AVAILABLE)

87510-VM5-000

Unavailable

LABEL, TIRE CAUTION

87533-VM5-000

Unavailable

LABEL, REVERSE CAUTION

87570-VM5-000

Unavailable

SCREW, SPLASH GUARD

90103-VM4-000

$10.13

SCREW, SPLASH GUARD

90103-VM4-003

$10.13

SCREW, SPLASH GUARD

90120-HA7-670

$10.13

COLLAR (8MM)

90324-449-000

Unavailable

BOLT-WASHER (6X25)

93404-06025-08

$1.87

BOLT-WASHER (6X25) This part replaces 93494-06025-08.

93404-06025-08

$1.87

SCREW, PAN (6X16)

93500-06016-0G

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
