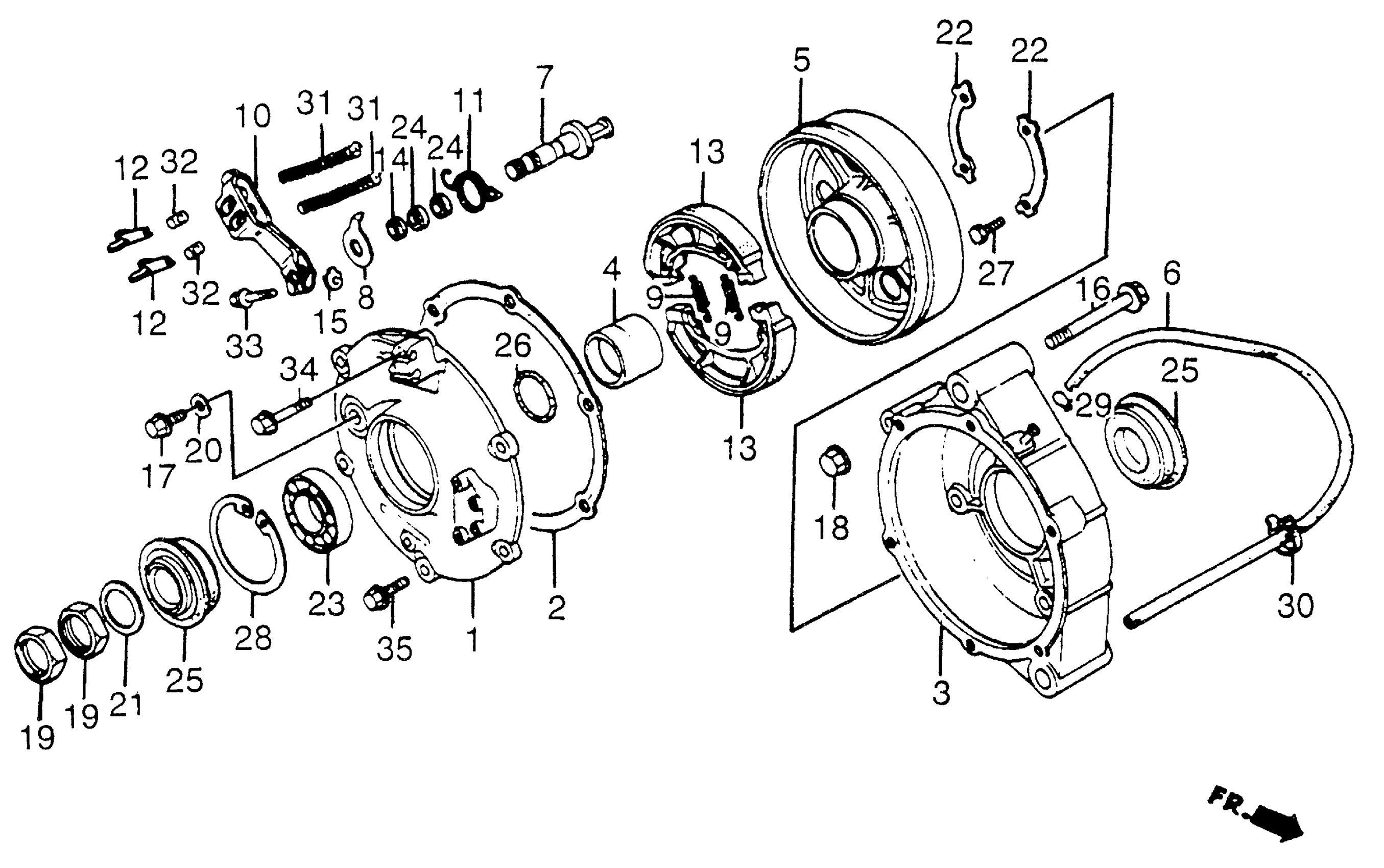

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 REAR BRAKE DRUM Diagram

#

Description
Price

1

COVER, RR. BRAKE DRUM (NOT AVAILABLE)

40532-VM5-000

Unavailable

2

GASKET, BRAKE COVER This part replaces 40539-969-000.

40539-969-505

Unavailable

2

GASKET, BRAKE COVER

40539-969-505

Unavailable

3

CASE, RR. BRAKE DRUM

41302-VM5-000

Unavailable

4

COLLAR, RR. AXLE

42621-969-000

Unavailable

5

DRUM, RR. BRAKE (NOT AVAILABLE)

42622-969-000

Unavailable

6

TUBE, BREATHER

43122-VM5-000

Unavailable

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-969-000

Unavailable

8

INDICATOR, BRAKE

43145-VM5-000

Unavailable

9

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

10

ARM, RR. BRAKE (NOT AVAILABLE)

43410-VM5-000

Unavailable

11

SPRING, RR. BRAKE ARM RETURN

43413-969-000

Unavailable

12

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

12

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$9.78

13

SHOE SET, BRAKE This part replaces 43120-968-681.

06430-HF7-A30

$32.48

13

SHOE SET, BRAKE This part replaces 45120-303-690.

06430-HF7-A30

$32.48

14

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

15

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

16

BOLT, FLANGE (12X193)

90106-HE0-000

Unavailable

16

BOLT, FLANGE (12X193) This part replaces 90108-VM5-000.

90106-HE0-000

Unavailable

17

BOLT, SEALING (8MM)

90109-371-000

$2.58

18

NUT, FLANGE (12MM)

90306-181-761

$6.08

19

NUT, RR. AXLE

90307-968-000

Unavailable

20

WASHER (8MM)

90471-580-000

$2.92

21

WASHER, TAPER

90481-HC4-000

$7.70

21

WASHER, TAPER This part replaces 90481-958-000.

90481-HC4-000

$7.70

22

WASHER, TONGUED (NOT AVAILABLE)

90513-969-000

Unavailable

23

BEARING, RADIAL BALL (6909UU)

91053-969-003

Unavailable

23

BEARING, RADIAL BALL (6909UU) This part replaces 91053-969-004.

91053-969-003

Unavailable

24

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

25

DUST SEAL (45X65X15)

91253-968-005

$29.38

26

O-RING (31.7X2.4)

91306-MA6-005

$3.44

26

O-RING (31.7X2.4) This part replaces 91307-958-003.

91306-MA6-005

$3.44

27

BOLT, HEX. (8X28) This part replaces 92200-08028-0H.

92201-08028-0H

Unavailable

27

BOLT, HEX. (8X28)

92201-08028-0H

Unavailable

28

CIRCLIP (INNER) (68MM)

94524-68000

Unavailable

29

CLIP, TUBE (B7)

95002-02070

$1.80

30

BAND B1, CABLE

32161-404-000

$2.23

30

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

31

SPRING A, BRAKE ROD

95014-73100

$1.49

32

JOINT, BRAKE ARM

95015-32001

$1.49

33

BOLT, FLANGE (6X28) This part replaces 95700-06028-08.

95701-06028-08

$2.08

33

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

34

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

34

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

35

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

35

BOLT, FLANGE (8X45) This part replaces 95720-08045-00.

95701-08045-00

$1.49
