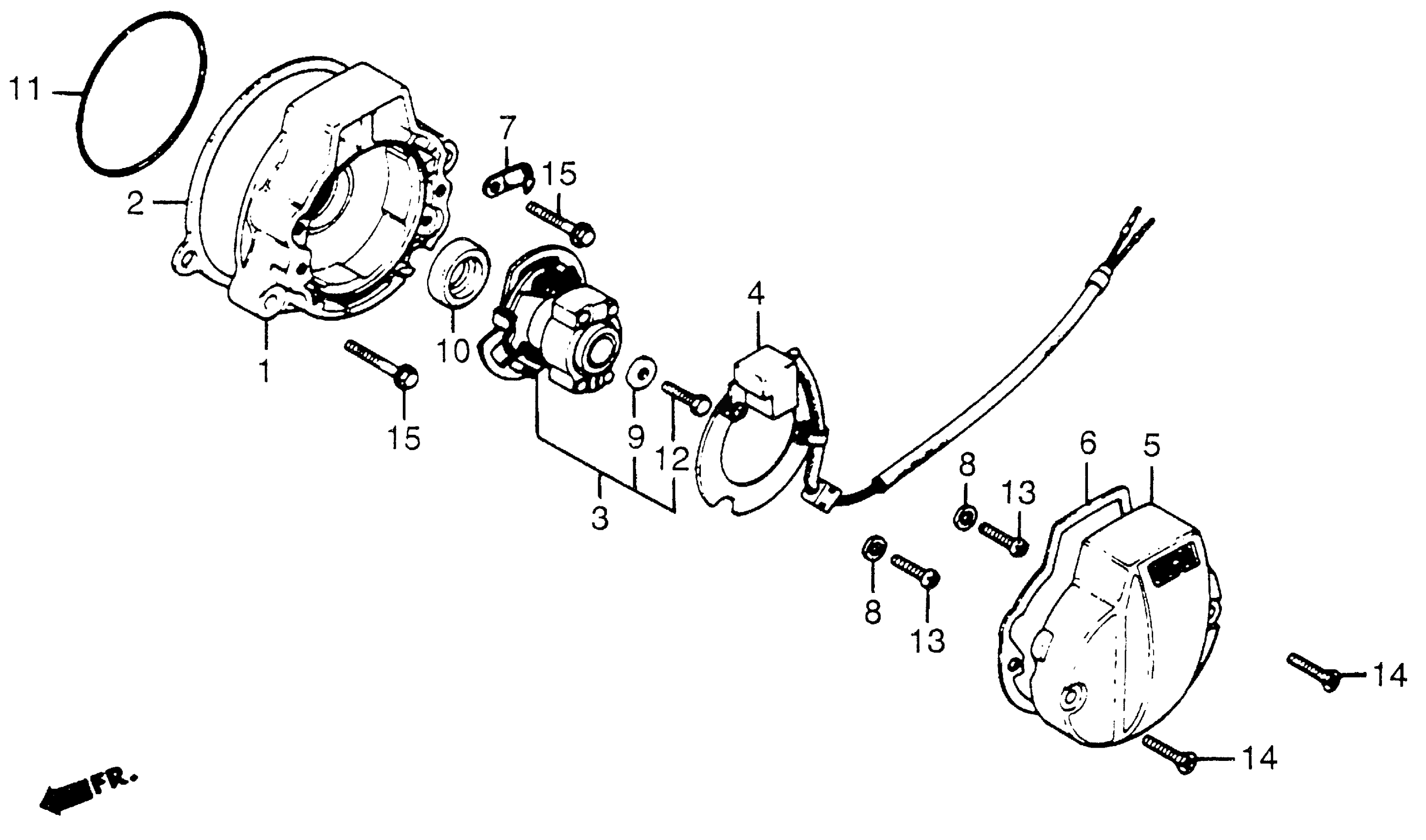

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 PULSE GENERATOR Diagram

BASE, PULSE GENERATOR

12332-958-000

Unavailable

GASKET This part replaces 12339-KT0-710.

12339-KT0-712

$7.04

GASKET This part replaces 12339-437-003.

12339-KT0-712

$7.04

GASKET This part replaces 12339-437-306.

12339-KT0-712

$7.04

ADVANCER ASSY., SPARK

30220-VM3-000

Unavailable

GENERATOR ASSY., PULSE

30300-958-010

Unavailable

COVER, PULSE GENERATOR

30370-KA2-000

Unavailable

GASKET, PULSE GENERATOR COVER This part replaces 30372-KA2-000.

30372-KT0-710

$5.37

GASKET, PULSE GENERATOR COVER

30372-KT0-710

$5.37

CLAMP, CABLE

32111-323-000

$3.98

WASHER (5MM)

90482-028-000

$2.09

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.41

OIL SEAL (15X25X7)

91203-965-003

$6.41

O-RING (75X2.5)

91301-107-000

$4.87

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014-0A.

92101-06014-0A

$1.49

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92100-06014.

92101-06014-0A

$1.49

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
