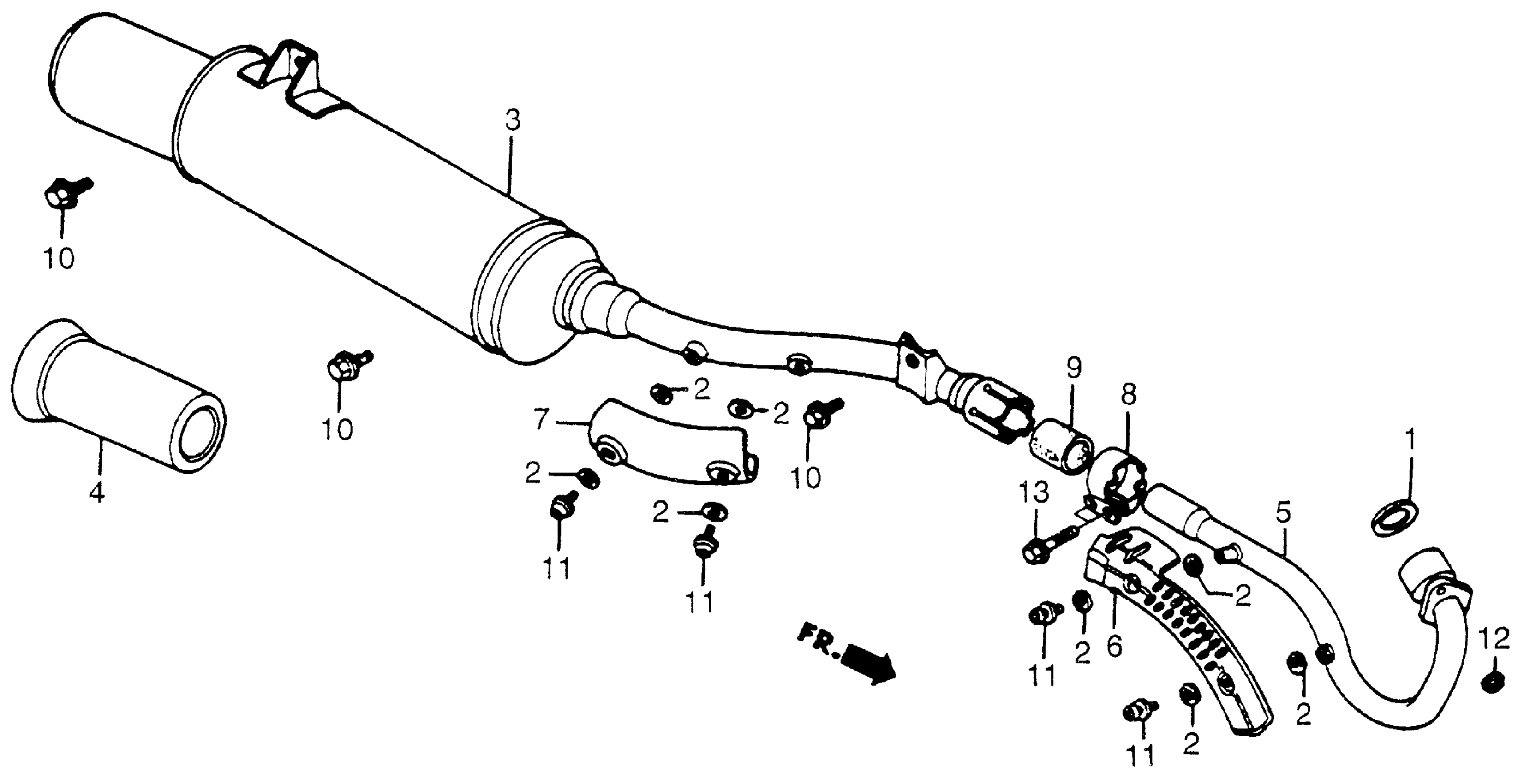

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

GASKET, PROTECTOR

18293-MCA-780

$4.85

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

MUFFLER

18310-VM5-003

Unavailable

PIPE, TAIL (NOT AVAILABLE)

18311-965-003

Unavailable

PIPE, EX. (NOT AVAILABLE)

18320-958-682

Unavailable

PROTECTOR, EX. PIPE

18321-437-010

Unavailable

PROTECTOR, FR. MUFFLER (NOT AVAILABLE) This part replaces 18322-VM5-003.

18322-VM5-013

Unavailable

PROTECTOR, FR. MUFFLER (NOT AVAILABLE)

18322-VM5-013

Unavailable

BAND, MUFFLER This part replaces 18371-KA2-000.

18371-VM5-000

$21.91

BAND, MUFFLER

18371-VM5-000

$21.91

GASKET, MUFFLER

18391-958-306

$18.93

GASKET, MUFFLER This part replaces 18391-958-681.

18391-958-306

$18.93

BOLT-WASHER (8X12)

90156-964-670

Unavailable

SCREW-WASHER (6X10)

93891-06010-08

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

BOLT, FLANGE (8X28)

95701-08028-08

$2.06
