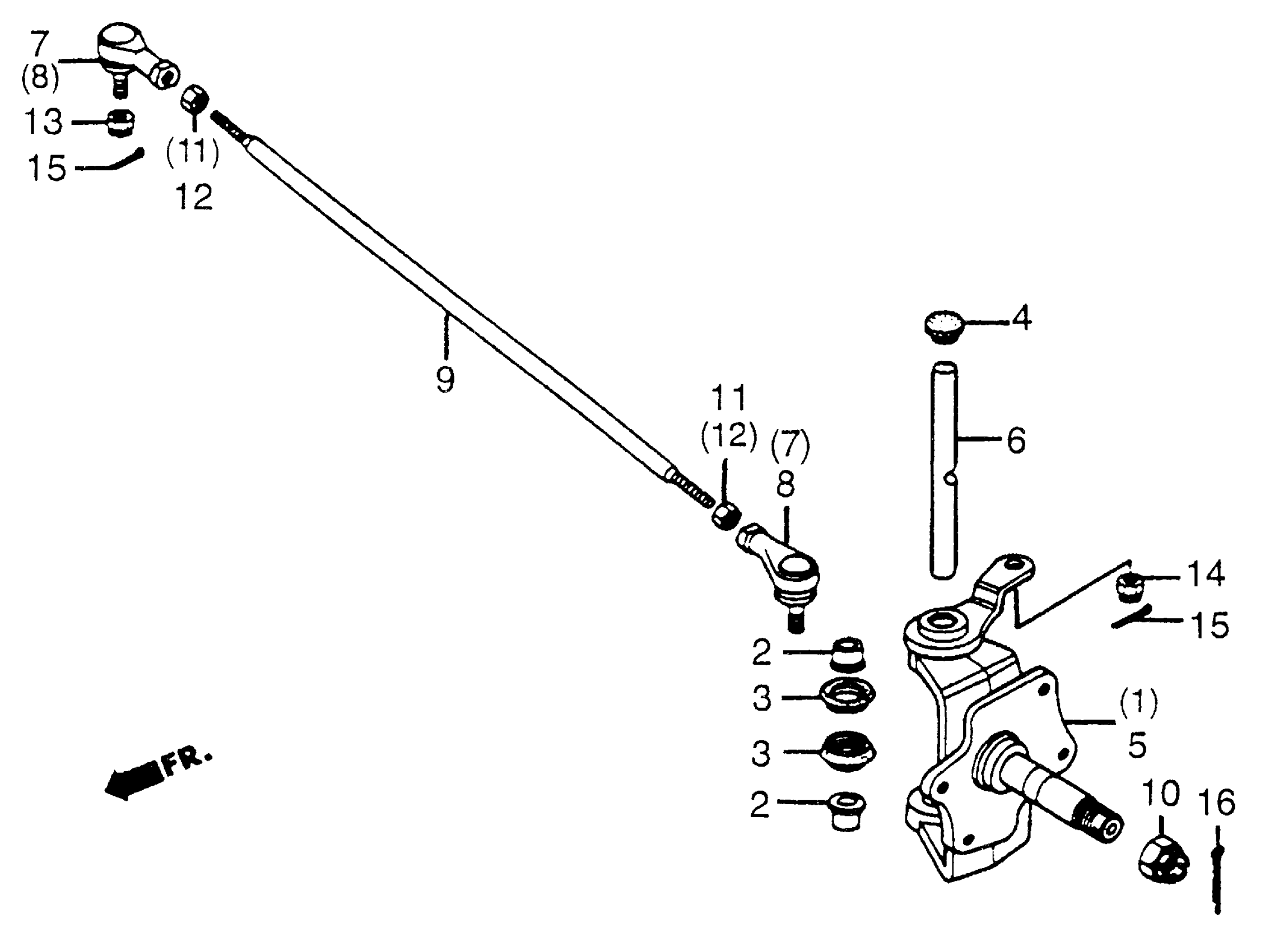

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 KNUCKLE + TIE ROD Diagram

KNUCKLE, R. (NOT AVAILABLE)

51210-VM5-000

Unavailable

BUSH, KINGPIN

51215-950-000

$27.74

DUST SEAL, KINGPIN This part replaces 51217-VM5-000.

51217-VM5-003

$4.67

DUST SEAL, KINGPIN

51217-VM5-003

$4.67

DUST SEAL, KINGPIN This part replaces 51217-VM5-004.

51217-VM5-003

$4.67

CAP, KINGPIN HOLDER

51219-950-000

Unavailable

KNUCKLE, L. (NOT AVAILABLE)

51220-VM5-000

Unavailable

KINGPIN

51222-950-000

Unavailable

JOINT, BALL (RIGHT HAND THREAD)

53150-HB3-003

$68.76

JOINT, BALL (RIGHT HAND THREAD) This part replaces 53150-950-003.

53150-HB3-003

$68.76

JOINT, BALL (LEFT HAND THREAD)

53158-HB3-003

$64.05

JOINT, BALL (LEFT HAND THREAD) This part replaces 53158-950-003.

53158-HB3-003

$64.05

TIE ROD

53521-VM5-000

Unavailable

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

NUT, HEX. (10MM) (LEFT HAND THREAD) This part replaces 90311-VM5-000.

90311-VM5-010

$2.92

NUT, HEX. (10MM) (LEFT HAND THREAD)

90311-VM5-010

$2.92

NUT, HEX. (10MM)

94002-10200-0S

$1.49

NUT, CASTLE (10MM)

94011-10000-0S

Unavailable

NUT, CASTLE (10MM)

94012-10000-0S

Unavailable

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

PIN, COTTER (4.0X30)

94201-40300

$1.49
