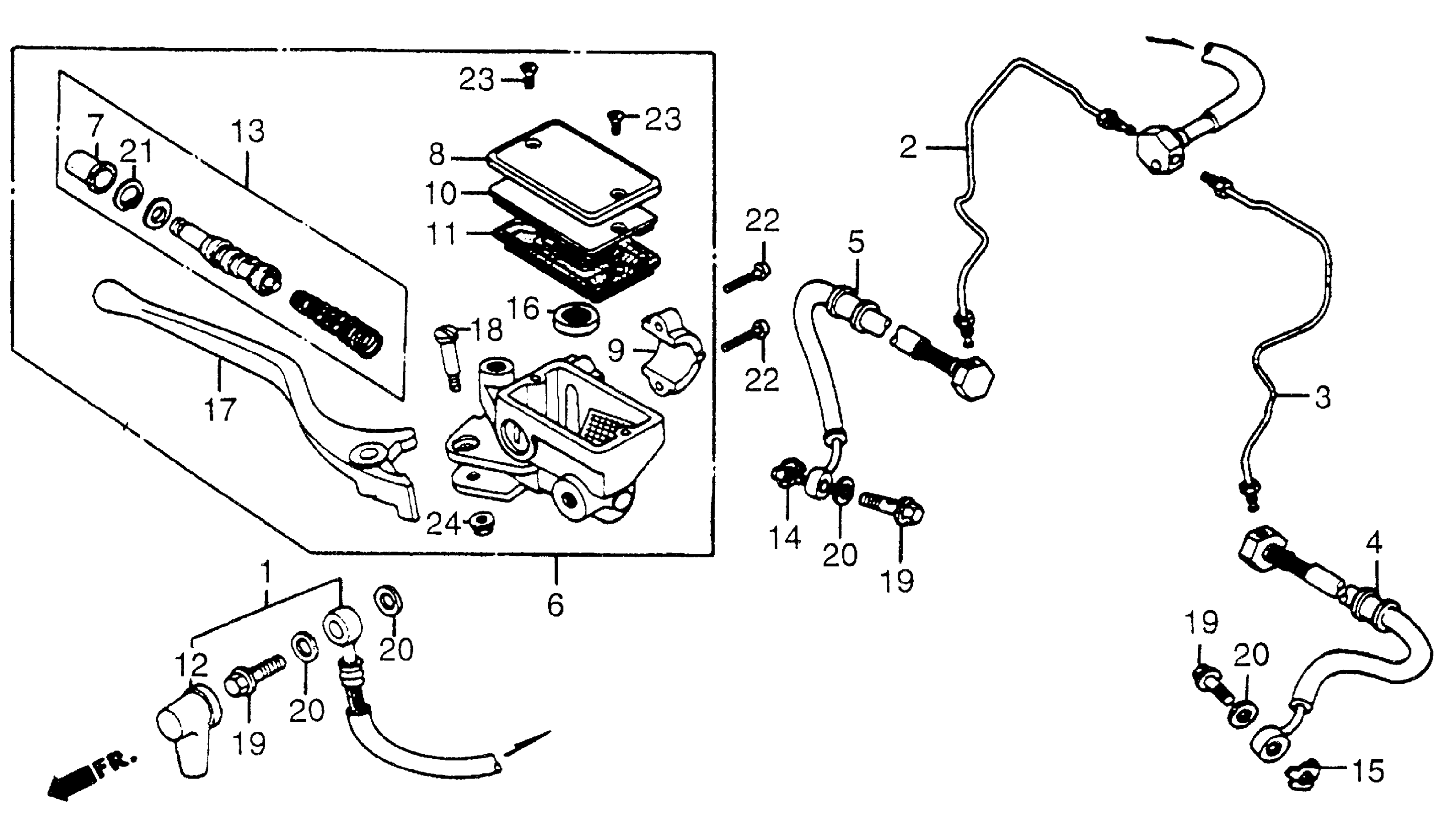

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE A, FR. BRAKE (NOT AVAILABLE)

45123-VM5-003

Unavailable

2

PIPE, R. FR. BRAKE

45124-VM5-000

Unavailable

3

PIPE, L. FR. BRAKE (NOT AVAILABLE)

45125-VM5-000

Unavailable

4

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45126-VM5-003

Unavailable

5

HOSE, R. FR. BRAKE (NOT AVAILABLE)

45127-VM5-003

Unavailable

6

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-VM5-405)

45500-VM5-006

Unavailable

7

BOOT

45504-410-003

$10.93

8

CAP, MASTER CYLINDER

45513-KE5-026

$37.51

9

HOLDER, MASTER CYLINDER

45517-MA5-671

$26.32

10

PLATE, DIAPHRAGM

45518-MB4-671

$10.89

11

DIAPHRAGM

45520-MA5-672

$16.27

12

BOOT, MASTER CYLINDER

45522-422-000

$7.79

13

MASTER CYLINDER SET

45530-471-831

Unavailable

14

WASHER, OIL BOLT (NOT AVAILABLE)

45535-VM5-000

Unavailable

15

WASHER, OIL BOLT

45545-VM5-000

Unavailable

16

SEPARATOR

46666-961-013

$7.46

17

LEVER, R. HANDLE

53175-HA8-680

$26.13

17

LEVER, R. HANDLE This part replaces 53175-VM5-000.

53175-HA8-680

$26.13

18

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

19

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$9.89

19

BOLT, OIL (10X22)

90145-KM3-751

$9.89

19

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$9.89

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

CIRCLIP

90651-MA5-671

$2.38

22

SCREW, PAN (6X22)

93500-06022-0A

$1.12

23

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

24

NUT, FLANGE (6MM)

94050-06000

$0.59
