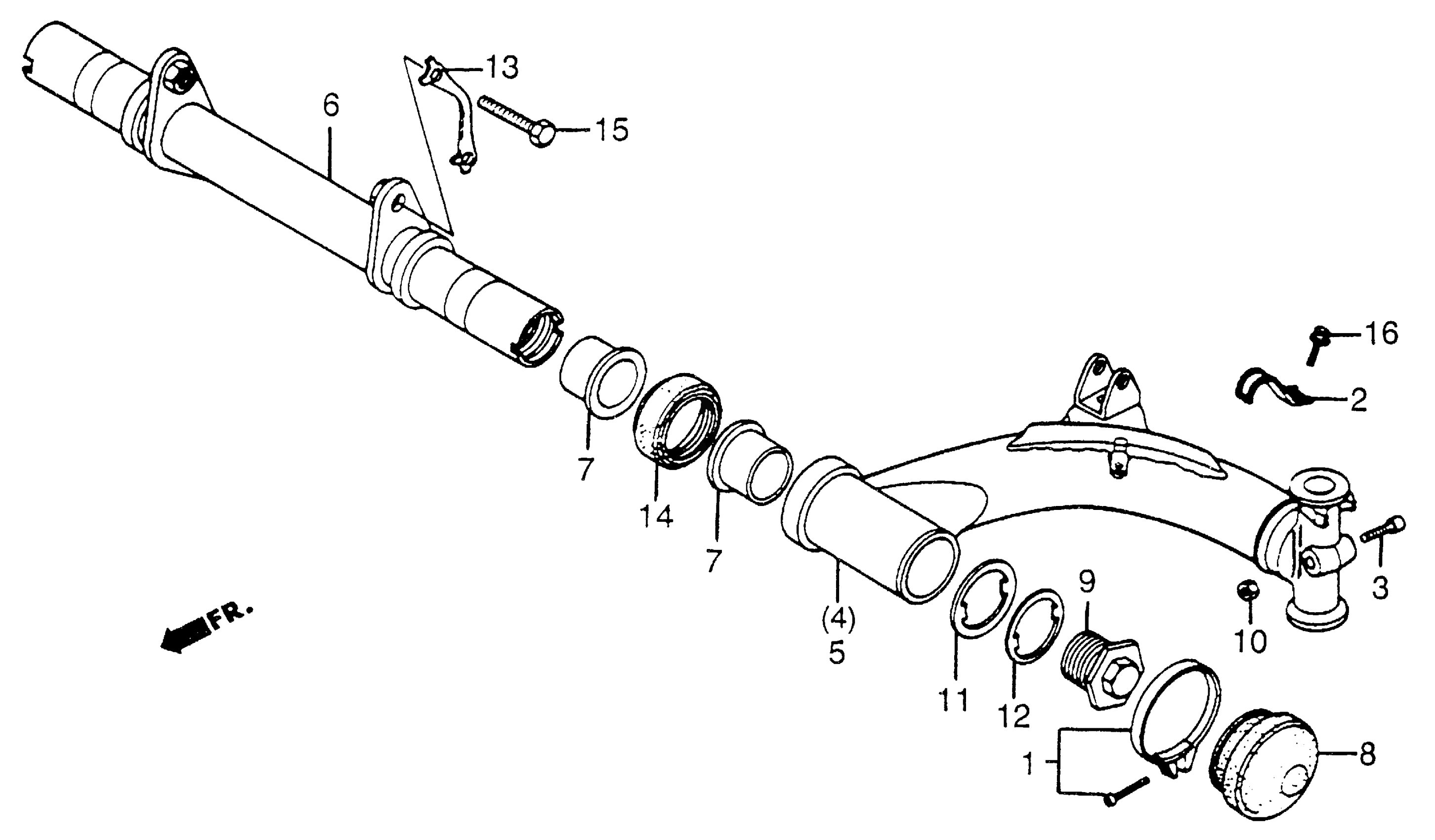

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 FRONT ARM Diagram

#

Description
Price

1

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-358-000.

95018-60250

$6.25

1

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

2

CLAMP, FR. BRAKE HOSE

51205-VM0-000

Unavailable

3

BOLT, KINGPIN LOCK (NOT AVAILABLE)

51223-VM5-000

Unavailable

4

ARM, R. FR. (NOT AVAILABLE)

51310-VM5-000

Unavailable

5

ARM, L. FR. (NOT AVAILABLE)

51320-VM5-000

Unavailable

6

HINGE, FR. ARM (NOT AVAILABLE)

51330-VM5-000

Unavailable

7

BUSH A, FR. ARM

51392-VM5-003

Unavailable

8

COVER, FR. ARM DUST

51399-VM5-000

Unavailable

9

BOLT, FR. ARM HINGE

90104-VM5-000

Unavailable

10

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

10

NUT, FLANGE (8MM)

90309-428-731

$3.35

11

WASHER (42.5X58) (NOT AVAILABLE)

90503-VM5-000

Unavailable

12

WASHER, TONGUED (NOT AVAILABLE)

90504-VM5-000

Unavailable

13

WASHER, TONGUED

90506-VM5-000

Unavailable

14

DUST SEAL, FR. ARM (55X65X8)

91252-VM5-004

Unavailable

15

BOLT, HEX. (12X25) This part replaces 92000-12025-0H.

92101-12025-0H

$2.57

15

BOLT, HEX. (12X25)

92101-12025-0H

$2.57

16

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

16

BOLT, FLANGE (6X10) This part replaces 95900-06010-07.

95701-06010-07

$1.62
