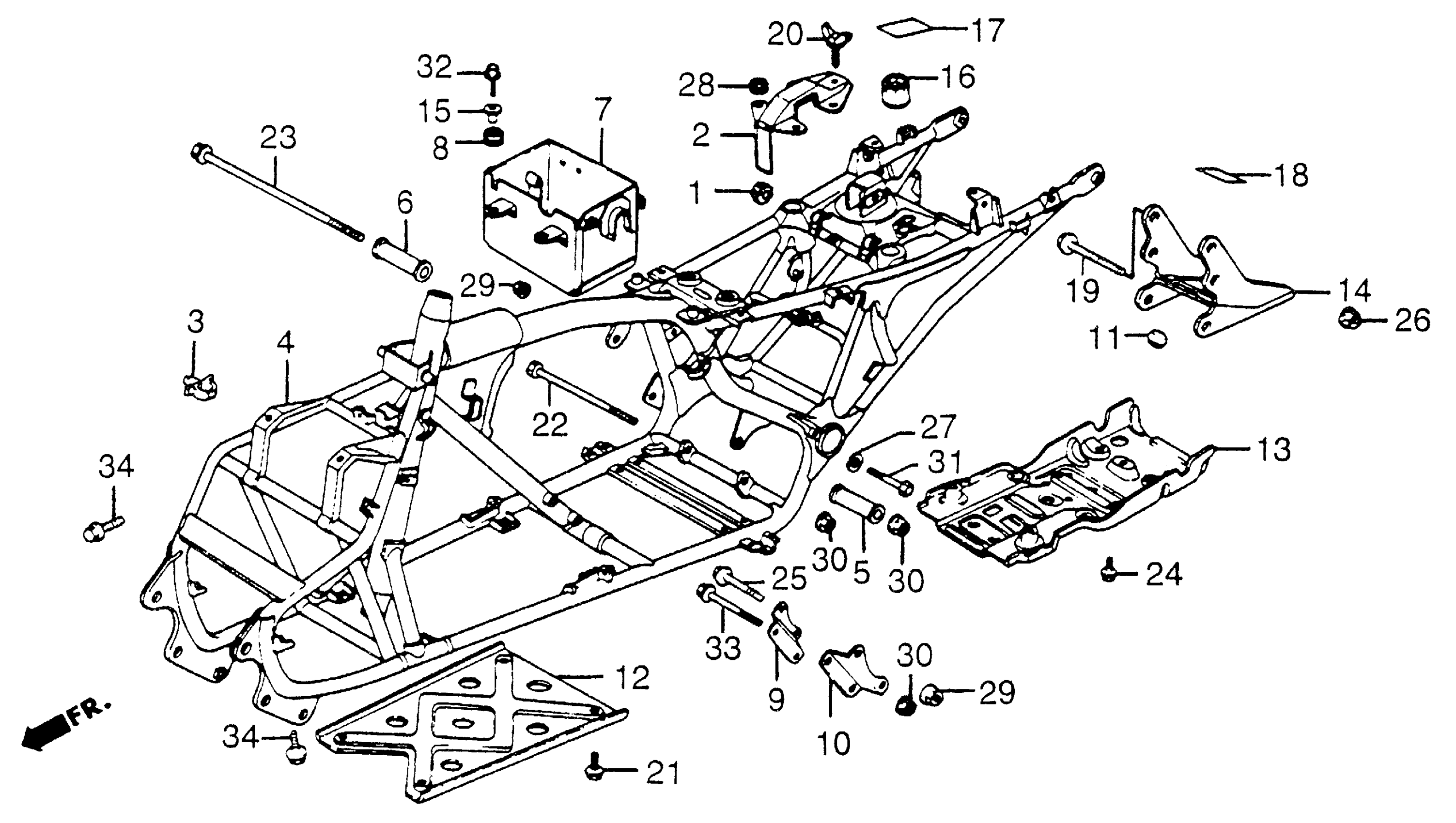

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 FRAME Diagram

#

Description
Price

1

RUBBER, FR. TANK

17611-437-000

$6.63

2

HOLDER, BATTERY BOX (NOT AVAILABLE)

31512-958-680

Unavailable

3

CLIP A, BRAKE PIPE

46391-VM0-003

$2.44

4

FRAME

50100-VM5-000

Unavailable

5

COLLAR, L. ENGINE MOUNTING (NOT AVAILABLE)

50250-958-680

Unavailable

6

COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)

50252-958-680

Unavailable

7

BOX, BATTERY

50325-VM5-000

Unavailable

8

RUBBER, BATTERY BOX MOUNTING (NOT AVAILABLE)

50329-968-000

Unavailable

9

HANGER, R. ENGINE (NOT AVAILABLE)

50351-VM5-000

Unavailable

10

HANGER, L. ENGINE

50352-VM5-000

Unavailable

11

RUBBER A, STOPPER

50352-969-000

Unavailable

12

PLATE, FR. SKID

50354-VM5-000

Unavailable

13

PLATE, SKID (NOT AVAILABLE)

50355-VM5-000

Unavailable

14

HITCH, TRAILER

50810-VM5-000

Unavailable

15

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

15

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

15

COLLAR, RR. FENDER

61105-428-000

Unavailable

16

RUBBER, SEAT SETTING

77207-HA0-000

$7.14

16

RUBBER, SEAT SETTING This part replaces 77207-958-670.

77207-HA0-000

$7.14

17

LABEL, MAIN FUSE (NOT AVAILABLE)

87136-VM5-000

Unavailable

18

LABEL, TRAILER HITCH (NOT AVAILABLE)

87508-VM5-000

Unavailable

19

BOLT, FLANGE (10X110)

90105-MG3-000

$9.23

20

BOLT, WING This part replaces 90105-958-680.

90105-958-405

Unavailable

21

BOLT, FLANGE (6X12)

90118-958-003

$3.24

22

BOLT, HEX. (10X115)

90125-958-000

Unavailable

23

BOLT, HEX. (10X240)

90135-958-000

$12.48

24

BOLT-WASHER (8X12)

90156-964-670

Unavailable

25

BOLT, HEX. (8X85)

90157-437-000

Unavailable

26

NUT, AXLE (10MM)

90304-GA6-003

$2.89

27

WASHER, PLAIN (8.5X22X2.3)

90509-642-000

$6.84

28

RUBBER, CONTROL BOX

90852-898-000

$4.03

29

NUT, FLANGE (8MM)

94050-08000

$1.49

30

NUT, FLANGE (10MM)

94050-10000

$1.59

31

BOLT, HEX. (8X60) This part replaces 95300-08060-00.

95301-08060-00

$1.49

32

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

32

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

33

BOLT, FLANGE (10X80) This part replaces 95800-10080-00.

95801-10080-00

$2.92

33

BOLT, FLANGE (10X80)

95801-10080-00

$2.92

34

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

34

BOLT, FLANGE (6X10) This part replaces 95900-06010-07.

95701-06010-07

$1.62
