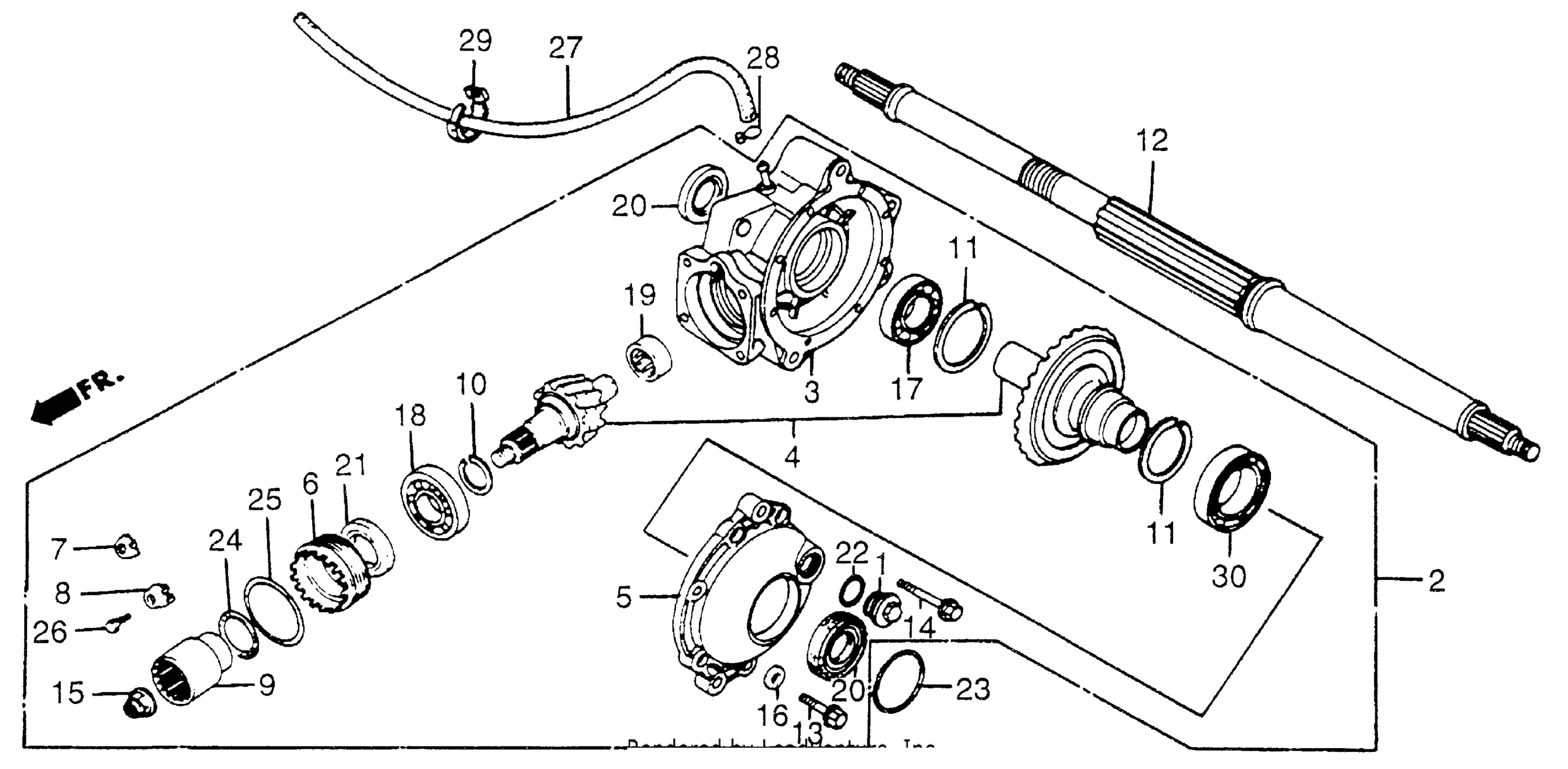

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 FINAL GEAR + REAR WHEEL AXLE Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

GEAR ASSY., FINAL

41300-VM5-000

Unavailable

3

CASE, FINAL GEAR

41301-VM5-000

Unavailable

4

GEAR SET, FINAL (NOT AVAILABLE)

41310-969-000

Unavailable

5

COVER, GEAR CASE

41321-969-000

Unavailable

6

RETAINER, BEARING (NOT AVAILABLE)

41331-ME4-000

Unavailable

7

LOCK A, BEARING ADJ.

41332-415-000

$2.51

8

LOCK B, BEARING ADJ.

41333-415-000

$2.51

9

JOINT, PINION

41410-ME4-000

Unavailable

10

SHIM A, PINION GEAR (1.32)

41450-ME4-000

Unavailable

10

SHIM B, PINION GEAR (1.38)

41451-ME4-000

Unavailable

10

SHIM C, PINION GEAR (1.44)

41452-ME4-000

Unavailable

10

SHIM D, PINION GEAR (1.50)

41453-ME4-000

Unavailable

10

SHIM E, PINION GEAR (1.56)

41454-ME4-000

Unavailable

10

SHIM F, PINION GEAR (1.62)

41455-ME4-000

Unavailable

10

SHIM G, PINION GEAR (1.68)

41456-ME4-000

Unavailable

11

SHIM B, RING GEAR (NOT AVAILABLE)

41530-969-000

Unavailable

11

SHIM C, RING GEAR

41531-969-000

Unavailable

11

SHIM D, RING GEAR (NOT AVAILABLE)

41532-969-000

Unavailable

11

SHIM E, RING GEAR

41533-969-000

Unavailable

11

SHIM F, RING GEAR

41534-969-000

Unavailable

11

SHIM G, RING GEAR (NOT AVAILABLE)

41535-969-000

Unavailable

11

SHIM H, RING GEAR

41536-969-000

Unavailable

11

SHIM I, RING GEAR (NOT AVAILABLE)

41537-969-000

Unavailable

11

SHIM J, RING GEAR

41538-969-000

Unavailable

12

AXLE, RR. WHEEL

42311-VM5-000

Unavailable

13

BOLT, SEALING (8MM)

90109-371-000

$2.58

14

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

15

NUT, HEX. (16MM)

90381-MB0-010

$6.90

16

WASHER (8MM)

90471-580-000

$2.92

17

BEARING, RADIAL BALL (6909)

91052-969-003

Unavailable

17

BEARING, RADIAL BALL (6909) This part replaces 91052-969-004.

91052-969-003

Unavailable

18

BEARING, RADIAL BALL (22X56X16)

91061-ME4-004

Unavailable

19

BEARING, NEEDLE (20X32X16)

91062-969-003

Unavailable

20

DUST SEAL (45X68X15)

91255-969-005

Unavailable

21

OIL SEAL (30X45X7)

91261-ME4-003

Unavailable

21

OIL SEAL (30X45X7) This part replaces 91261-ME4-004.

91261-ME4-003

Unavailable

22

O-RING (30.8MM)

91302-001-020

$3.75

23

O-RING (31.7X2.4)

91306-MA6-005

$3.44

23

O-RING (31.7X2.4) This part replaces 91307-958-003.

91306-MA6-005

$3.44

24

O-RING (19X1.9)

91355-ME4-003

Unavailable

24

O-RING (19X1.9) This part replaces 91355-ME4-004.

91355-ME4-003

Unavailable

25

O-RING (53.5X3.5)

91359-ME4-003

$3.80

25

O-RING (53.5X3.5) This part replaces 91359-ME4-004.

91359-ME4-003

$3.80

26

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

27

BULK HOSE, FUEL (3.5X3000) (3.5X660)

95001-35003-60M

$20.85

27

BULK HOSE, FUEL (3.5X3000) (3.5X760)

95001-35003-60M

$20.85

28

CLIP, TUBE (B7)

95002-02070

$1.80

29

BAND B1, CABLE

32161-404-000

$2.23

29

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

30

BEARING, RADIAL BALL (6009)

96100-60090-00

Unavailable
