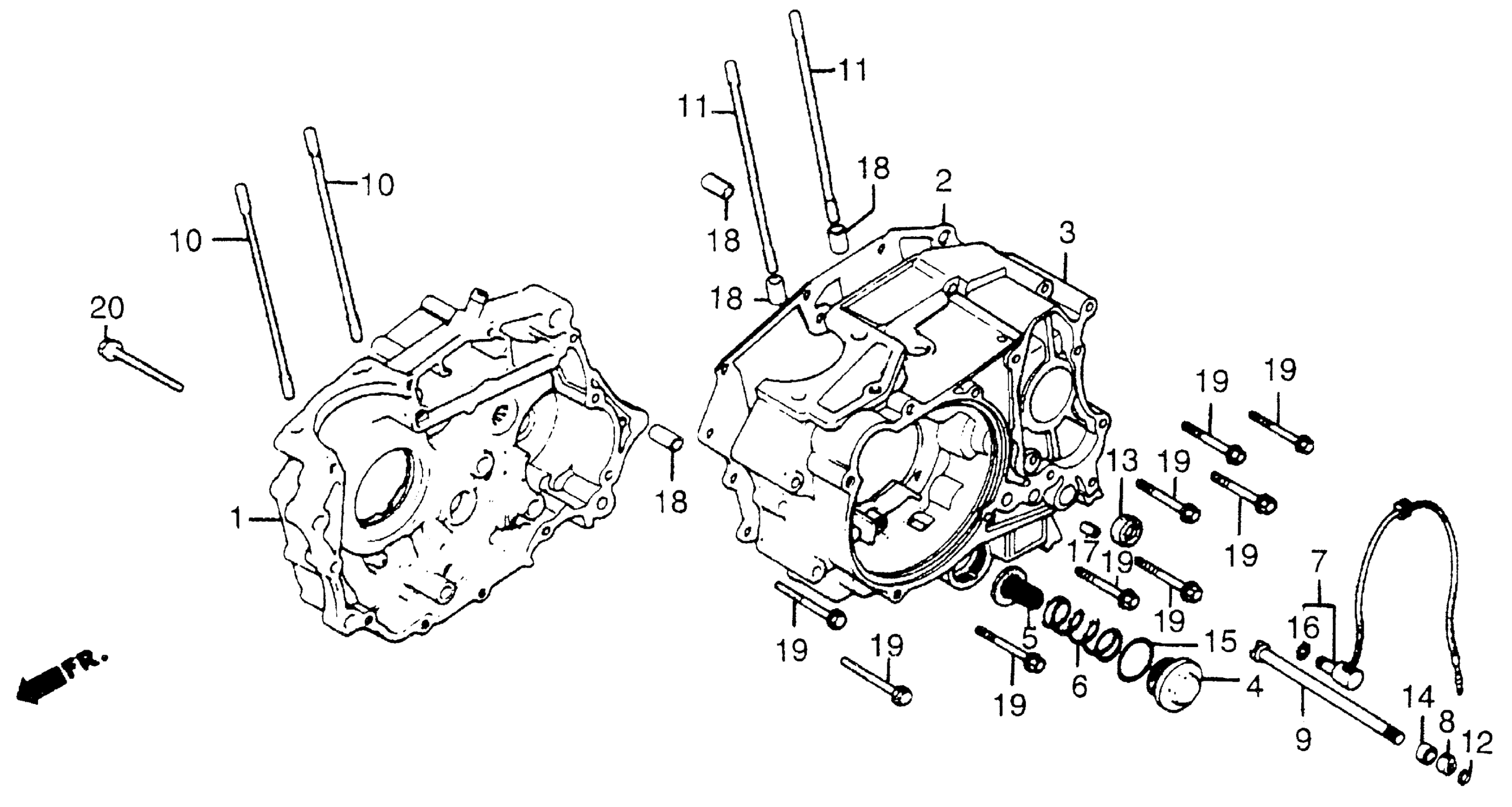

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-969-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-969-000.

11191-969-306

Unavailable

3

CRANKCASE, L.

11200-969-000

Unavailable

4

CAP, VALVE ADJ.

12361-383-000

$5.98

5

SCREEN, OIL FILTER

15421-107-000

$5.88

6

SPRING, OIL FILTER SCREEN

15426-107-000

$3.38

7

CONTACT ASSY., NEUTRAL SWITCH (NOT AVAILABLE)

35750-969-000

Unavailable

8

INDICATOR, NEUTRAL

35762-HF7-000

$3.89

8

INDICATOR, NEUTRAL This part replaces 35762-918-020.

35762-HF7-000

$3.89

9

SHAFT, NEUTRAL INDICATOR

35764-969-000

Unavailable

10

BOLT A, CYLINDER STUD

90031-427-010

Unavailable

11

BOLT B, CYLINDER STUD

90032-427-010

$9.97

12

CIRCLIP (5MM) (NOT AVAILABLE)

90601-816-000

Unavailable

13

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$2.80

14

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.80

14

OIL SEAL (8X16X6) This part replaces 91208-958-681.

91254-792-003

$2.80

14

OIL SEAL (8X16X6) This part replaces 91208-958-682.

91254-792-003

$2.80

15

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.80

16

O-RING (7X1.7)

91312-107-000

$2.90

17

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.04

18

PIN A, DOWEL (10X14)

94301-10140

$2.25

19

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$1.97

19

BOLT, FLANGE (6X50)

96001-06050-00

$1.97

20

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.48

20

BOLT, FLANGE (6X55)

96001-06055-00

$1.48
