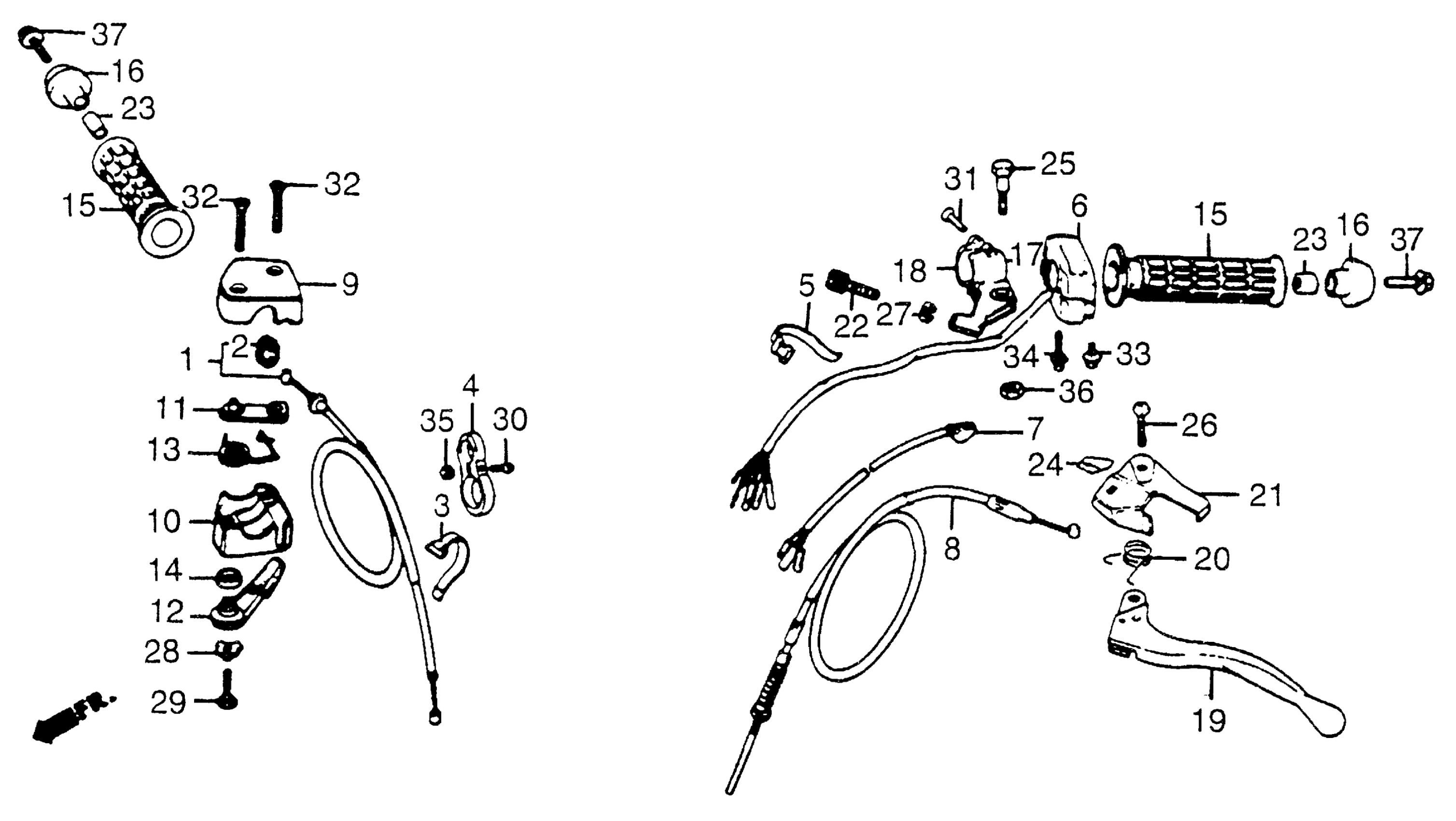

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 CONTROL LEVERS + CABLES + SWITCHES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-VM3-000

Unavailable

2

GROMMET, THROTTLE CASE (NOT AVAILABLE)

17913-958-300

Unavailable

3

BAND, THROTTLE CABLE (NOT AVAILABLE)

17914-958-010

Unavailable

4

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

17916-958-000

Unavailable

5

BAND B1, CABLE

32161-404-000

$2.23

6

SWITCH ASSY., LIGHTING & ENGINE

35200-VM5-000

Unavailable

7

SWITCH ASSY., STARTER (NOT AVAILABLE)

35250-VM5-000

Unavailable

8

CABLE, BRAKE

43460-HB7-405

Unavailable

8

CABLE, BRAKE This part replaces 43460-VM5-000.

43460-HB7-405

Unavailable

9

COVER, THROTTLE (NOT AVAILABLE)

53141-958-000

Unavailable

10

CASE, THROTTLE

53142-958-000

Unavailable

11

ARM, THROTTLE (NOT AVAILABLE)

53144-958-000

$5.87

12

CONTROL LEVER, THROTTLE

53145-957-000

Unavailable

13

SPRING, THROTTLE CONTROL LEVER

53146-943-000

Unavailable

14

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-957-003

Unavailable

15

GRIP, HANDLE

53165-958-010

$13.38

16

GUARD, HANDLEBAR END

53167-958-680

$6.40

17

BRACKET, BRAKE CONTROL LEVER (NOT AVAILABLE)

53172-VM5-000

Unavailable

18

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.95

18

HOLDER, LEVER BRACKET

53173-376-000

$10.95

19

CONTROL LEVER, L. HANDLEBAR This part replaces 53178-VM5-000.

53178-VM5-405

Unavailable

19

CONTROL LEVER, L. HANDLEBAR

53178-VM5-405

Unavailable

20

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

21

LEVER, PARKING BRAKE LOCK (NOT AVAILABLE)

53192-VM5-000

Unavailable

22

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

23

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

24

LABEL, PARKING BRAKE CONTROL LEVER (NOT AVAILABLE)

87574-968-000

Unavailable

25

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

26

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

27

NUT, FIXING

90321-315-670

$7.31

27

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

28

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-957-000

Unavailable

29

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

29

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

30

SCREW, PAN (4X20)

93500-04020-0A

$1.49

30

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$1.49

31

SCREW, PAN (5X18)

93500-05018-0A

$1.49

32

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

33

SCREW-WASHER (5X20)

93892-05020-07

$1.49

34

SCREW-WASHER (5X40)

93892-05040-07

Unavailable

35

NUT, HEX. (4MM)

94001-04000-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM)

94001-06200-0S

$1.49

37

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

37

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
