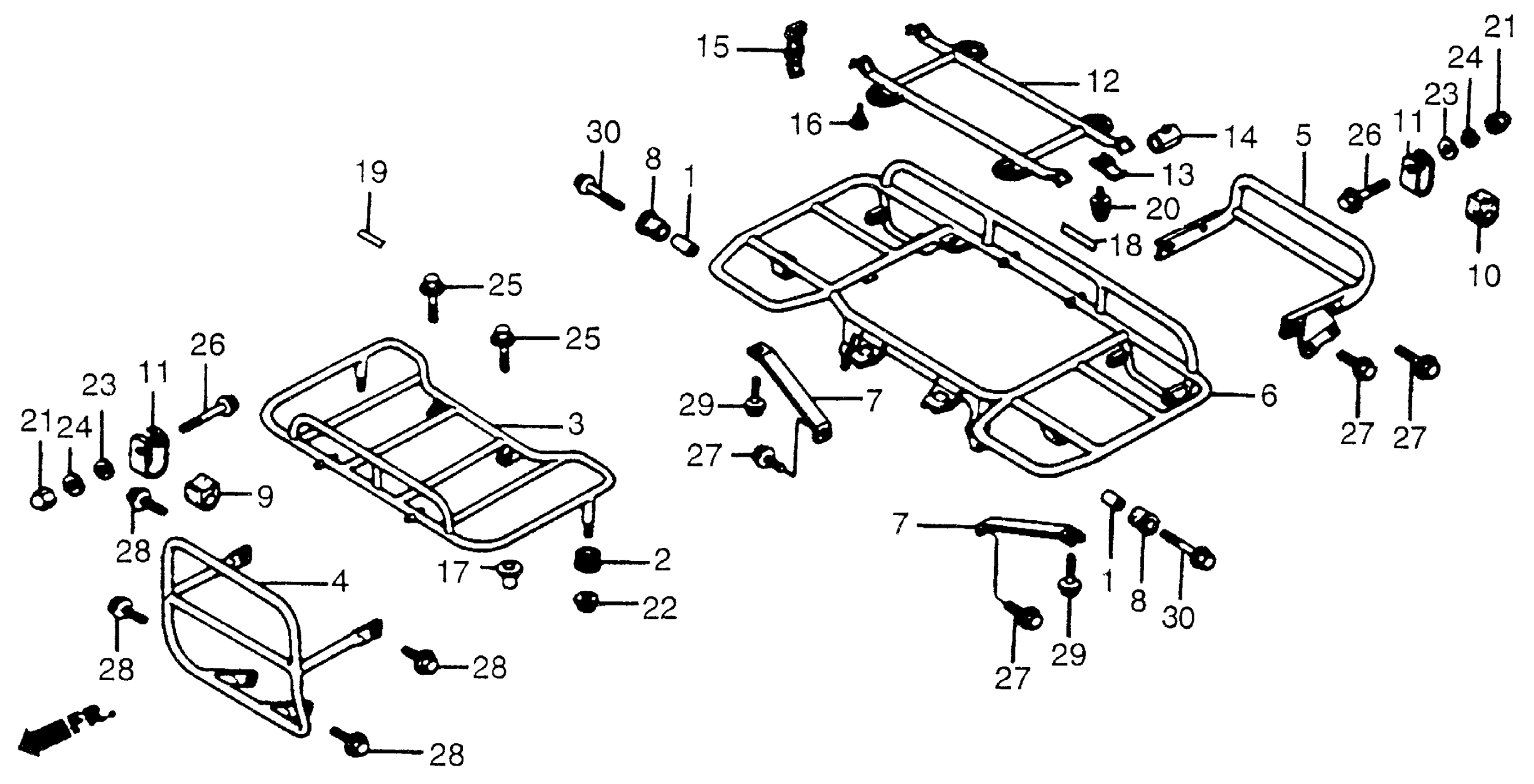

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 CARRIER Diagram

#

Description
Price

1

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.52

2

RUBBER, HEADLIGHT MOUNTING

61315-958-680

$3.14

3

CARRIER, FR.

81100-VM5-000

Unavailable

4

PIPE, FR. CARRIER (NOT AVAILABLE)

81150-VM5-010

Unavailable

5

PIPE, CARRIER (NOT AVAILABLE)

81200-VM5-000

Unavailable

6

CARRIER, RR. LUGGAGE (NOT AVAILABLE)

81300-VM5-010

Unavailable

7

SUPPORT, RR. CARRIER (NOT AVAILABLE)

81302-VM5-000

Unavailable

8

RUBBER, FR. CARRIER

81303-958-680

$3.59

9

RUBBER, FR. CARRIER (NOT AVAILABLE)

81304-VM5-000

Unavailable

10

RUBBER, RR. CARRIER

81304-958-680

Unavailable

11

BRACKET, RR. CARRIER

81305-958-680

Unavailable

12

CARRIER, LUGGAGE SUB

81306-VM5-000

Unavailable

13

BRACKET, SUB-CARRIER

81307-958-680

$7.67

14

SPACER, SUB-CARRIER

81308-958-680

$8.76

15

BAND, SUB-CARRIER

81309-958-680

$10.39

16

RUBBER, SUB-CARRIER

81310-958-680

$4.65

17

COLLAR

84706-415-000

$2.13

18

LABEL, RR. CARRIER (NOT AVAILABLE)

87509-VM5-000

Unavailable

19

LABEL, FR. CARRIER (NOT AVAILABLE)

87511-VM5-000

Unavailable

20

SCREW-WASHER (6X12)

93893-06012-00

Unavailable

21

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.65

21

NUT, CAP (6MM)

94021-06020

$1.65

21

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.65

21

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.65

22

NUT, FLANGE (6MM)

94050-06080

$0.59

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM)

94101-06800

Unavailable

24

WASHER, SPRING (6MM)

94111-06000

$0.86

25

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.48

25

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

26

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$1.97

26

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

26

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

27

BOLT, FLANGE (8X14) This part replaces 95700-08014-08.

95701-08014-08

$1.59

27

BOLT, FLANGE (8X14)

95701-08014-08

$1.59

28

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.64

28

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

29

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$0.67

29

BOLT, FLANGE (8X25)

95701-08025-08

$0.67

30

BOLT, FLANGE (8X32) This part replaces 95700-08032-08.

95701-08032-08

$2.01

30

BOLT, FLANGE (8X32)

95701-08032-08

$2.01
