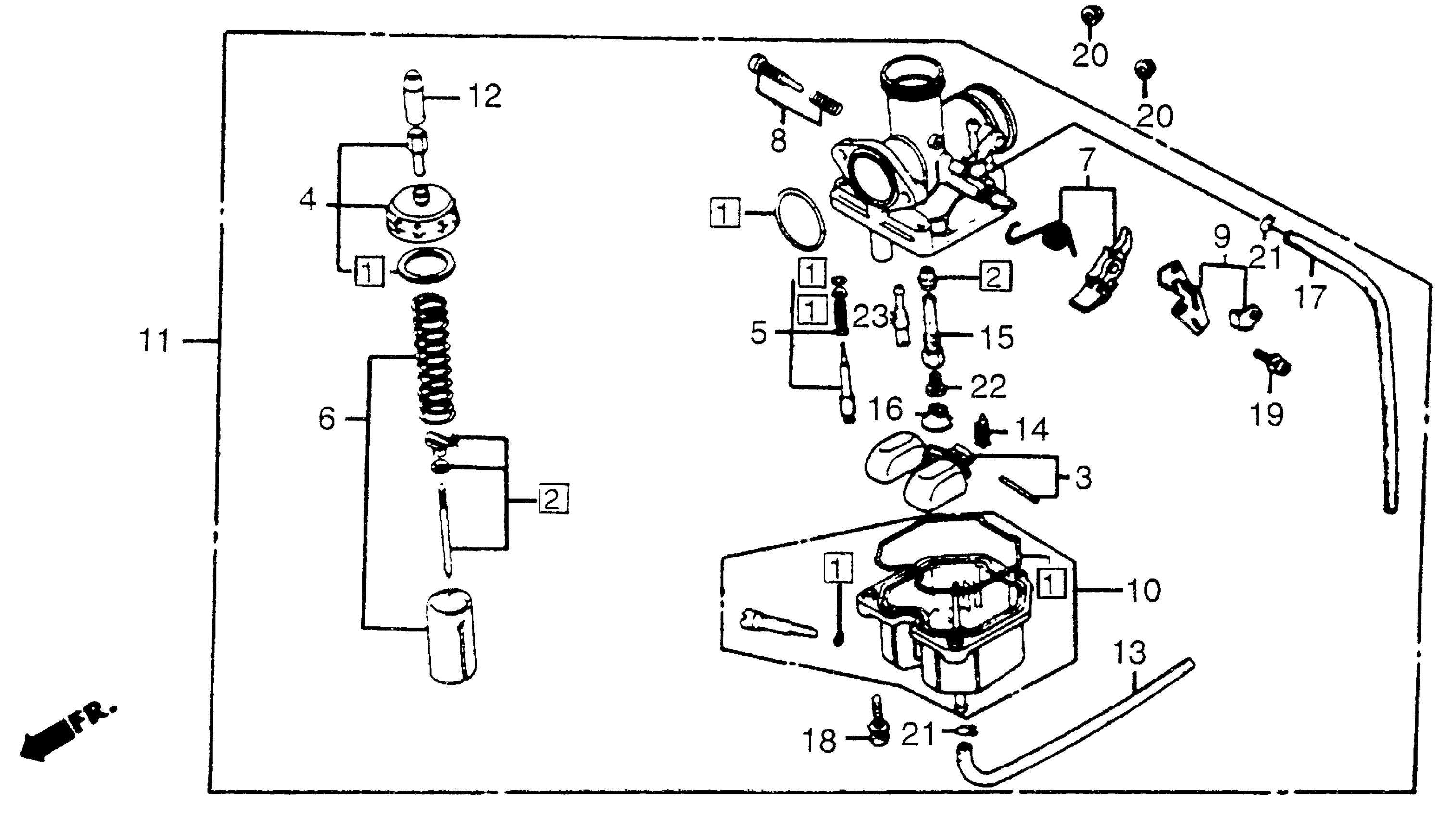

Honda TRX200A (84) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE030-EC000007 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-364-770.

16010-439-305

$21.05

1

GASKET SET

16010-439-305

$21.05

2

NEEDLE SET, JET

16012-VM5-004

Unavailable

3

FLOAT SET

16013-439-921

$76.36

4

TOP SET This part replaces 16014-364-770.

16014-397-971

Unavailable

5

SCREW SET A This part replaces 16016-385-681.

16016-402-004

$20.82

5

SCREW SET A

16016-402-004

$20.82

6

VALVE SET, THROTTLE

16022-437-722

Unavailable

7

LEVER SET, CHOKE

16025-427-004

$29.95

8

SCREW SET B

16028-KB1-D11

$5.98

8

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

9

PLATE SET, STAY This part replaces 16035-KC2-004.

16035-KEB-620

Unavailable

9

PLATE SET, STAY

16035-KEB-620

Unavailable

9

PLATE SET, STAY This part replaces 16035-324-901.

16035-KEB-620

Unavailable

10

CHAMBER SET, FLOAT

16045-399-014

Unavailable

11

CARBURETOR ASSY.

16100-VM5-004

Unavailable

12

CAP, CABLE SEALING

16118-166-004

$8.08

13

TUBE, FUEL This part replaces 16143-413-751.

16199-KG4-405

$9.49

14

VALVE, FLOAT

16155-413-751

$32.50

15

HOLDER, NEEDLE JET

16165-958-681

$29.60

16

HOLDER, JET

16168-382-014

$9.81

17

TUBE, FUEL This part replaces 16198-HB5-405.

16199-KG4-405

$9.49

17

TUBE, FUEL This part replaces 16199-355-701.

16199-KG4-405

$9.49

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

SCREW-WASHER (5X12)

93892-05012-08

$1.49

20

NUT, FLANGE (6MM)

94050-06080

$1.49

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

JET, MAIN (#98)

99101-GHB-0980

$6.40

22

JET, MAIN (#98) This part replaces 99101-393-0980.

99101-GHB-0980

$6.40

23

JET, SLOW (#35)

99103-440-0350

$13.18
