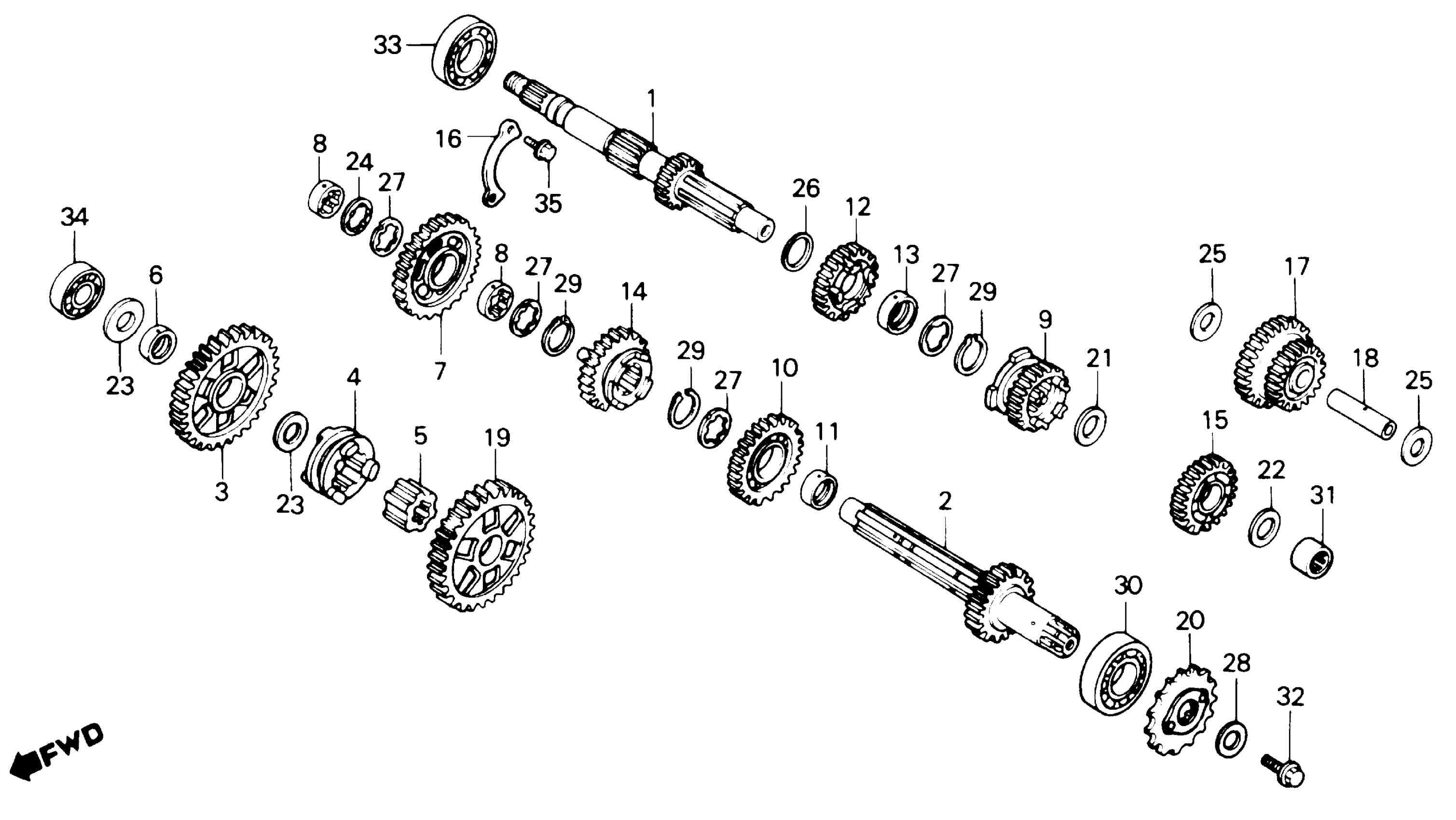

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23210-HC3-000

Unavailable

2

COUNTERSHAFT

23220-HB6-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (39T)

23411-HB6-670

Unavailable

4

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HB6-010

Unavailable

5

COLLAR, SPLINE

23413-HB6-010

Unavailable

6

BUSH, COUNTERSHAFT LOW GEAR

23414-HB6-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (35T)

23431-HB6-670

Unavailable

8

BUSH, COUNTERSHAFT SECOND GEAR

23432-HB6-000

Unavailable

9

GEAR, MAINSHAFT THIRD (M-3) (20T)

23441-HB6-672

Unavailable

10

GEAR, COUNTERSHAFT THIRD (30T)

23451-HB6-010

Unavailable

11

BUSH (20X8)

23452-HC3-000

Unavailable

12

GEAR, MAINSHAFT FOURTH (24T)

23461-HC3-010

$54.66

13

BUSH (20X10.5)

23462-HC3-000

Unavailable

14

GEAR, COUNTERSHAFT FOURTH (28T)

23471-HB6-671

$70.36

15

GEAR, MAINSHAFT FIFTH (26T)

23481-HB6-010

Unavailable

16

PLATE, BEARING SETTING

23521-HB6-000

Unavailable

17

GEAR, REVERSE IDLE (18/31T)

23721-HB6-000

Unavailable

18

SHAFT, REVERSE IDLE

23731-HC3-000

Unavailable

19

GEAR, COUNTERSHAFT REVERSE

23751-HB6-010

Unavailable

20

SPROCKET, DRIVE (12T)

23800-HB6-000

Unavailable

21

WASHER, THRUST (15MM)

90401-HB6-000

Unavailable

22

WASHER, THRUST (15X29)

90402-HB6-000

$4.15

23

WASHER, THRUST (15MM)

90412-187-000

$2.05

24

WASHER, LOCK (20MM)

90421-HB6-000

Unavailable

25

WASHER, THRUST (13X27X1)

90451-HB3-000

$3.20

26

WASHER, THRUST (20MM)

90454-107-000

$1.80

27

WASHER, SPLINE (20MM)

90461-444-000

$5.04

28

WASHER (8MM)

90465-MC4-000

$2.51

29

CIRCLIP (OUTER) (20MM)

90601-459-000

$2.92

30

BEARING, BALL (62/22) (KOYO) This part replaces 91004-KK0-003.

91004-KW3-004

$31.42

30

BEARING, BALL (62/22) (KOYO)

91004-KW3-004

$31.42

31

BEARING, NEEDLE (15MM)

91106-383-003

$32.07

32

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

32

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

33

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

34

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

35

BOLT, FLANGE (6X14)

96300-06014-00

$1.49
