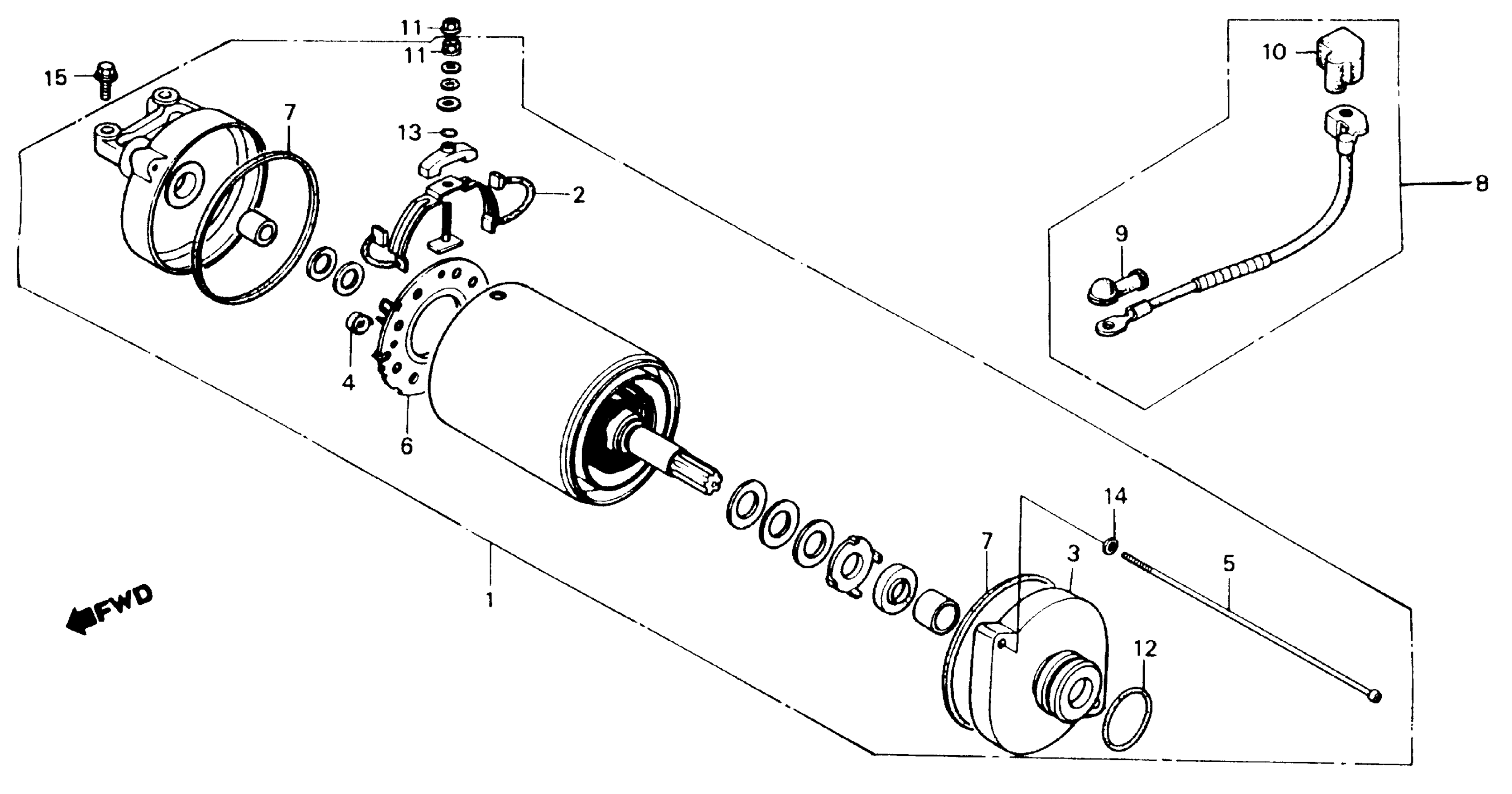

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 STARTING MOTOR Diagram

STARTER MOTOR ASSY. This part replaces 31200-HB6-670.

31200-HB6-405

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

Unavailable

BRACKET, RR.

31203-HB6-670

Unavailable

SPRING, CARBON BRUSH

31204-MA6-000

$5.29

BOLT, SETTING This part replaces 31205-KJ9-000.

31205-MN4-008

$5.37

BOLT, SETTING

31205-MN4-008

$5.37

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-HA0-771.

31206-MM5-008

Unavailable

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

Unavailable

RING, SEAL

31207-179-711

$4.04

CABLE, STARTER MOTOR

32402-HC3-000

Unavailable

COVER, TERMINAL

32411-KG1-920

Unavailable

COVER B, MAGNETIC SWITCH

32416-HB3-000

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.91

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING

91320-MB0-000

$2.24

WASHER, SPRING (5MM)

94111-05000

$1.04

BOLT, FLANGE (6X28) This part replaces 95800-06028-00.

95801-06028-00

$1.68

BOLT, FLANGE (6X28)

95801-06028-00

$1.68
