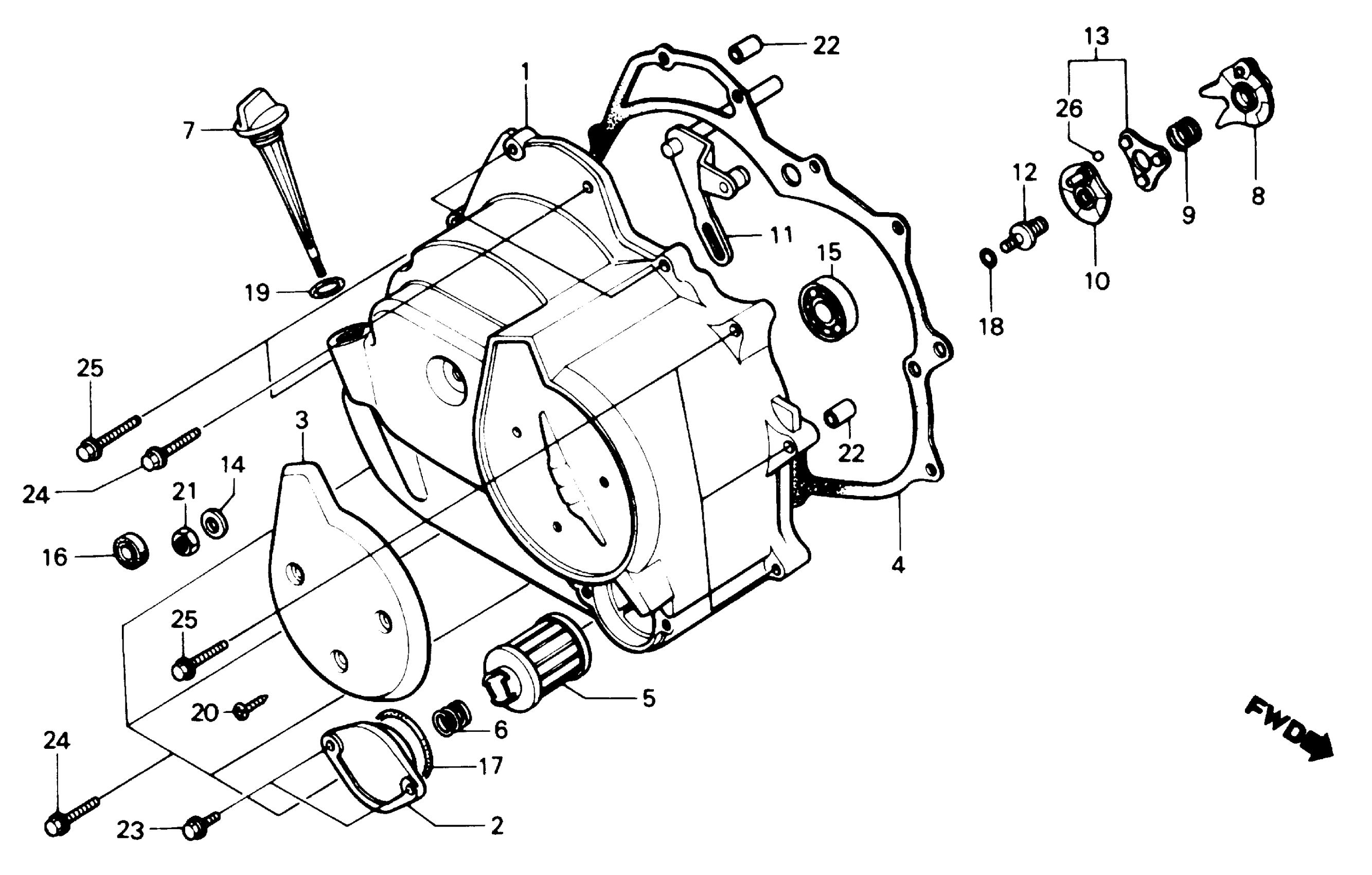

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-HB6-020

Unavailable

COVER, OIL FILTER

11333-HB6-000

Unavailable

PROTECTOR

11335-HB6-010

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11393-HB6-000.

11393-HB6-306

Unavailable

GASKET, R. CRANKCASE COVER

11393-HB6-306

Unavailable

ELEMENT, OIL FILTER (TOYO)

15412-HB6-003

$6.19

SPRING, OIL FILTER

15414-HB6-000

$5.40

DIPSTICK, OIL

15650-HC3-000

Unavailable

PLATE, CLUTCH CAM

22820-HC3-000

Unavailable

SPRING, CAM PLATE SIDE

22825-HB3-003

$2.57

PLATE, CLUTCH LIFTER

22830-HB6-000

$21.17

SUB-LEVER, CLUTCH LIFTER

22840-HC3-000

Unavailable

BOLT, CLUTCH ADJUSTING

22846-HB3-000

$6.07

RETAINER, BALL

22860-HB3-000

$7.81

WASHER (8MM)

90485-040-000

$1.77

BEARING, RADIAL BALL (6201U)

91009-HB6-004

Unavailable

OIL SEAL (9X18X5)

91204-HB3-004

$3.92

O-RING (2.6X38.6) This part replaces 91302-HB6-000.

91302-HB6-003

$4.59

O-RING (2.6X38.6)

91302-HB6-003

$4.59

O-RING (2.6X38.6) This part replaces 91302-HB6-005.

91302-HB6-003

$4.59

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

SCREW, TAPPING (6X16)

93901-36280

Unavailable

NUT, HEX. (8MM)

94030-08000

$1.49

PIN A, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BALL, STEEL (#11) (11/32)

96211-11000

$1.49
