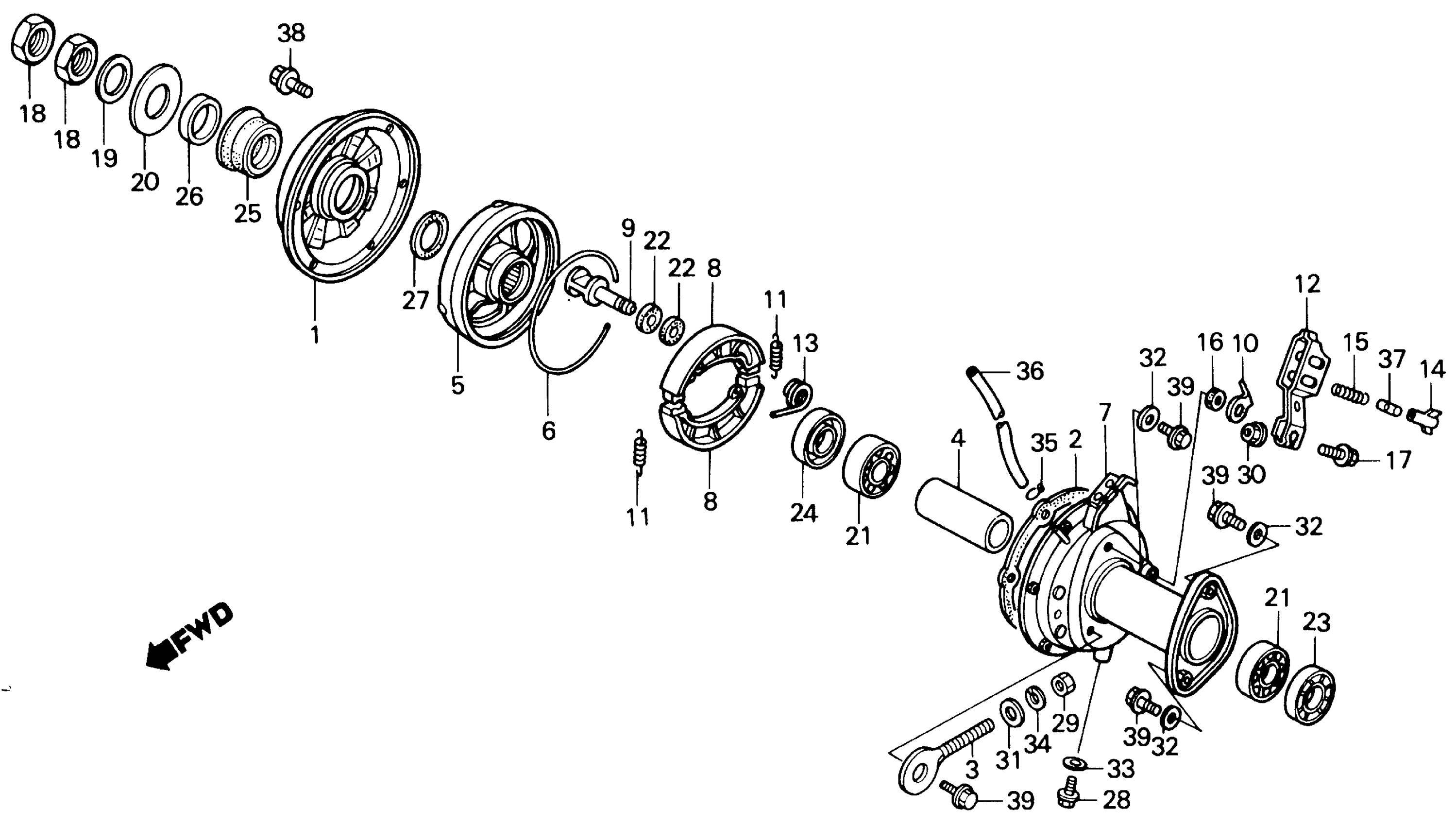

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 REAR BRAKE DRUM Diagram

#

Description
Price

NI

SHOE SET, BRAKE This part replaces 06430-HF1-911.

06430-HF7-A30

$35.03

NI

SHOE SET, BRAKE

06430-HF7-A30

$35.03

NI

SHOE SET, BRAKE This part replaces 06430-HF7-J20.

06430-HF7-A30

$35.03

NI

SHOE SET, BRAKE This part replaces 06430-HF7-000.

06430-HF7-A30

$35.03

NI

SHOE SET, BRAKE This part replaces 06430-968-405.

06430-HF7-A30

$35.03

NI

SHOE SET, BRAKE This part replaces 431A2-968-681.

06430-HF7-A30

$35.03

1

COVER, BRAKE DRUM This part replaces 40532-HB6-000.

40532-HF1-670

Unavailable

1

COVER, BRAKE DRUM

40532-HF1-670

Unavailable

2

GASKET, BRAKE COVER

40539-HC3-000

$16.72

3

ADJUSTER, CHAIN

40543-HB3-000

$9.68

4

COLLAR, RR. AXLE CENTER

42621-HC3-000

Unavailable

5

DRUM, RR. BRAKE

42622-HC3-000

$290.06

6

RING, DAMPER

42624-HB3-000

$17.00

7

HOLDER, BEARING & BRAKE

43100-HC3-000

Unavailable

8

SHOE SET, BRAKE This part replaces 43120-968-681.

06430-HF7-A30

$35.03

9

CAM, RR. BRAKE

43141-HB3-000

Unavailable

10

INDICATOR, RR. BRAKE

43145-HB3-000

$5.07

11

SPRING, RR. BRAKE SHOE

43151-329-000

$2.66

12

ARM, RR. BRAKE

43410-HB3-770

Unavailable

13

SPRING, RR. BRAKE ARM RETURN

43413-HB3-000

Unavailable

14

NUT, BRAKE ADJUSTING

43459-HM5-A10

$8.75

14

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$8.75

15

SPRING, RR. BRAKE ROD

43467-HA0-000

Unavailable

16

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

17

BOLT, FLANGE (6X30) This part replaces 90007-PA9-000.

95701-06030-08

$2.59

17

BOLT, FLANGE (6X30)

95701-06030-08

$2.59

18

NUT, AXLE

90307-HB6-000

$16.71

19

WASHER, TAPER

90481-HB6-000

$7.84

20

WASHER (31X86X1.5)

90501-HB6-000

$24.21

21

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$39.18

22

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.89

23

DUST SEAL (46X58X7)

91251-HB6-003

Unavailable

23

DUST SEAL (46X58X7) This part replaces 91251-HB6-004.

91251-HB6-003

Unavailable

24

DUST SEAL (43X58X8)

91252-HB6-000

$11.67

25

DUST SEAL (50.5X76X19)

91253-HB3-003

Unavailable

26

COLLAR, DUST SEAL (A)

91265-HB3-003

Unavailable

27

RING, SEAL

91351-HB6-003

$3.00

28

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.08

29

NUT, HEX. (8MM)

94001-08000-0S

$1.21

29

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.21

29

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.21

29

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.21

30

NUT, FLANGE (6MM)

94050-06080

$0.60

31

WASHER, PLAIN (8MM)

94101-08800

$1.74

32

WASHER, PLAIN (12MM)

94101-12800

$1.13

33

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

34

WASHER, SPRING (8MM)

94111-08800

$0.91

35

CLIP, TUBE (B7)

95002-02070

$1.62

36

BULK HOSE, VACUUM (3.5X1000) (3.5X735)

95005-35001-30M

$10.08

37

JOINT, BRAKE ARM

95015-32001

$0.87

38

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

39

BOLT, FLANGE (12X25)

95701-12025-08

$2.87
