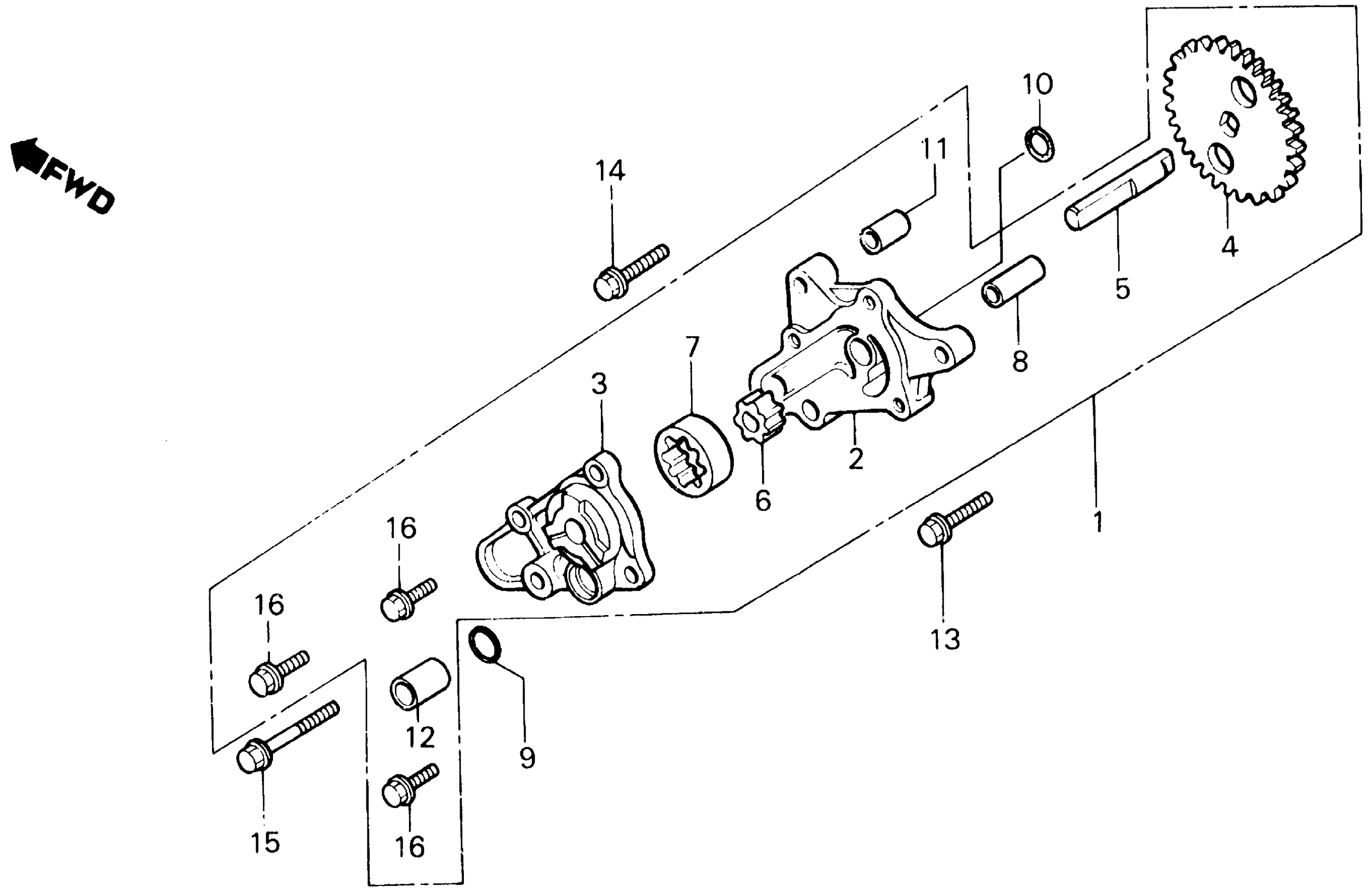

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-HB6-010

Unavailable

2

COVER, OIL PUMP

15106-HB6-010

Unavailable

3

BODY, OIL PUMP

15111-HB6-000

Unavailable

4

GEAR, OIL PUMP DRIVEN (39T)

15131-HB6-000

Unavailable

5

SHAFT, OIL PUMP

15132-HB6-000

Unavailable

6

ROTOR, OIL PUMP (INNER) (YAMADA)

15331-921-003

Unavailable

7

ROTOR, OIL PUMP (OUTER) (YAMADA)

15332-921-003

Unavailable

8

PIN, DOWEL (8X24)

90701-MG3-000

$3.80

9

GASKET, RUBBER

91303-KK0-003

$2.97

10

O-RING (11.5X2.3)

91303-679-003

$2.66

11

PIN A, DOWEL (8X14)

94301-08140

$2.25

12

PIN A, DOWEL (10X16)

94301-10160

$2.28

13

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

13

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

14

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

14

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

15

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

15

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

15

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

16

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

16

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
