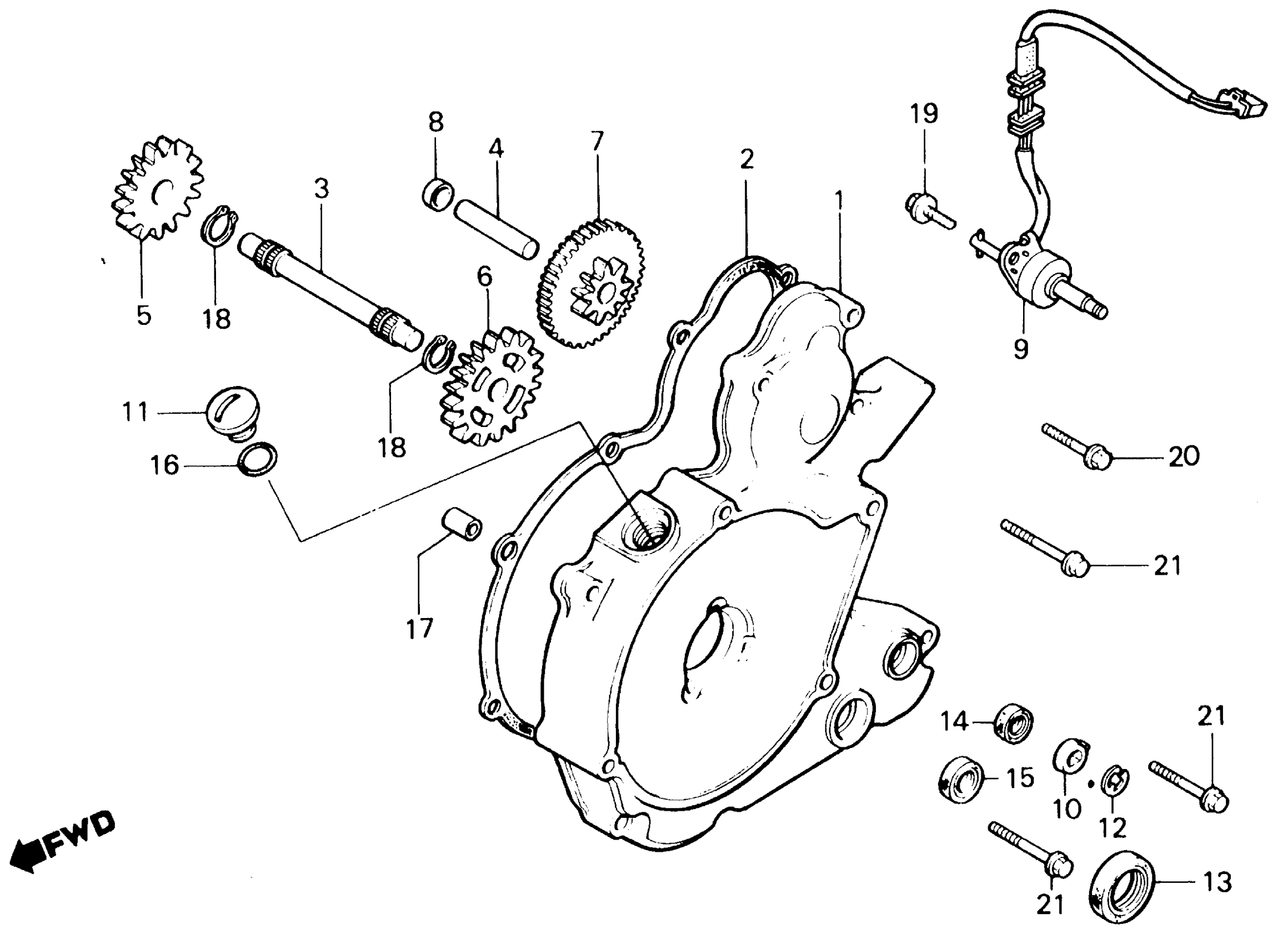

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-HB6-670

Unavailable

2

GASKET, L. COVER This part replaces 11396-HB6-000.

11396-HB6-306

Unavailable

2

GASKET, L. COVER

11396-HB6-306

Unavailable

3

SHAFT A, STARTING IDLE

28115-HB6-010

Unavailable

4

SHAFT B, STARTER IDLE

28116-HB6-000

Unavailable

5

GEAR A, STARTING IDLE (18T)

28117-HB6-000

Unavailable

6

GEAR B, STARTING IDLE (22T)

28118-HB6-000

Unavailable

7

GEAR, STARTER REDUCTION (13/53T)

28119-HB6-000

Unavailable

8

COLLAR (10X11)

28125-HC3-000

Unavailable

9

SWITCH ASSY., CHANGE (NOT AVAILABLE)

35759-HC3-000

Unavailable

10

INDICATOR, NEUTRAL

35762-HB3-000

Unavailable

11

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

11

CAP, ALTERNATOR

90084-471-000

Unavailable

12

CIRCLIP (5MM)

90605-230-000

$2.92

13

OIL SEAL (22X32X7)

91202-HB3-003

$9.96

14

OIL SEAL (9X18X5)

91204-HB3-004

$3.92

15

OIL SEAL (12X20X5)

91205-KF0-003

$3.47

16

O-RING (13.8X2.5)

91303-377-000

$3.42

17

PIN A, DOWEL (8X14)

94301-08140

$2.25

18

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

19

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

19

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

20

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

20

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

21

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

21

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
