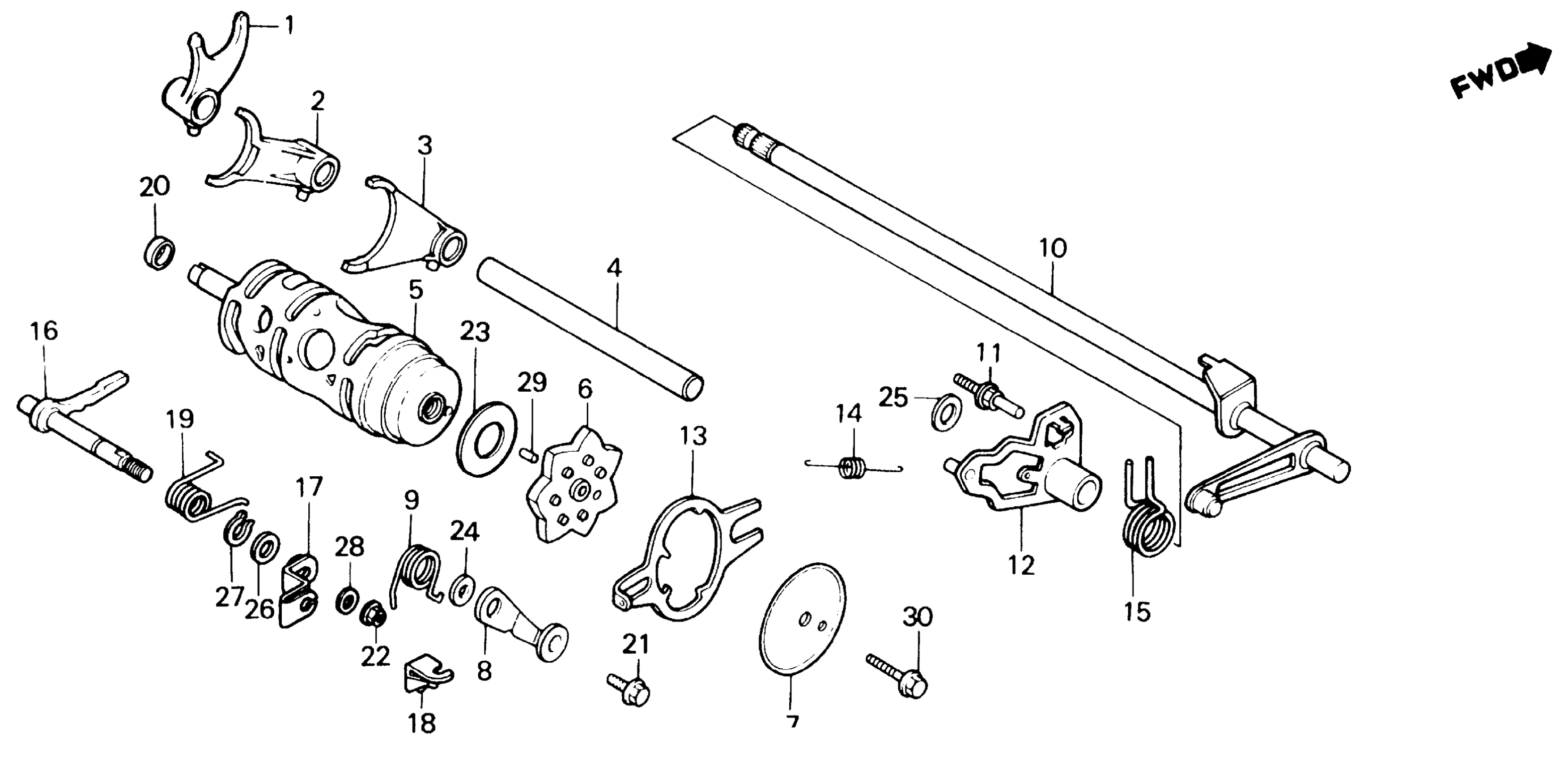

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-HB6-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-HB6-000

Unavailable

3

FORK, L. GEARSHIFT

24213-HB6-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-KCZ-000

$28.07

4

SHAFT, GEARSHIFT FORK GUIDE

24241-MC0-000

$28.07

5

DRUM, GEARSHIFT

24301-HB6-010

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB3-010.

24321-HB3-030

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB3-020.

24321-HB3-030

Unavailable

6

SHIFTER, DRUM

24321-HB3-030

Unavailable

7

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

8

STOPPER, GEARSHIFT DRUM

24430-HB6-000

Unavailable

9

SPRING, DRUM STOPPER

24436-HB6-000

Unavailable

10

SPINDLE, GEARSHIFT

24610-HB6-000

Unavailable

11

PIN, RETURN SPRING (NOT AVAILABLE)

24615-KA4-000

Unavailable

12

ARM, GEARSHIFT MASTER

24620-HB6-000

Unavailable

13

PLATE, GEARSHIFT This part replaces 24631-HB6-000.

24631-HM8-A40

$14.20

14

SPRING, SHIFT ARM

24641-HB3-004

$2.90

15

SPRING, GEARSHIFT RETURN This part replaces 24651-HB3-010.

24651-HF1-670

Unavailable

15

SPRING, GEARSHIFT RETURN

24651-HF1-670

Unavailable

16

SHAFT, REVERSE STOPPER

24860-HC3-000

Unavailable

17

LEVER, REVERSE STOPPER

24865-HC3-000

Unavailable

18

HOLDER, REVERSE WIRE

24866-HC3-000

Unavailable

19

SPRING, REVERSE STOPPER

24867-HB6-010

$4.07

20

GUIDE, CHANGE SWITCH

35760-HB6-000

Unavailable

21

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

22

NUT, U (6MM)

90301-473-003

$4.07

23

WASHER (34X42X1)

90405-HB6-000

Unavailable

24

WASHER, DRUM STOPPER

90417-360-000

$1.74

25

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

26

WASHER, THRUST (9X1)

90453-HB3-000

Unavailable

27

CIRCLIP (OUTER) (9MM) (NOT AVAILABLE)

90601-147-000

Unavailable

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

ROLLER (4X13.8)

96220-40138

$1.49

30

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
