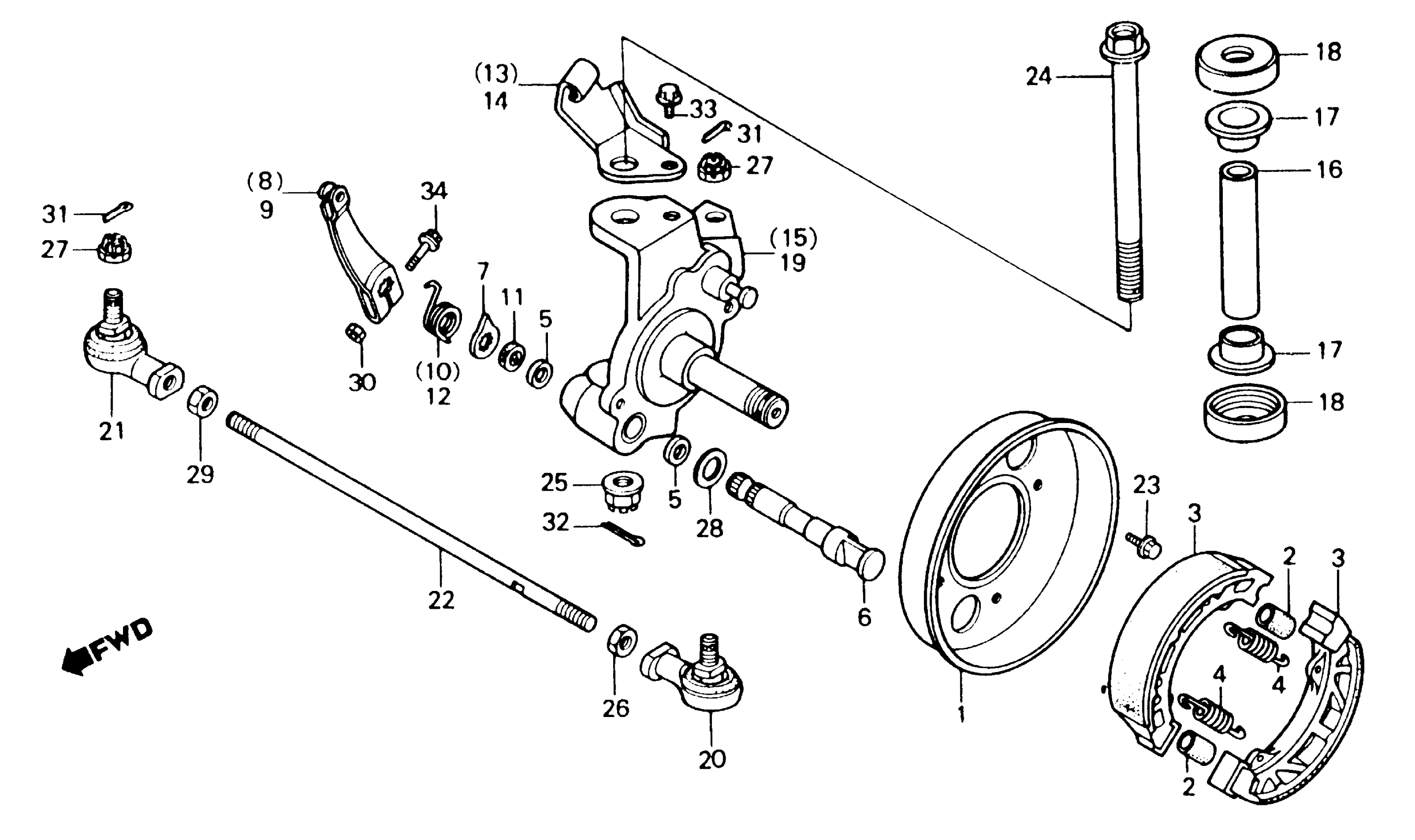

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06450-968-405

Unavailable

NI

SHOE SET, BRAKE This part replaces 451A2-968-305.

06450-968-405

Unavailable

1

PLATE, SEAL This part replaces 44650-HC3-000.

44650-HF7-000

$20.50

1

PLATE, SEAL

44650-HF7-000

$20.50

2

RUBBER, SHOE SPRING

45104-HC3-000

$1.78

3

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-968-681

Unavailable

4

SPRING, BRAKE SHOE

45133-028-000

$1.88

5

DUST SEAL, BRAKE CAM

45134-GC4-701

$4.28

6

CAM, FR. BRAKE

45141-HC3-000

Unavailable

7

INDICATOR, BRAKE

45145-HC3-000

$6.18

8

ARM, R. FR. BRAKE

45410-HC3-000

$16.76

9

ARM, L. FR. BRAKE

45420-HC3-000

$16.76

10

SPRING, R. FR. BRAKE ARM

45435-HC3-000

$6.25

11

DUST SEAL, BRAKE CAM

45437-HC3-000

$2.13

12

SPRING, L. FR. BRAKE ARM

45445-HC3-000

$6.25

13

RECEIVER, R. BRAKE CABLE

45453-HC3-000

$13.06

14

RECEIVER, L. BRAKE CABLE

45463-HC3-000

$14.06

15

KNUCKLE, R.

51210-HC3-000

$133.19

16

COLLAR, KINGPIN

51214-HC3-000

$33.58

17

BUSH, KINGPIN

51215-VM6-003

$18.27

18

CAP, DUST SEAL

51218-HC3-000

$10.44

19

KNUCKLE, L.

51220-HC3-000

$135.79

20

JOINT, BALL (RIGHT HAND THREAD)

53150-HB3-003

$63.12

21

JOINT, BALL (LEFT HAND THREAD)

53158-HB3-003

$58.78

22

TIE ROD

53521-HC3-000

Unavailable

23

BOLT, FLANGE (6X12)

90118-958-003

$3.10

24

BOLT, KINGPIN

90198-HC3-000

$17.75

25

NUT, SELF-LOCK (12MM) (SATO RASHI)

90215-SB0-003

$2.06

26

NUT, HEX. (10MM) (LEFT HAND THREAD)

90311-VM5-010

$2.80

27

NUT, CASTLE (10MM)

90320-601-000

$9.06

28

WASHER, THRUST (12.2MM)

90401-MK5-000

$2.80

29

NUT, HEX. (10MM)

94030-10200

$0.90

30

NUT, FLANGE (6MM)

94050-06080

$0.60

31

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.96

31

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.96

31

PIN, COTTER (2.5MM)

94201-25300

$0.96

32

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

32

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

32

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

32

PIN, COTTER (3.0X45)

94201-30450

$0.96

33

BOLT, FLANGE (6X10)

95701-06010-08

$1.49

34

BOLT, FLANGE (6X28)

95701-06028-08

$2.62
