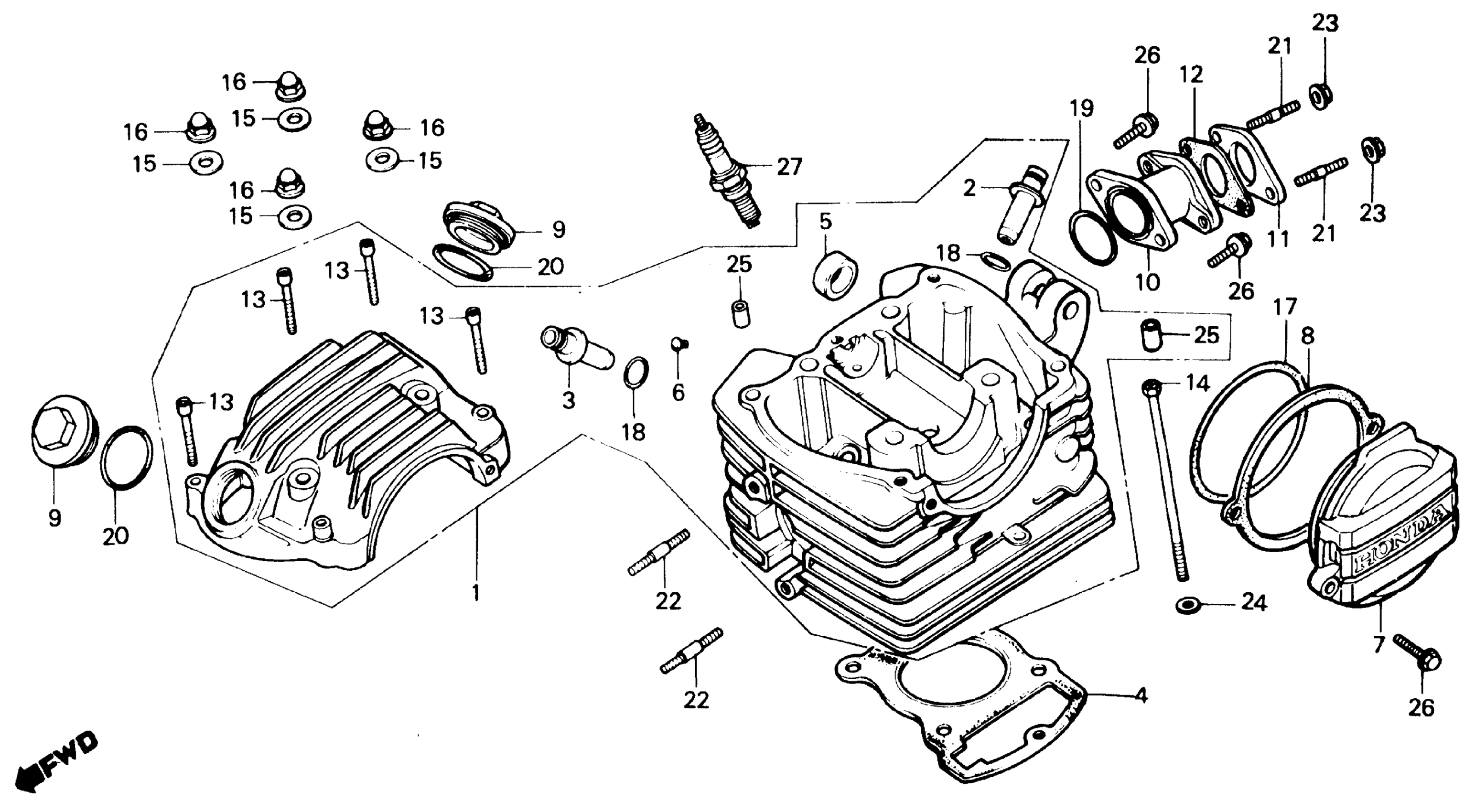

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. This part replaces 12000-HB6-000.

12000-HB6-305

Unavailable

1

CYLINDER HEAD ASSY. This part replaces 12000-HB6-010.

12000-HB6-305

Unavailable

1

CYLINDER HEAD ASSY.

12000-HB6-305

Unavailable

2

GUIDE, VALVE

12021-365-300

$11.84

3

GUIDE, EX. VALVE (OS) This part replaces 12023-437-300.

12206-KCS-305

$26.84

3

GUIDE, EX. VALVE (OS)

12206-KCS-305

$26.84

4

GASKET, CYLINDER HEAD This part replaces 12251-HB6-000.

12251-HB6-405

Unavailable

4

GASKET, CYLINDER HEAD

12251-HB6-405

Unavailable

4

GASKET, CYLINDER HEAD (OS 0.75, 1.00) | (Optional). This part replaces 12255-HB6-305.

12255-HB6-405

Unavailable

4

GASKET, CYLINDER HEAD (OS 0.75, 1.00) | (Optional).

12255-HB6-405

Unavailable

5

BUSH, CAMSHAFT

12260-958-000

$41.85

6

RUBBER, OIL SEAL

12271-383-000

$2.92

7

COVER, R. CYLINDER HEAD SIDE

12331-HB6-000

Unavailable

8

GASKET This part replaces 12339-KT0-710.

12339-KT0-712

$7.04

8

GASKET This part replaces 12339-437-003.

12339-KT0-712

$7.04

8

GASKET This part replaces 12339-437-306.

12339-KT0-712

$7.04

9

CAP, VALVE ADJ.

12361-383-000

$6.43

10

PIPE, INLET

16210-HB6-010

Unavailable

11

INSULATOR, CARBURETOR This part replaces 16211-943-000.

16211-943-306

$6.39

11

INSULATOR, CARBURETOR

16211-943-306

$6.39

12

GASKET, CARBURETOR This part replaces 16212-943-000.

16212-943-306

$3.48

12

GASKET, CARBURETOR

16212-943-306

$3.48

13

BOLT, SOCKET (6MM) | Use up to Engine SN 5035956

90081-383-000

$5.66

13

BOLT, FLANGE (6X35) | Use from Engine SN 5035957

96001-06035-00

$1.49

14

BOLT (6X116)

90081-427-000

Unavailable

15

WASHER, SEALING (8MM)

90442-028-000

$1.77

16

NUT, CAP (8MM)

90443-107-000

$2.89

17

O-RING (75X2.5)

91301-107-000

$4.87

18

O-RING (10X1.6)

91301-200-000

$3.01

19

O-RING (29.5X3)

91301-401-000

$3.53

20

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

21

BOLT 2, STUD (6X20)

92900-06020-0B

$1.72

22

BOLT 2, STUD (6X20)

92900-06020-0E

$2.40

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

PIN A, DOWEL (8X14)

94301-08140

$2.25

26

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

26

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

27

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

27

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

27

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54
