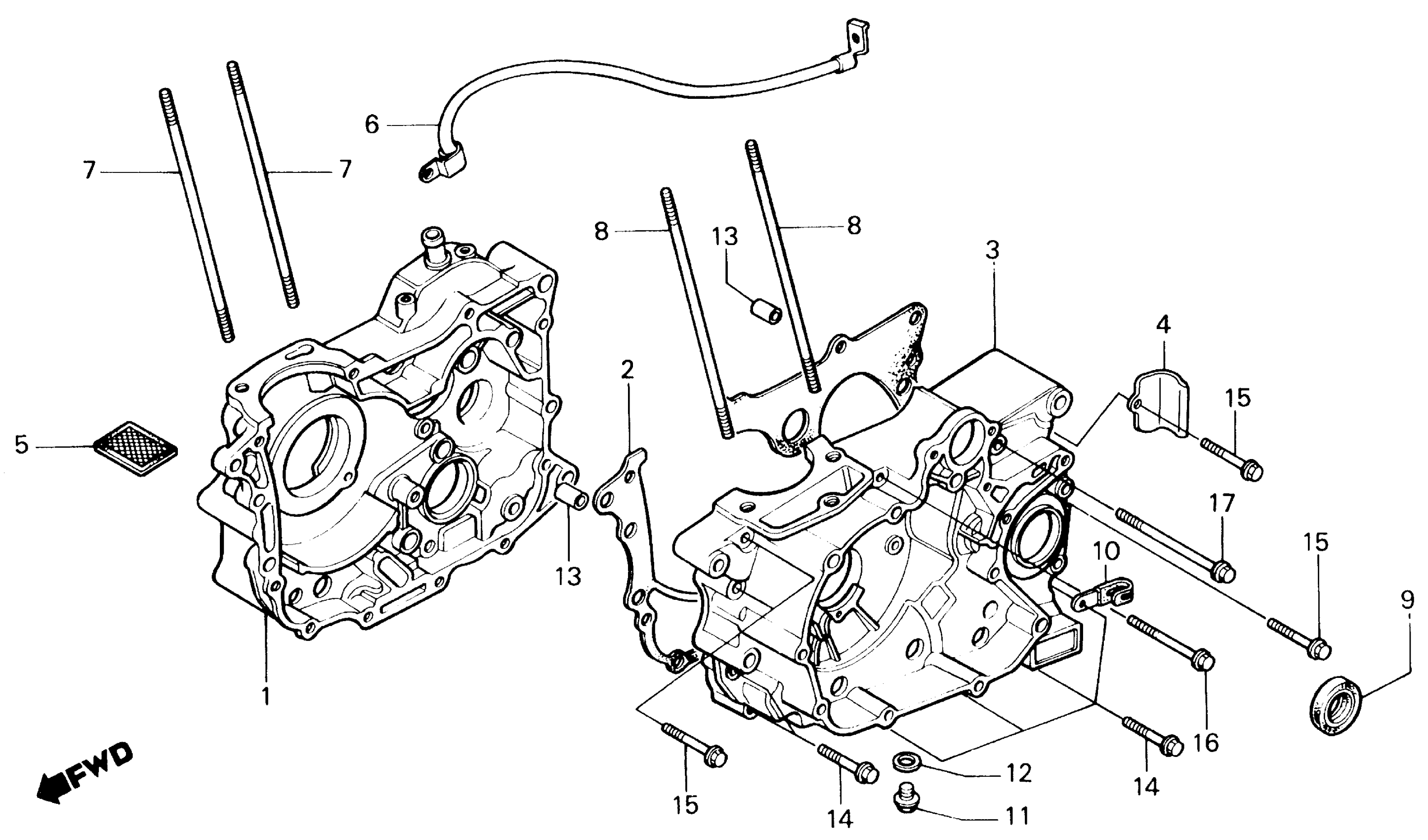

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 CRANKCASE Diagram

CRANKCASE, R.

11100-HB6-010

Unavailable

GASKET, CRANKCASE This part replaces 11191-HB6-010.

11191-HB6-306

Unavailable

GASKET, CRANKCASE

11191-HB6-306

Unavailable

CRANKCASE, L.

11200-HB6-000

Unavailable

CLIP, BREATHER TUBE

11207-HC3-000

Unavailable

SCREEN, OIL FILTER

15421-HB6-000

Unavailable

CABLE, BATTERY GROUND

32601-HC3-000

Unavailable

BOLT A, CYLINDER STUD

90031-427-010

Unavailable

BOLT B, CYLINDER STUD

90032-427-010

$10.95

OIL SEAL (22X36X6)

91206-HB3-003

$8.98

CLIP, CABLE

91405-671-000

$9.00

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28

PIN A, DOWEL (10X14) | Use from Engine SN 5036429 This part replaces 90703-HC4-000.

94301-10140

$2.28

BOLT, FLANGE (6X40)

96300-06040-00

$2.00

BOLT, FLANGE (6X50)

96300-06050-00

Unavailable

BOLT, FLANGE (6X80)

96300-06080-00

Unavailable

BOLT, FLANGE (6X110)

96300-06110-00

Unavailable
