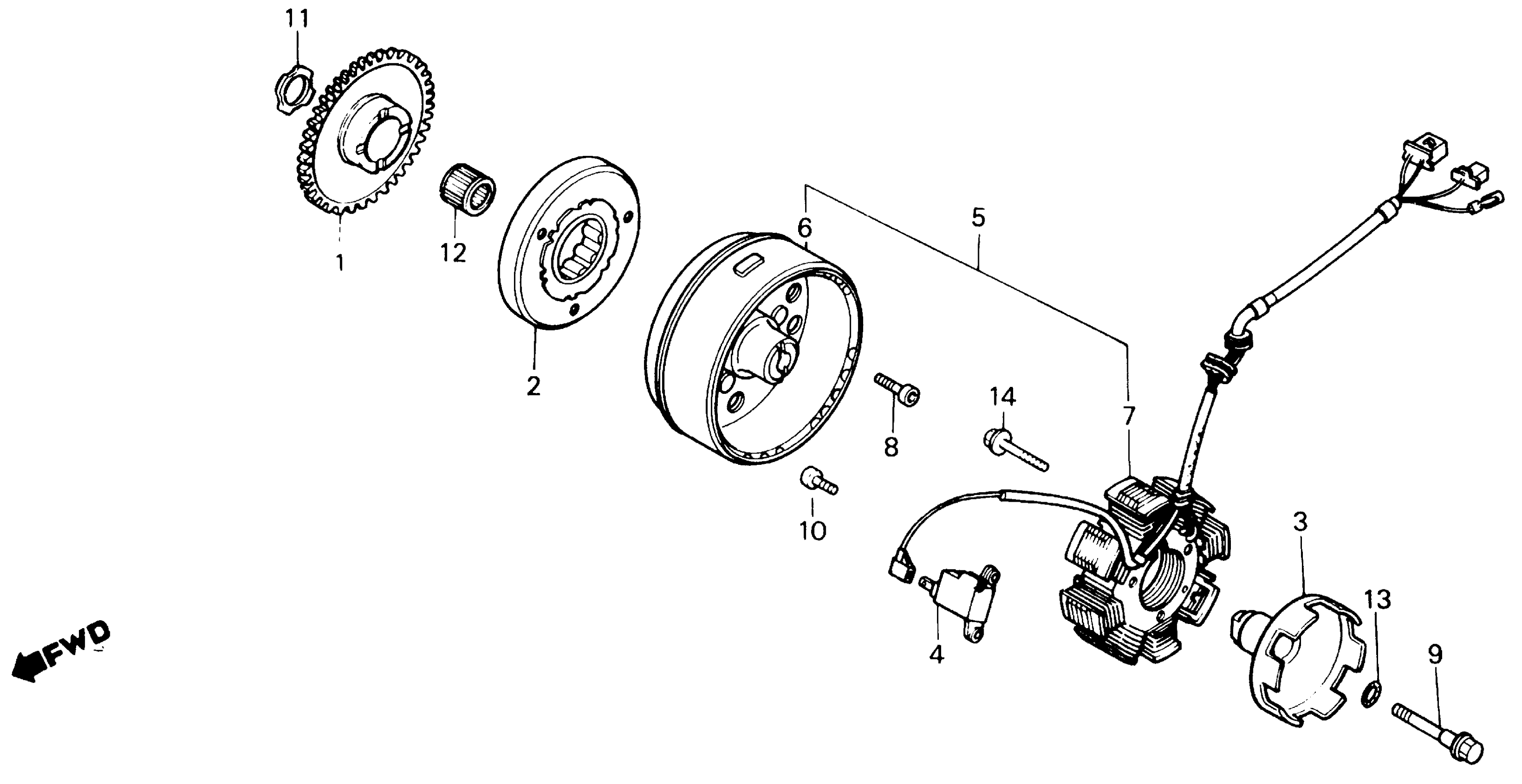

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 ALTERNATOR Diagram

#

Description
Price

1

GEAR, STARTING DRIVEN

28110-HC3-000

Unavailable

2

CLUTCH, STARTING (OUTER) This part replaces 28120-HC3-005.

28125-HC3-016

Unavailable

2

CLUTCH, STARTING (OUTER)

28125-HC3-016

Unavailable

3

PULLEY, RECOIL

28430-HB6-000

Unavailable

4

GENERATOR ASSY., PULSE (TEC) This part replaces 30300-HA0-013.

30300-HA0-033

$40.74

4

GENERATOR ASSY., PULSE (TEC) This part replaces 30300-HA0-023.

30300-HA0-033

$40.74

4

GENERATOR, PULSE (TOYO)

30300-HA0-033

$40.74

5

ALTERNATOR ASSY., FLYWHEEL TYPE (MITSUBA)

31100-HC3-003

Unavailable

5

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE)

31100-HC3-004

Unavailable

6

FLYWHEEL (MITSUBA) (NOT AVAILABLE)

31110-HC3-003

Unavailable

6

FLYWHEEL (DENSO)

31110-HC3-004

Unavailable

7

STATOR (MITSUBA) (NOT AVAILABLE)

31120-HC3-003

Unavailable

7

STATOR (DENSO) (NOT AVAILABLE)

31120-HC3-004

Unavailable

8

BOLT, SOCKET (8X18)

90010-KM1-000

$5.25

9

BOLT, SPECIAL (8MM)

90081-HB3-000

Unavailable

10

BOLT, SOCKET (5X14)

90089-HB3-000

$3.31

11

WASHER, THRUST

90403-HB6-000

Unavailable

12

BEARING, NEEDLE (20x26x17) (TOYO)

91021-689-902

Unavailable

13

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

14

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

14

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
