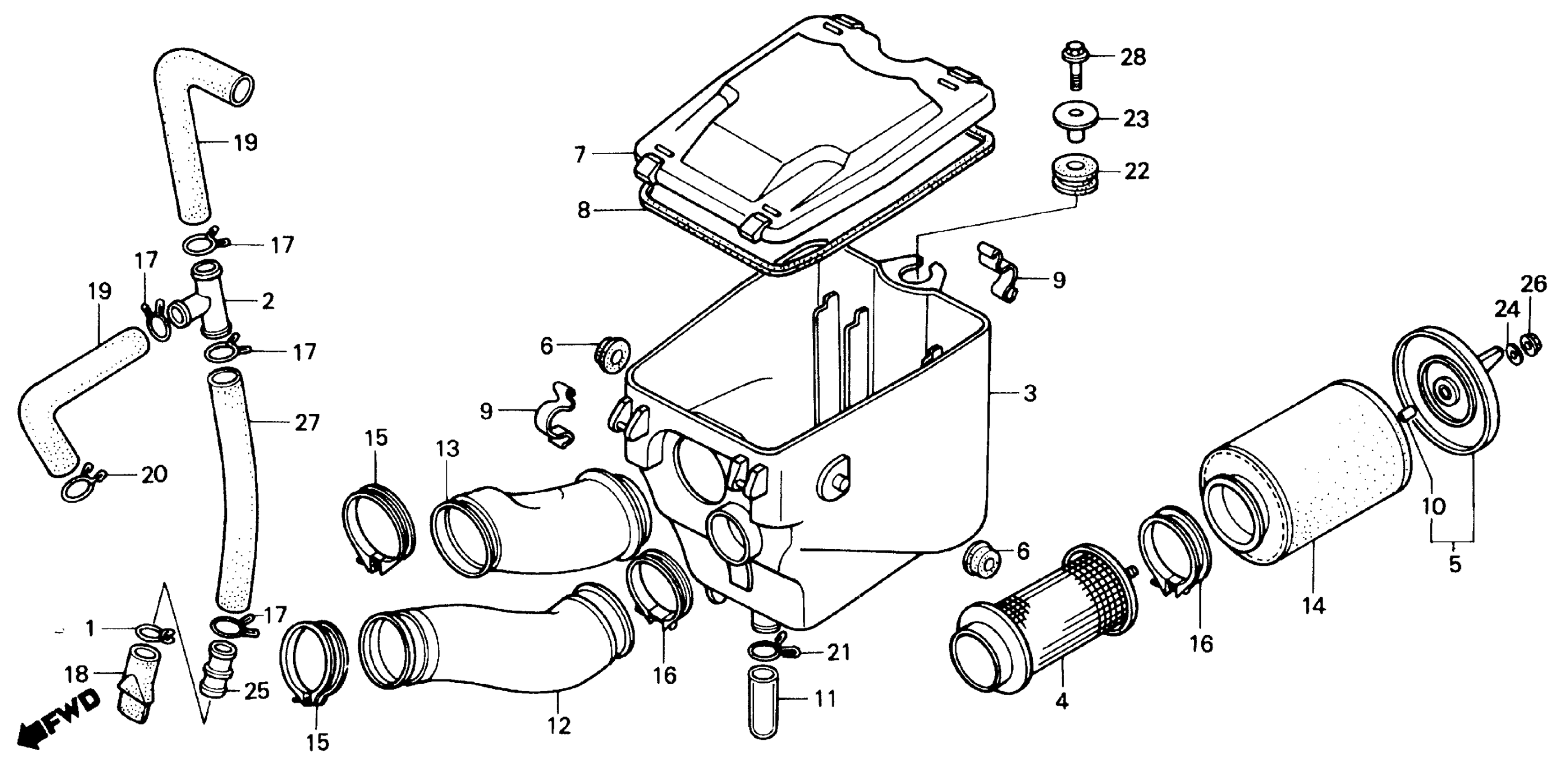

Honda TRX125A (88) FOURTRAX 125, JPN, VIN# JH3TE050-JK300001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

JOINT, BREATHER THREE-WAY

15772-376-000

$19.49

3

HOUSING, AIR CLEANER

17210-HB6-670

Unavailable

4

BODY, AIR CLEANER

17211-HB3-770

Unavailable

5

PLATE, RR.

17212-HB3-000

Unavailable

6

RUBBER, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

17216-HA5-000

Unavailable

7

LID, AIR CLEANER HOUSING

17217-HB3-000

Unavailable

8

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER This part replaces 17212-KJ9-000.

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER This part replaces 17219-HB3-000.

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER This part replaces 17231-MB2-000.

17222-MN4-405

$7.31

9

SPRING, AIR CLEANER LID SETTING

17223-HB3-003

$7.88

10

COLLAR

17223-MG3-300

Unavailable

11

TUBE, AIR CLEANER DRAIN This part replaces 17224-HB3-000.

17224-HM5-930

$10.85

11

TUBE, AIR CLEANER DRAIN

17224-HM5-930

$10.85

12

TUBE, AIR CLEANER IN. (NOT AVAILABLE)

17251-HC3-000

Unavailable

13

TUBE, AIR CLEANER CONNECTING

17253-HB6-010

Unavailable

14

ELEMENT, AIR CLEANER

17254-HB3-770

$20.45

15

BAND, AIR CLEANER CONNECTING

17255-HC3-003

Unavailable

16

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-KV7-670.

95018-56200

$9.55

16

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17258-HB3-000.

95018-56200

$9.55

16

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

16

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

17

CLIP, BREATHER TUBE

17316-611-000

$9.23

18

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.94

18

TUBE, DRAIN

17358-HM8-000

$4.94

19

TUBE, BREATHER

17562-HC3-000

Unavailable

20

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

21

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

22

RUBBER, FR. FENDER SETTING

61103-430-000

$3.67

23

COLLAR, FENDER SETTING

61104-444-000

$7.61

24

WASHER (7X2.5)

90557-GE9-000

Unavailable

25

JOINT, TUBE

91463-393-780

$1.80

26

NUT, HEX. (6MM)

94002-06080-0S

$1.49

27

BULK HOSE, VACUUM (12X1000) (12X225)

95005-12001-20M

$34.11

28

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
